Easy DIY Lawn Chair & Table

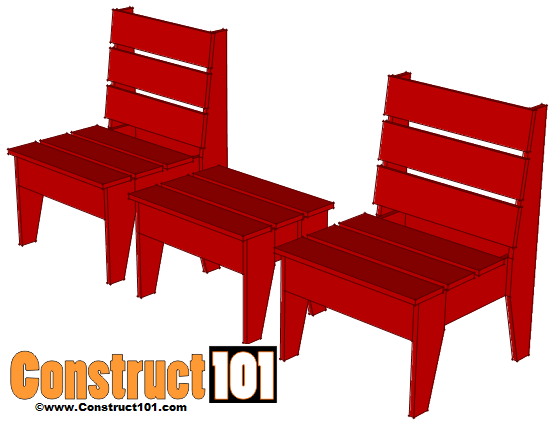

Here are some plans for some easy to build lawn chair and matching table. This chair and table will be great in any outdoor area, deck, patio, lawn, or garden.

This  DIY lawn chair and table plans are designed to be easy and fast to build. The outdoor chair and table are built using 1×6 lumber. Plans include a shopping list, cutting list, and step-by-step illustrated instructions.

Easy DIY Lawn Chair & Table – Overview

Easy DIY Lawn Chair & Table – Material List

Shopping List

Shopping List

Shopping List for One Chair

3-1×6 – 10′

1 1/2″ deck screws

Cutting List

Cutting List

2 – 1×6 – 1′ 10″

2 – 1×6 – 1′ 11 13/16″

6 – 1×6 – 2′

2 – 1×6 – 1′ 4″

2 – 1×6 – 3′

Easy Lawn Chair & Table Step 1

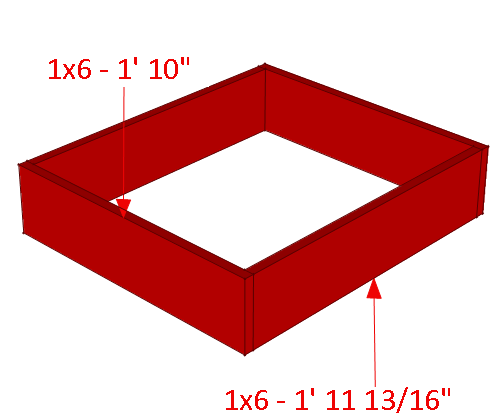

Cut two 1×6’s to 1′ 10″ and two 1×6’s to 1′ 11 13/16″. Assemble as shown on illustration above using 1 1/2″ deck screws.

Easy Lawn Chair & Table Step 2

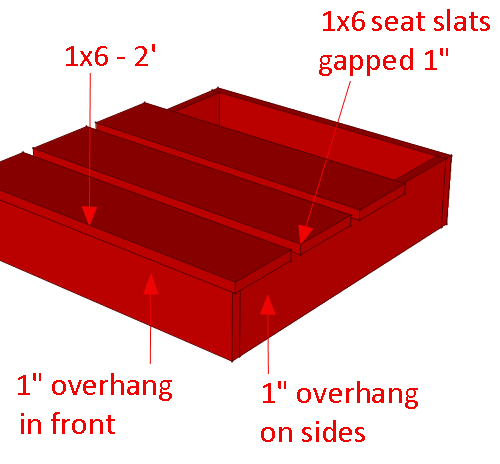

Cut three 1×6’s to 2′ and assemble as shown above using 1/2″ deck screws. There will be a 1″ overhang on the front and sides. The 1×6 seat slats will have a 1″ gap between each board.

Easy Lawn Chair & Table Step 3

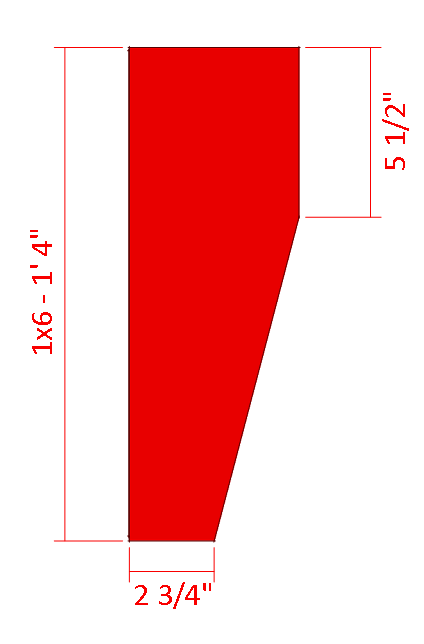

Cut two 1×6’s to 1′ 4″ for the front legs. Cut out the pattern for the front legs as shown on illustration above.

Easy Lawn Chair & Table Step 4

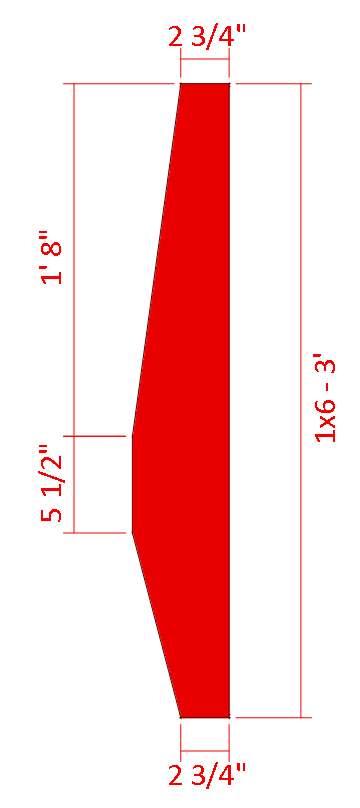

Cut two 1×6’s to 3′ for the back legs. Cut out the pattern for the back legs as shown on illustration above.

Easy Lawn Chair & Table

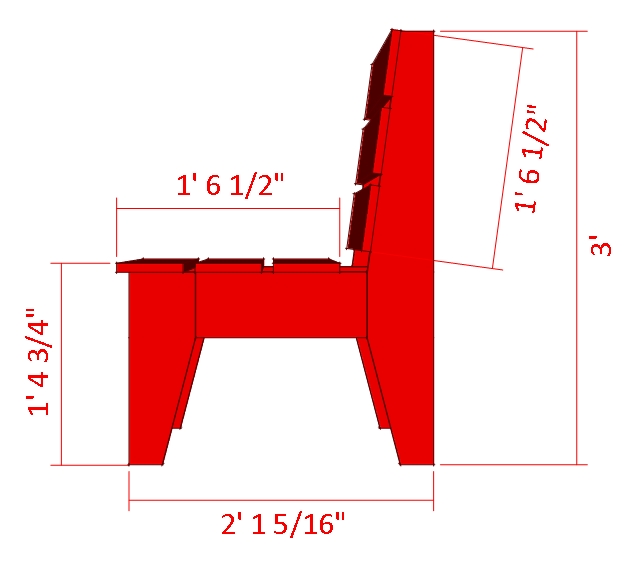

Assemble the legs as shown above using 1 1/2″ deck screws. Next cut three 1×6’s to 2′ for the chair back rest, and assemble as shown on illustration above using 1 1/2″ deck screws.

Table Material List

Shopping List

Shopping List

2 – 1×6 – 10′

1 1/2″ deck screws

Cutting List

Cutting List

3 – 1×6 – 2′

2 – 1×6 – 1′ 10″

2 – 1×6 – 1′ 3″

4 – 1×6 – 1′ 4″

Building the Table

Easy Lawn Chair & Table Building the Table

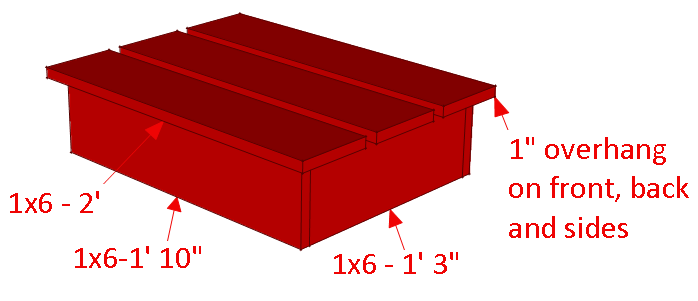

Cut three 1×6’s to 2′, two 1×6’s to 1′ 10″, and two 1×6’s to 1′ 3″ assemble as shown on illustration above using 1 1/2″ deck screws.

Easy Lawn Chair & Table Table Assembly

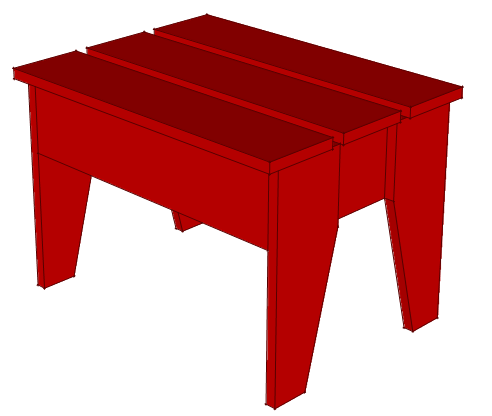

Cut four 1×6 to 1′ 4″ for the table legs. The table legs will be the same as the front chair legs, see details for the front chair legs above.

Easy Lawn Chair & Table Plans

Like these lawn chair and table plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.
Construct101 offers free online version plans. These free plans also have a free print friendly PDF downloadable version free of ads. Click here to download.
