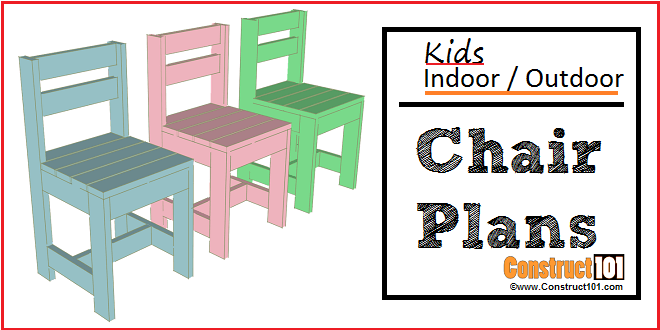

Kids Indoor / Outdoor Chair Plans

Build it yourself project for kids chair plans. This chair can be used indoors or outdoor. Plans include shopping list, cutting list, and illustrated instructions.

Kids Indoor / Outdoor Chair Plans – Material List

Shopping List

Shopping List

4 – 1×3 – 8′

1 1/4″ pocket screws

1 1/4″ deck screws

wood glue

Cutting List

Cutting List

4 – 1×3 – 26″

4 – 1×3 – 14″

6 – 1×3 – 8 1/2″

2 – 1×3 – 12″

6 – 1×3 – 11″

4 – 1×3 – 12 1/2″

Pre-drill all holes and use wood glue for better results.

Kids Indoor / Outdoor Chair Plans – Overview

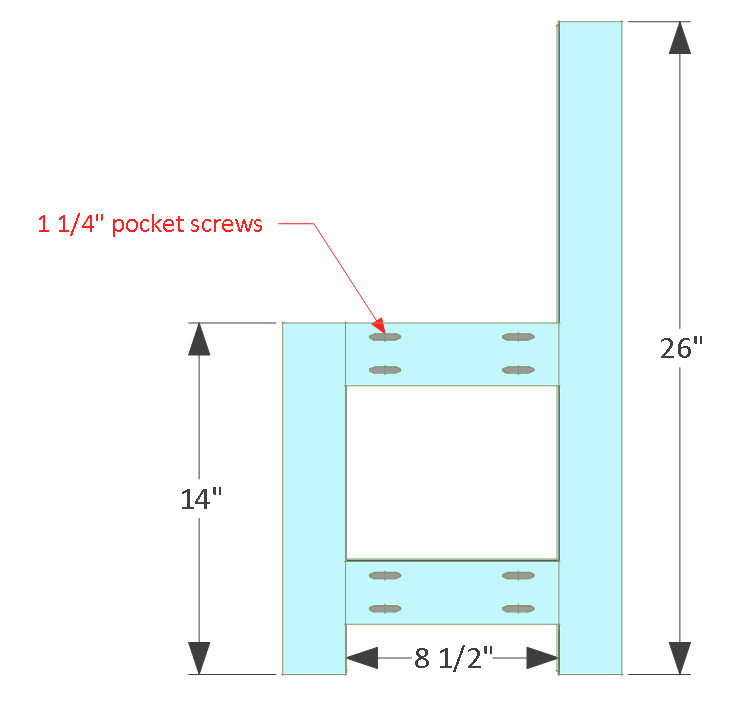

kids indoor outdoor chair plans sides

Cut two 1×3’s to 26″ long, two 1×3’s to 14″ long, and four 1×3’s to 8 1/4″ long. Assemble as shown on illustration above using 1 1/4″ pocket screws.

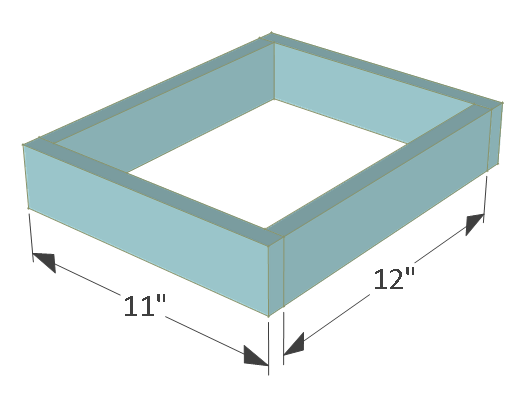

kids indoor outdoor chair plans seat frame

Cut two 1×3’s to 12″ long and two 1×3’s to 11″ long. Assemble as shown on illustration above using 1 1/4″ deck screws.

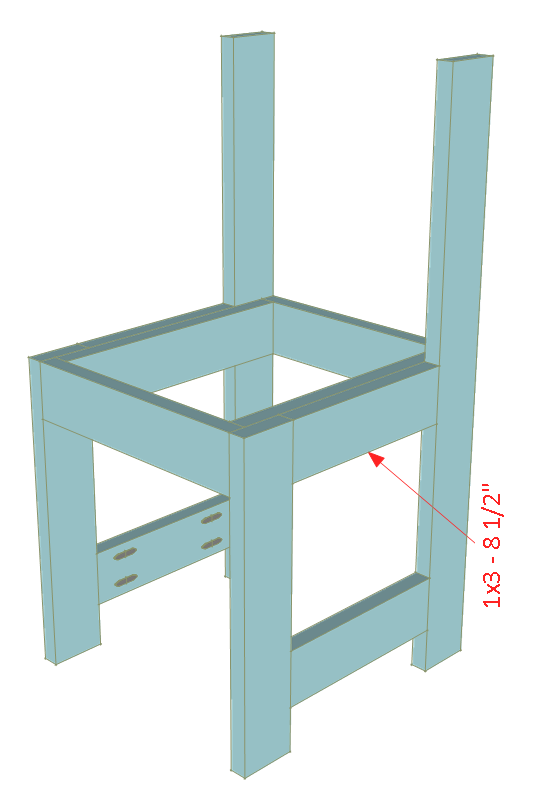

kids chair plans attach sides



Attach the sides to the frame as shown above. Cut two 1×3’s to 8 1/2″ long and attach as shown on illustration above using 1 1/4″ deck screws.

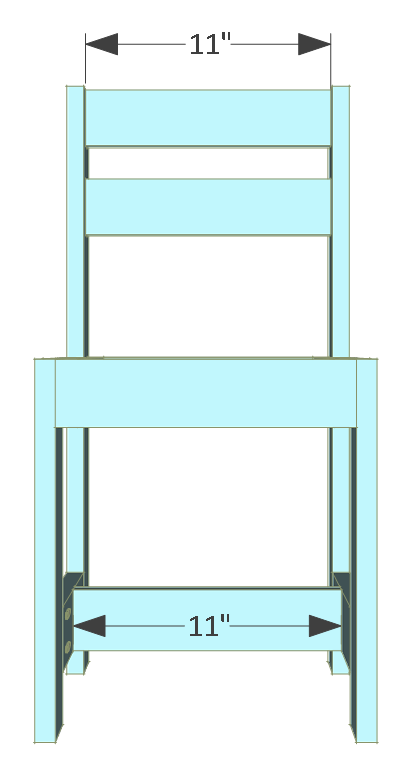

kids indoor outdoor chair plans back

Cut three 1×3’s to 11″ long for the chair back rest and the bottom brace. Assemble as shown above using 1 1/4″ deck screws.

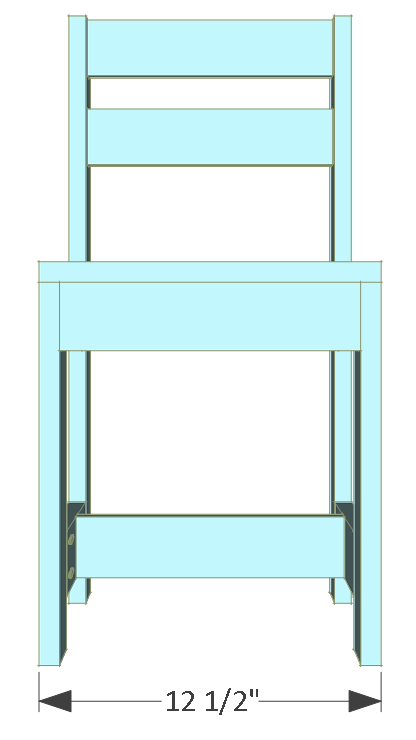

kids indoor outdoor chair plans seat

Cut four 1×3’s to 12 1/2″ long and one 1×3 to 11″ long for the chair seat. Gap the seat slats 1/4″ and install with 1 1/4″ deck screws.

Like these kids chair plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.
