Lawn Chair Plans

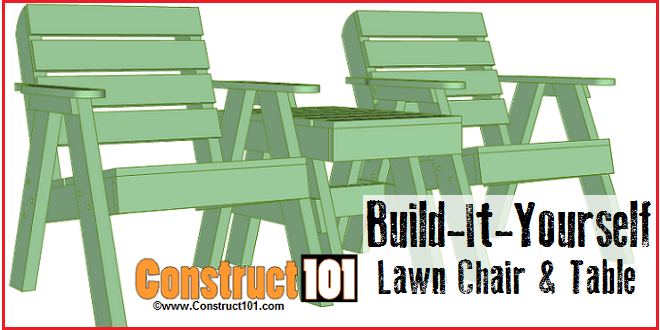

Lawn chair plans and matching side table, includes free PDF download, step-by-step detailed illustrations, measurements, shopping list, and cutting list.

This lawn chair and table will look and function great on any lawn, garden, porch, patio, or deck. The small side table comes in handy for holding drinks, magazines, or books.



Lawn Chair Plans – Overview

Lawn Chair Plans – Material List

Shopping List

Shopping List

Chair

3 – 2×4 – 8′

4 – 1×4 – 8′

10 – carriage bolts, nuts, washers

deck screws

Table

2 – 2×4 – 8′

3 – 1×4 – 8′

deck screws

Cutting List

Cutting List

Chair

(A) 2 – 2×4 – 24 11/16″
(B) 2 – 2×4 – 24 5/8″
(C) 1 – 1×4 – 11 5/16″
(D) 2 – 2×4 – 21″
(E) 1 – 1×4 – 22″
(F) 4 – 1×4 – 22″
(G) 2 – 2×4 – 21″
(H) 4 – 1×4 – 22″
(I) 2 – 1×4 – 23″

Table

(A) 4 – 2×4 – 20 7/16″
(B) 2 1×4 – 19 1/4″
(C) 2 – 2×4 – 24″
(D) 1 – 1×4 – 18″
(E) 6 – 1×4 – 18″
(F) 1 – 2×4 – 15″



lawn chair plans parts listed

Lawn Chair Plans – Building the Chair

lawn chair plans front leg

Cut two 2×4’s to 24 11/16″ for the front legs (A). Cut the ends as shown in illustration above.



lawn chair plans back leg

Cut two 2×4’s to 24 5/8″ for the back leg (B). Cut the ends as show in illustration above.



lawn chair plans leg brace

Cut a 1×4 to 11 5/16″, next rip in half. Cut the ends as shown in illustration above.



lawn chair plans leg assembly

Assemble as shown in illustration above using deck screws.



lawn chair plans

Build the lawn chair seat using 2×4’s and 1×4’s.

(D) Cut two 2×4’s to 21″

(E) Cut one 1×4 to 22″

(F) Cut four 1×4’s to 22″

Assemble the lawn chair seat using deck screws.



lawn chair plans seat installation

Attach the seat to the legs with carriage bolts as shown in illustration.



lawn chair plans back support

Cut two 2×4 to 21″ for the back support (G). Cut the ends as shown in illustration above.



lawn chair plans arm pattern

1 square = 1″

Cut two 1×4 to 23″ for chair arm (I), cut as shown in pattern above.



lawn chair plans install back and arm

Cut four 1×4’s to 22″ for the back slats (H). Install the chair back (G) (H) and arm (I) as shown in illustration above. Use carriage bolts and deck screws to secure.



Lawn Chair Plans – Building the Table

lawn chair plans table parts

(A) cut four 2×4’s to 20 7/16″, cut ends as shown in illustration below.
(B) cut two 1×4’s to 19 1/4″, cut ends as shown in illustration below.
(C) cut two  2×4’s to 24″
(D) cut one 1×4 to 18″
(E) cut six 1×4’s to 18″
(F) cut one 2×4 to 15″

Assemble using deck screws.

lawn chair plans table leg

lawn chair plans table leg brace
