Mailbox Post Plans – DIY Step-By-Step Plans

Mailbox post plans – free PDF download, step-by-step illustrated instructions, material list with cutting list and shopping list.

Check the guidelines from your Postal Service for specific height requirements.

Mailbox Post Plans – Overview

Mailbox post plans - overview.

Mailbox Post Plans – Material List

Shopping List

Shopping List

1 – 4×4 – 10′

1 – 1×6 – 8′

3″ deck screws

concrete

Cutting List

Cutting List

A – 1 – 4×4 –  6′ 8″

B – 1 – 4×4 – 1′ 11 1/2″

C – 1 – 4×4 – 1′ 4″ (45-degree angle cuts both ends opposite direction)

D – 1 – 1×6 – 8′ (cut to size)

Mailbox post plans - material list.

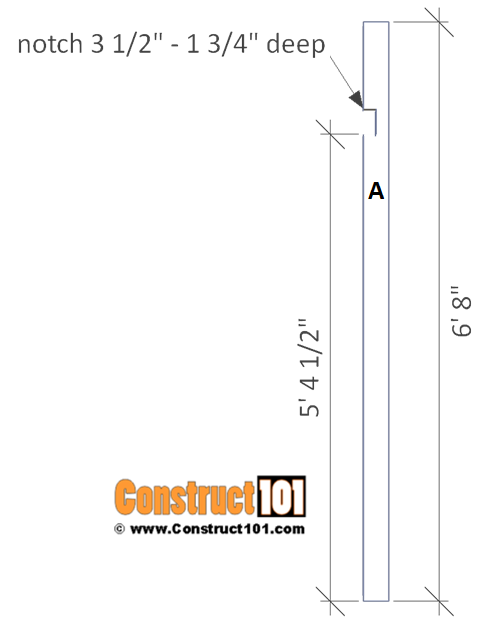

Mailbox post plans - step 1.

Cut a 4×4 to 6′ 8″ long (A). Make a notch to the 4×4 as shown on illustration above.



Mailbox post plans - step 2.



Cut a 4×4 to 1′ 11 1/2″ long (B). Make a notch as shown on illustration above. Drill pilot holes and assemble with 3″ deck screws.



Mailbox post plans - step 3.

Cut a 4×4 to 1′ 4″ long, cut 45-degree angle cuts on both end in opposite directions (C). Drill pilot holes and assemble as shown on illustration above using 3″ deck screws.



Mailbox post plans - step 4.

Measure and cut a 1×6 to fit underneath the mailbox (D). Drill pilot holes and attach as shown on illustration above using 3″ deck screws.

Like these mailbox post plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.
Construct101 offers free online version plans. These free plans also have a free print friendly PDF downloadable version free of ads. Click here to download.
