Trellis Planter Plans

Trellis planter plans with free PDF download. Plans include step-by-step details with illustrations, cutting list, and shopping list.



Trellis Planter Plans – Material List

Shopping List

Shopping List

3 – 5/8″ x 5 1/2″ (cedar boards) – 8′

1 – 2×6 – 8′

1 – 2×4 – 8′

3 – 2×2 – 8′

2 – 1×2 – 8′

1 1/4″ deck screws

2 1/2″ deck screws

Cutting List

Cutting List

A – 12 – 5/8″ x 5 1/2″ (cedar boards) – 13″

B – 2 – 1×2 – 11″

C – 2 – 1×2 – 19 1/4″

D – 2 – 5/8″ x 5 1/2″ (cedar boards) – 20 3/4″

E – 2 – 2×6 – 25″

F – 2 – 2×6 – 12 3/8″

G – 1 – 2×4 – 22″

H – 2 – 2×4 – 13 3/4″

I – 1 – 2×2 – 15″

J – 3 – 2×2 – 51 1/2″

K – 1 – 2×2 – 15″

L – 5 – 1×2 – 22″

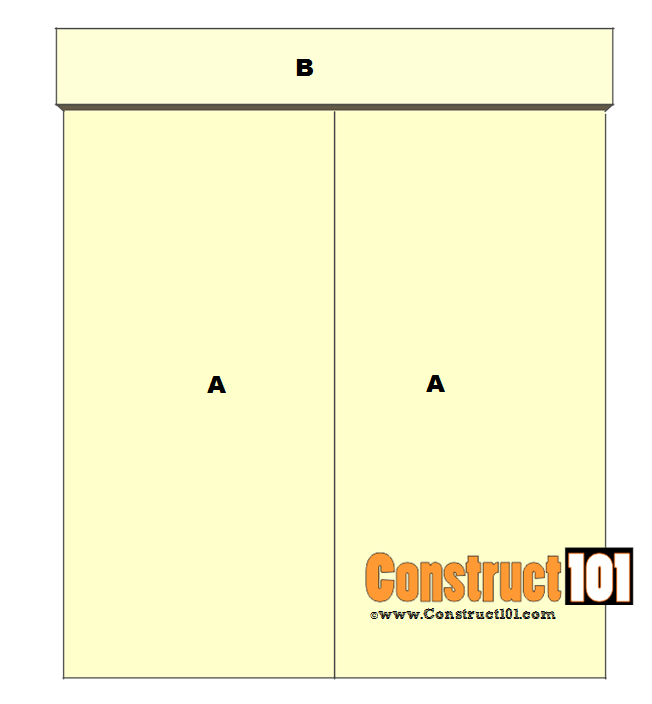

trellis planter plans step 1

Cut twelve cedar boards (A) to 13″. Cut two 1×2’s to 11″ (B). Drill pilot holes and assemble as shown above using 1 1/4″ deck screws, screw through (B) and into (A). Make two sets, these will be used for the planter sides.

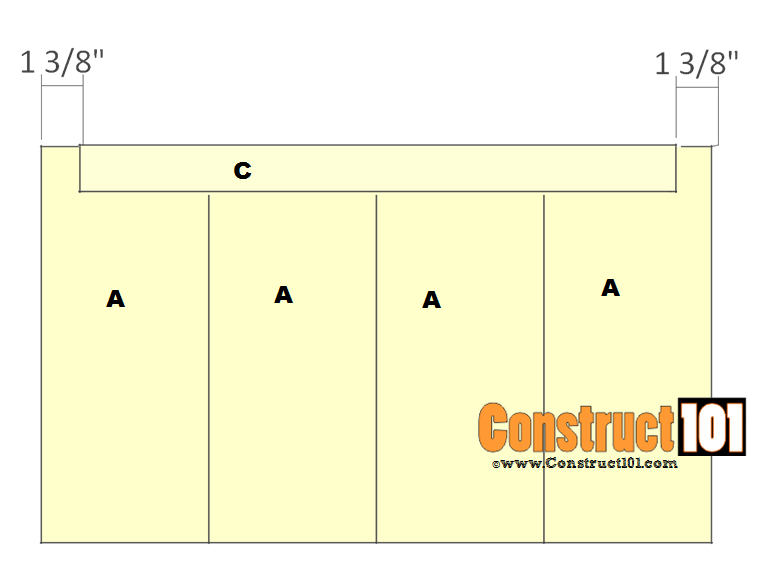

trellis planter plans step 2

Cut two 1×2’s to 19 1/4″ (C). Assemble two sets for the front and back of the planter as shown on illustration above. Drill pilot holes and screw 1 1/4″ deck screws through (C) and into (A).

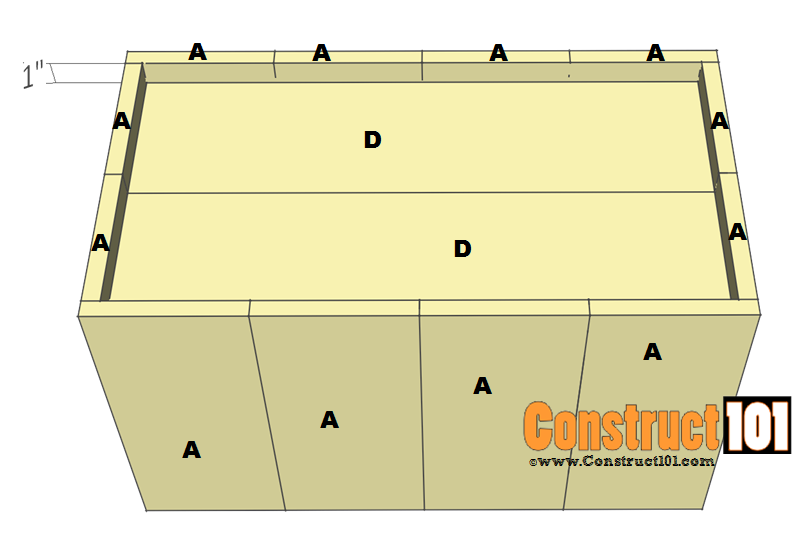

trellis planter plans step 3

Attach all the sides together, drill pilot holes and assemble with 1 1/4″ deck screws.

Cut two cedar boards (D) to 20 3/4″ for the bottom. Drill pilot holes and assemble as shown on illustration above using 1 1/4″ deck screws.

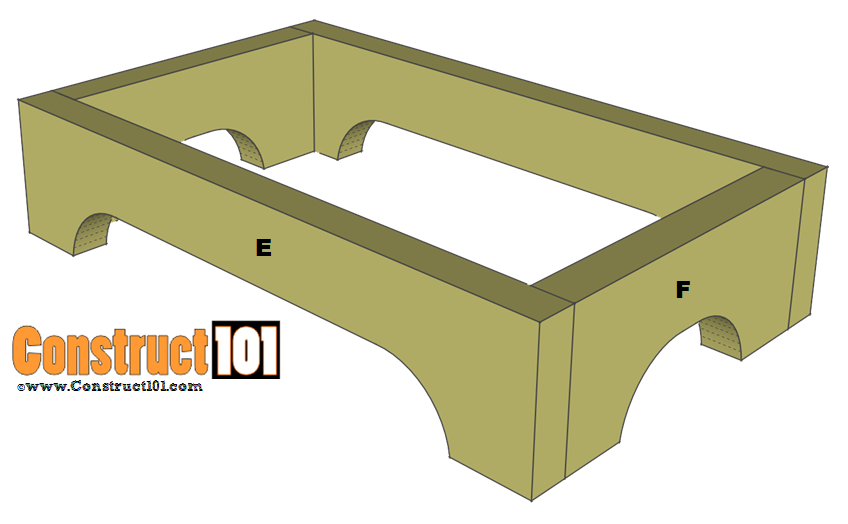

trellis planter plans step 4

Cut two 2×6’s to 25″ (E) and two 2×6’s to 12 3/8″ (F). Drill pilot holes and assemble as shown on illustration above using 2 1/2″ deck screws. See illustration below for more details.

plans pattern

1 square = 1″

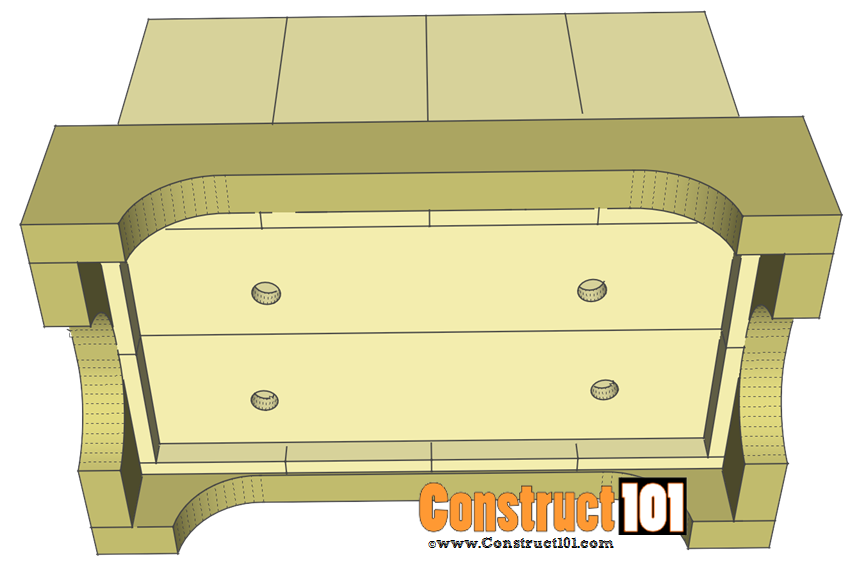

trellis planter plans step 5

Attach the planter to (E) (F). Drill pilot holes to the bottom of the planter boards and screw 1 1/4″ deck screws through (A) and into (E) (F).

Drill holes to the bottom boards for water drainage.

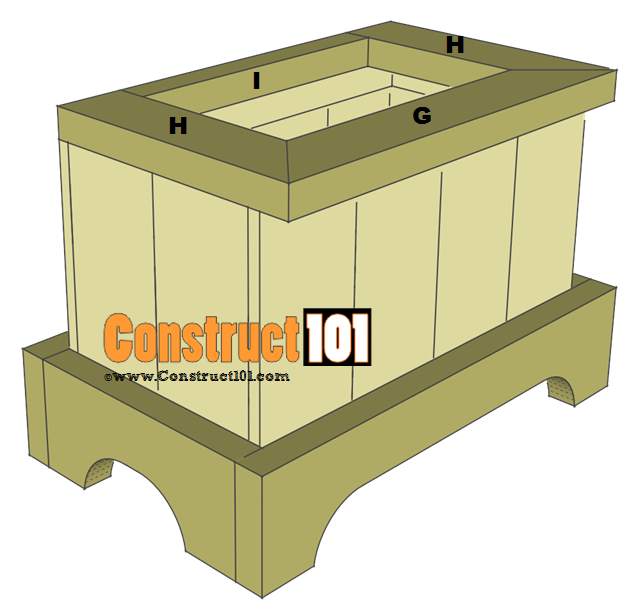

trellis planter plans step 6

Cut one 2×4 to 22″ (G), cut 45 degree angle cuts on the ends. Cut two 2×4’s to 13 3/4″ (H), cut a 45 degree angle cut to one end. Cut one 2×2 to 15″ (I). Assemble the top trim as shown on illustration above, drill pilot holes and use 2 1/2″ deck screws to attach.

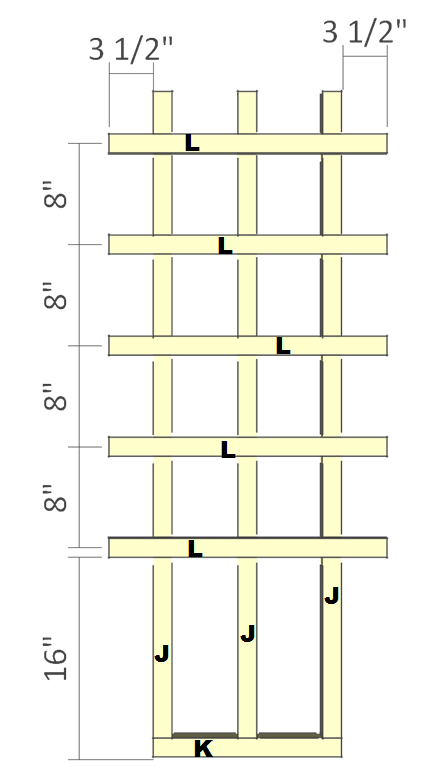

trellis planter plans

Cut three 2×2’s to 51 1/2″ (J). Cut one 2×2 to 15″ (K). Cut five 1×2’s to 22″ (L). Assemble as shown on illustration above. Drill pilot holes and screw 2 1/2″ deck screws through (K) and into (J). Drill pilot holes and screw 1 1/4″ deck screws through (L) and into (J).

trellis planter plans step 8

Attach the trellis to the planter using 2 1/2″ deck screws.

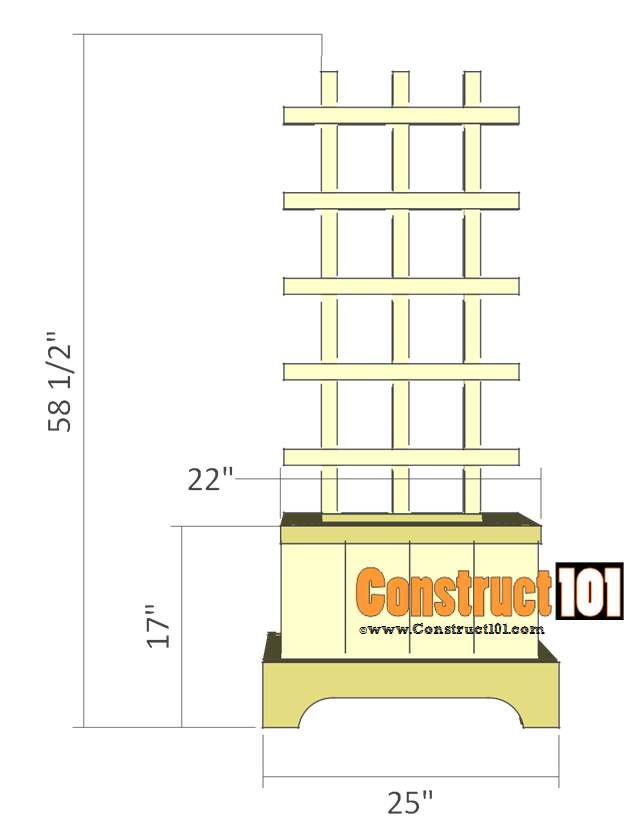

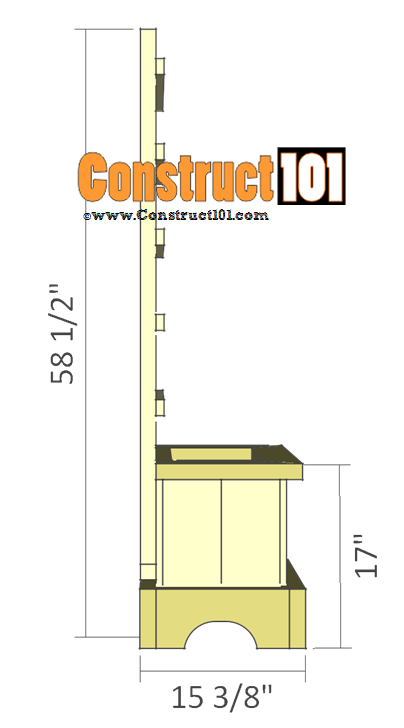

trellis planter plans

Finish by sanding rough areas and painting.

Like these trellis planter plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.
Construct101 offers free online version plans. These free plans also have a free print friendly PDF downloadable version free of ads. Click here to download.
