Cedar wheelbarrow planter plans, DIY fence board project, includes free PDF download (link at bottom of post), shopping list, cutting list, measurements, and drawings.

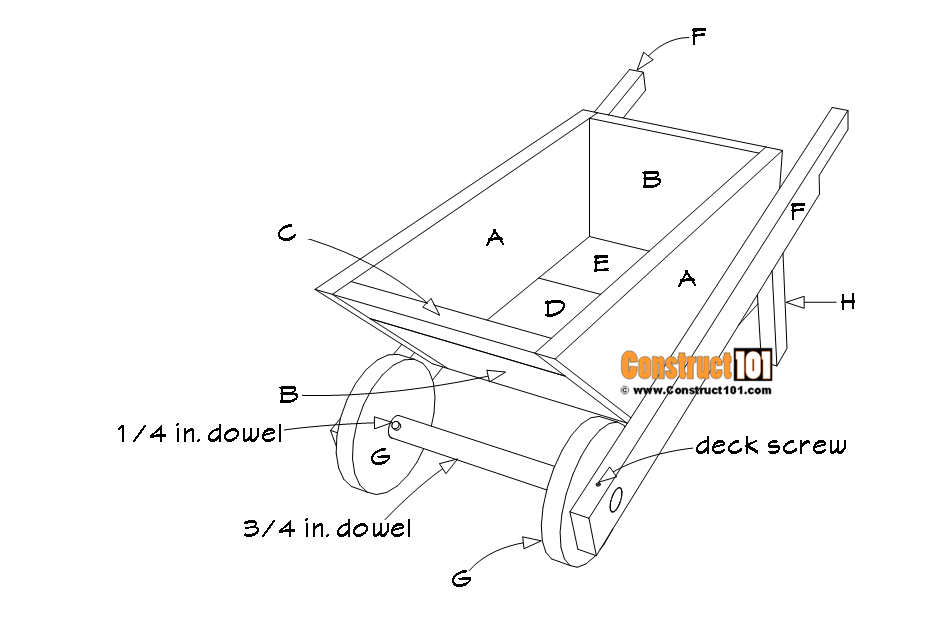

Material List | Cedar Wheelbarrow Planter Plans

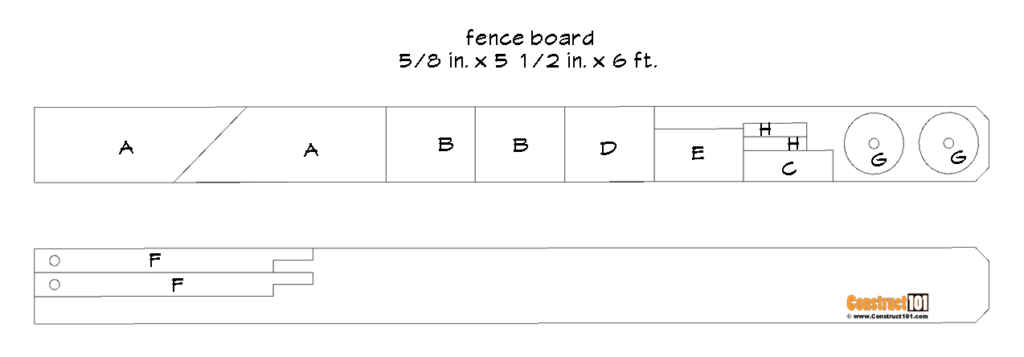

Cutting List
| Parts# | Qty. | Disc. | Size |
| A | 2 | fence board | 5 1/2 in. x 16 in. (45-degree angle cut) |
| B | 2 | fence board | 5 1/2 in. x 6 3/4 in. |
| C | 1 | fence board | 2 1/4 in. x 6 3/4 in. (45-degree bevel cut) |
| D | 1 | fence board | 5 1/2 in. x 6 3/4 in. |
| E | 1 | fence board | 3 7/8 in. x 6 3/4 in. |
| F | 2 | fence board | 1 3/4 in. x 21 in. |
| G | 2 | fence board | 4 1/2 in. circle |
| H | 2 | fence board | 1 in. x 4 3/4 in. |
Shopping List
| Qty. | Disc. | Size |
| 2 | fence board | 5/8 in. x 5 1/2 in. x 6 ft. |
| dowel | 3/4 in. x 12 in. | |
| dowel | 1/4 in. x 4 in. | |
| finishing nails | 1 in. galvanized 16 gauge | |
| deck screws | 1 1/4 in. | |
| exterior wood glue |

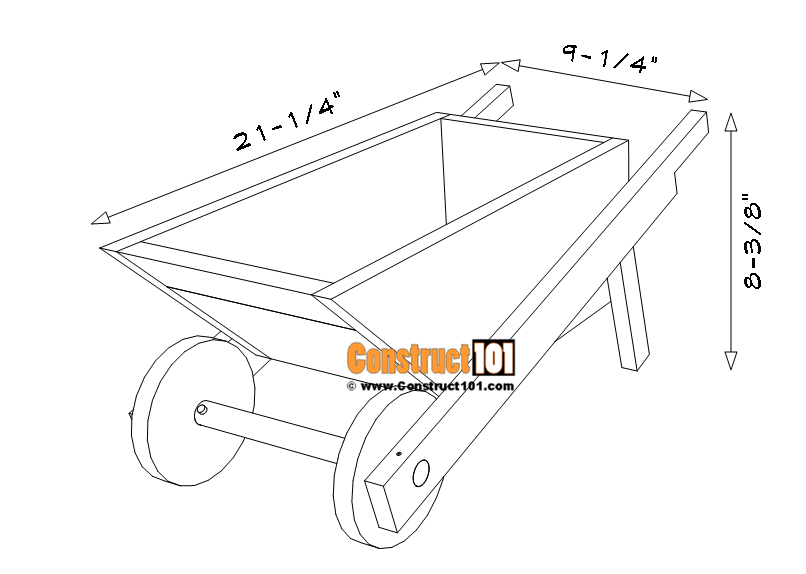

Overview | Cedar Wheelbarrow Planter Plans

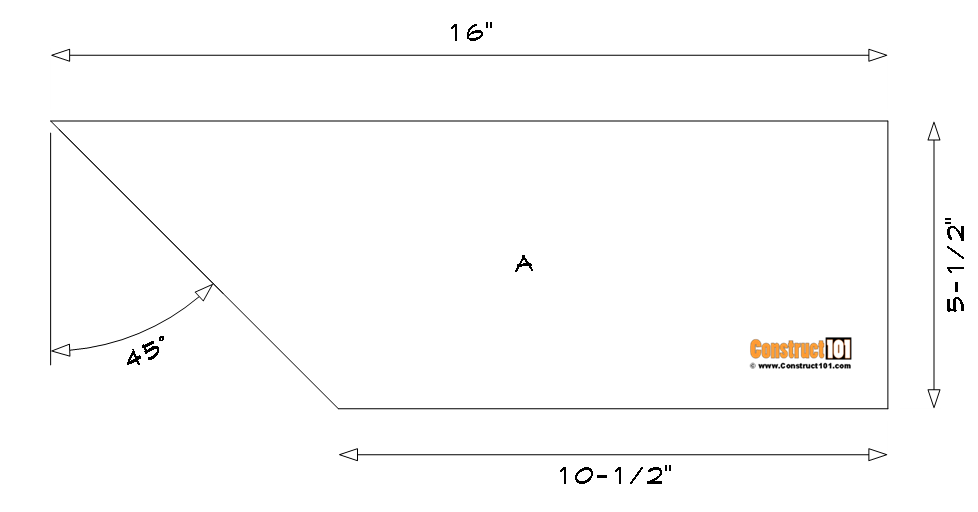

Cut two boards to 16 inches for the sides (A).
Cut a 45-degree angle cut on one end as shown on drawing.

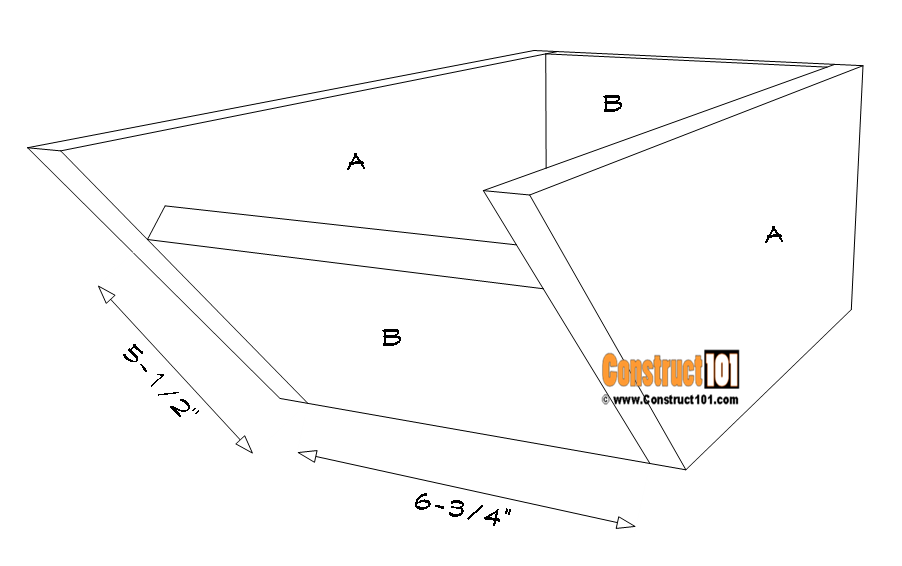

Cut two boards to 6 3/4 inches for the front and back (B).
Install as shown on drawing using exterior wood glue and 1 inch finish nails.

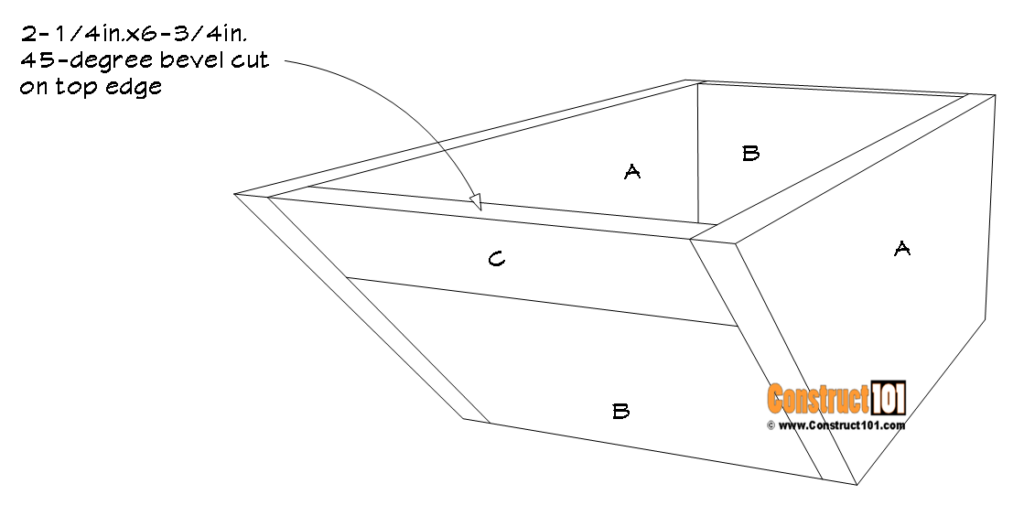

Cut one board to 2 1/4 in. x 6 3/4 in. for the back (C).
Cut a 45-degree bevel cut on the top edge.
Install as shown on drawing using exterior wood glue and 1 inch finish nails.

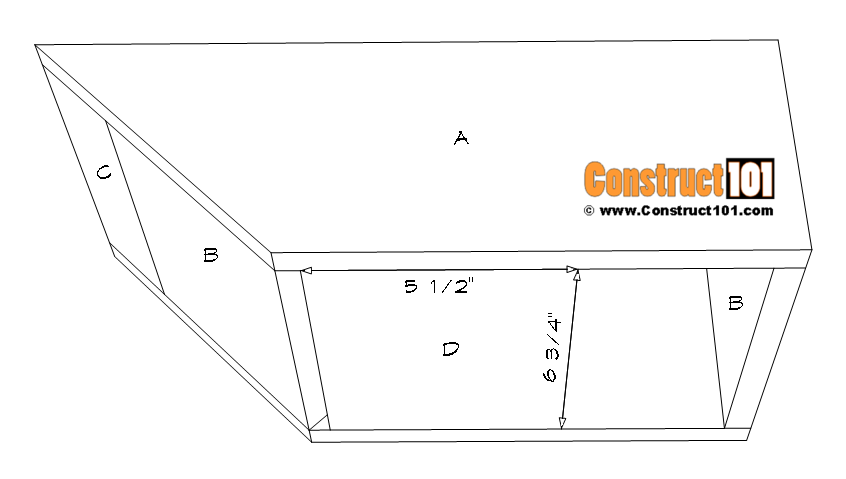

Cut one board to 6 3/4 inches for the bottom (D)
Assemble as shown on drawing using exterior wood glue and 1 inch finish nails.

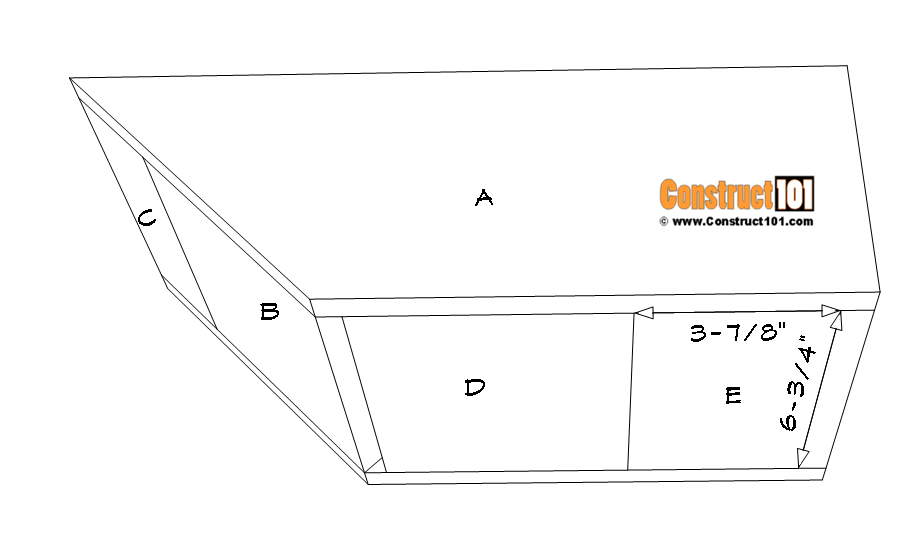

Cut one board to 3 7/8 in. x 6 3/4 in. for the bottom (E).
Install as shown on drawing using exterior wood glue and 1 inch finish nails.

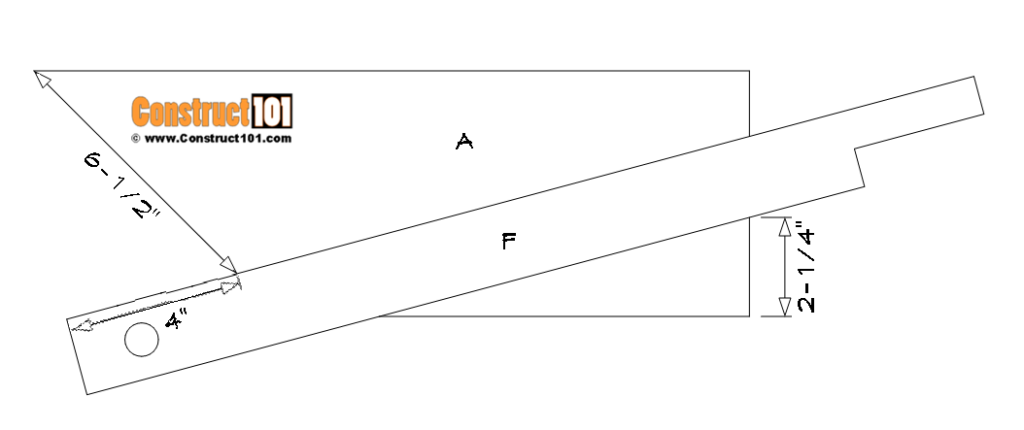

Cut two boards to 1 3/4 in. x 21 in. for the handles (F).
Drill the hole for the dowel and cut handle as shown on drawing.
Install as shown on drawing using exterior wood glue and 1 inch finish nails.

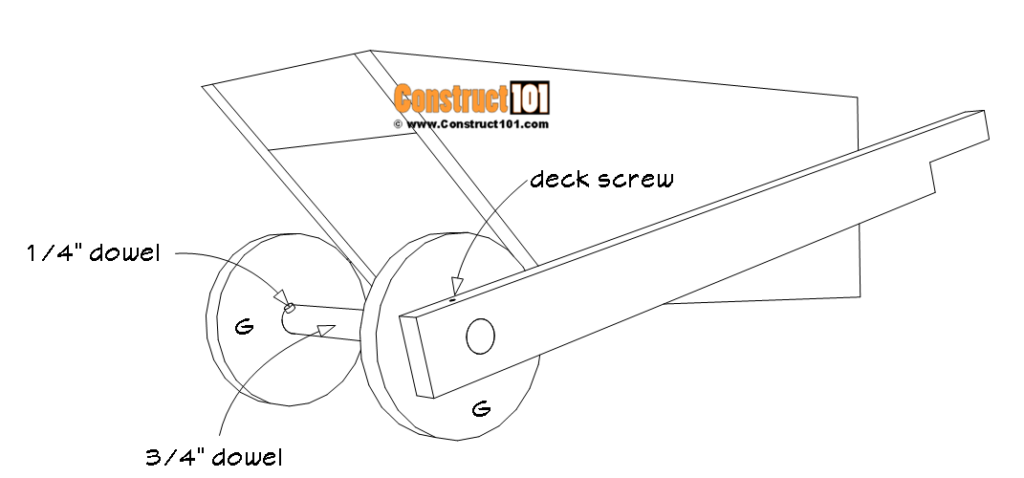

Cut two boards to 4 1/2 in. circles for the wheels (G).
Install wheels (G) using a 3/4 in. dowel 9 1/4 in. long, as shown on drawing.
Pre drill hole and screw 1 1/4 in. deck screws into the dowel.
Drill 1/4 in. holes and insert 1/4 in. dowels to keep wheels in place, add exterior wood glue.

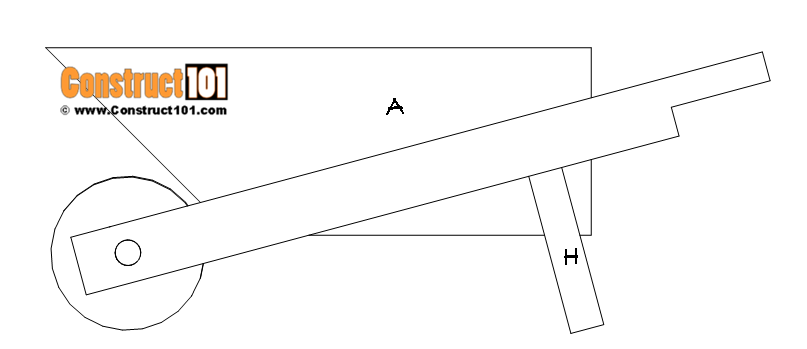

Cut two boards to 1 in. x 4 3/4 in. for the legs (H).
Install as shown on drawing using exterior wood glue and 1 inch finish nails.

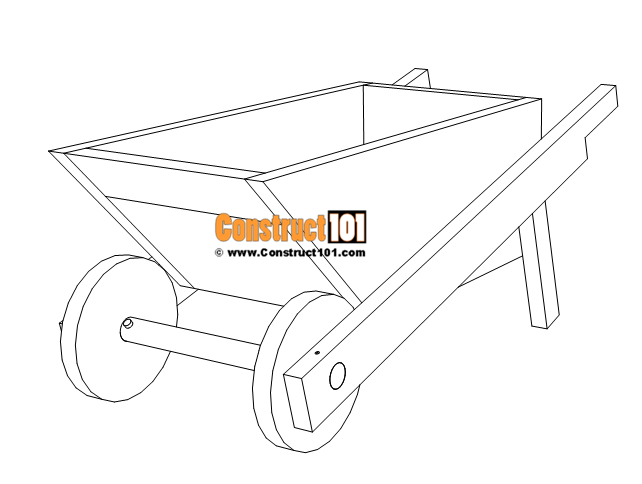

Sand and stain (optional).
