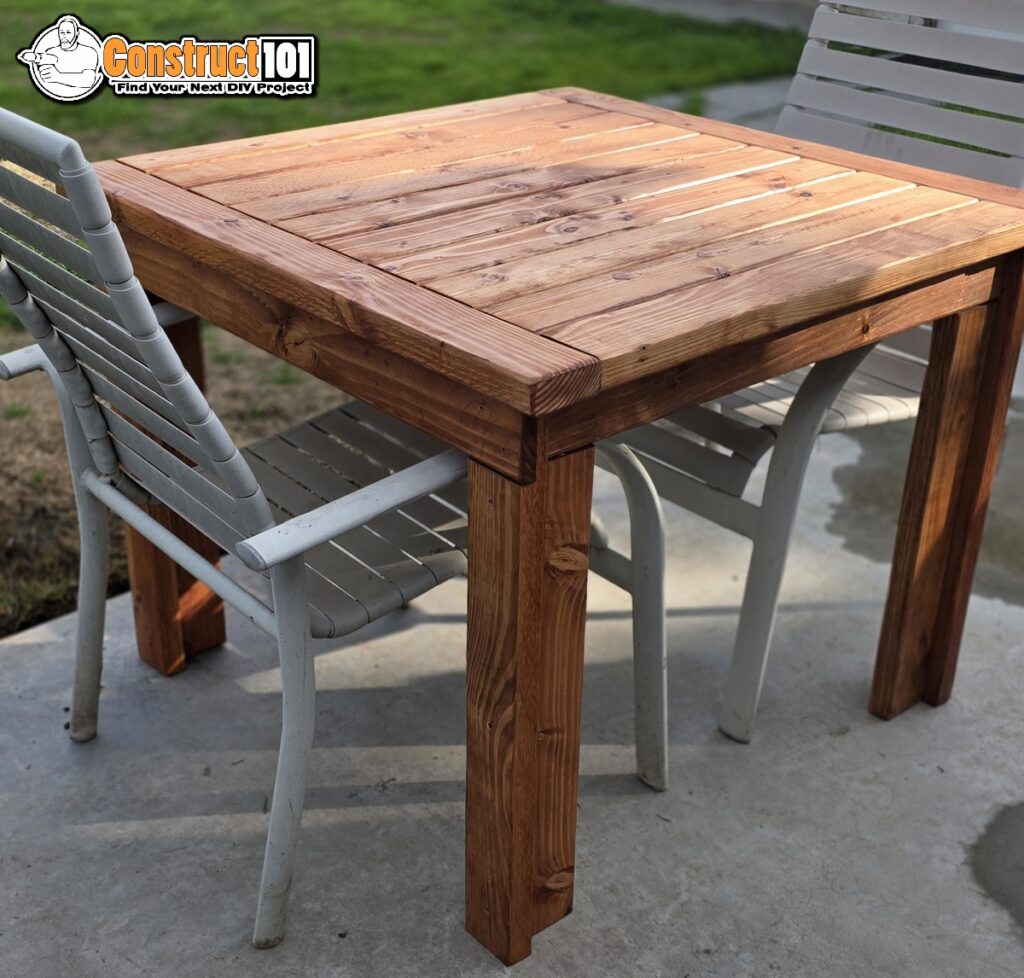

Square patio table plans, DIY 2×4 build project. Plans include a PDF download (link at bottom of post), shopping list, cutting list, measurements, and drawings.
Square Patio Table Plans | Material List
Cutting List
| Part# | Qty. | Disc. | Size |
| A | 8 | 2×4 | 28-1/2 in. |
| B | 2 | 2×4 | 35-1/4 in. |
| C | 2 | 2×4 | 32-1/4 in. |
| D | 2 | 2×4 | 30-1/4 in. |
| E | 2 | 2×4 | 37-1/4 in. |
| F | 10 | 2×4 | 30-1/4 in. |
8 ft. 2×4 Cutting Details
- Board 1: D, D, F
- Board 2: F, F, F
- Board 3: F, F, F
- Board 4: F, F, F
- Board 5: A, A, A
- Board 6: A, A, A
- Board 7: A, A
- Board 8: C, C
- Board 9: B, B
- Board 10: E, E
Shopping List
| Qty. | Disc. | Size |
| 10 | 2×4 | 8 ft. |
| deck screw | 3 in. | |
| deck screw | 2 1/2 in. | |
| deck screw | 1 1/4 in. | |
| exterior pocket hole screws | 2 1/2 in. | |
| exterior wood glue |
Square Patio Table Plans | Overview
- (A) 4 – 2×4 – 28 1/2 in.
- (B) 2 – 2×4 – 35 1/4 in.
Cut 2×4 lumber to size.
Assemble as shown on drawing using exterior wood glue and 1 1/4 in. deck screws.
Make two sets.

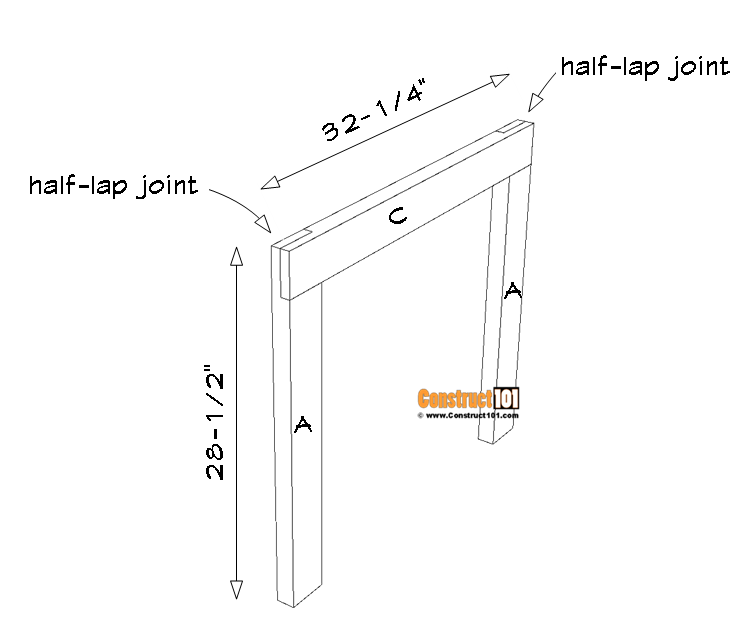

- (A) 4 – 2×4 – 28 1/2 in.
- (C) 2 – 2×4 – 32 1/4 in.
Cut 2×4 lumber to size.
Assemble as shown on drawing using exterior wood glue and 1 1/4 in. deck screws.
Make two sets.
- (D) 2 – 2×4 – 30 1/4 in.
Cut 2×4 lumber to size.
Assemble as shown on drawing using exterior wood glue and 2 1/2 in. exterior pocket hole screws.
Attach (A)(B) to (A)(C) as shown on drawing using exterior wood glue and 3 in. deck screws.

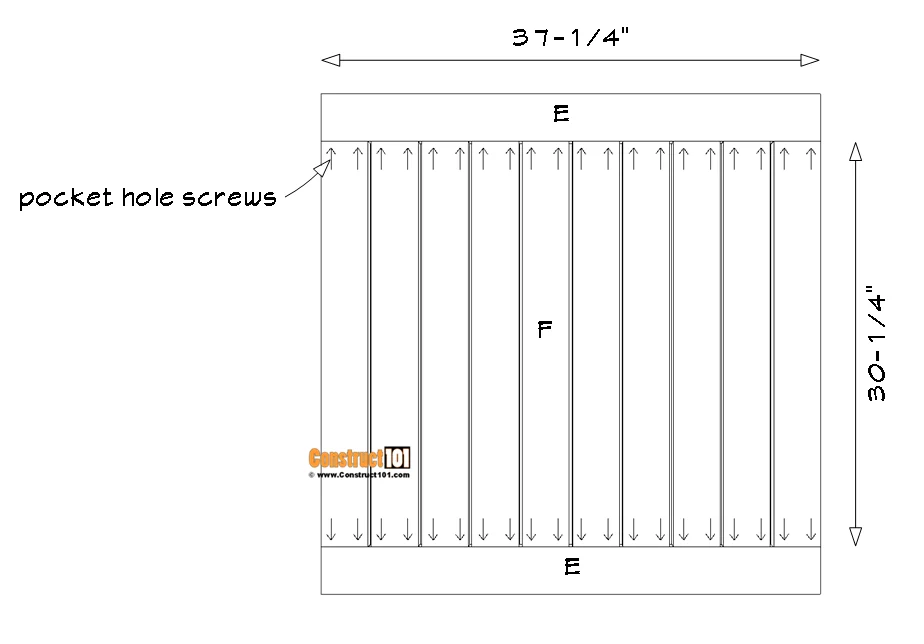

- (E) 2 – 2×4 – 37 1/4 in.
- (F) 10 – 2×4 – 30 1/4 in.
Cut 2×4 lumber to size.
Assemble as shown on drawing using exterior wood glue and 2 1/2 in. exterior pocket hole screws.

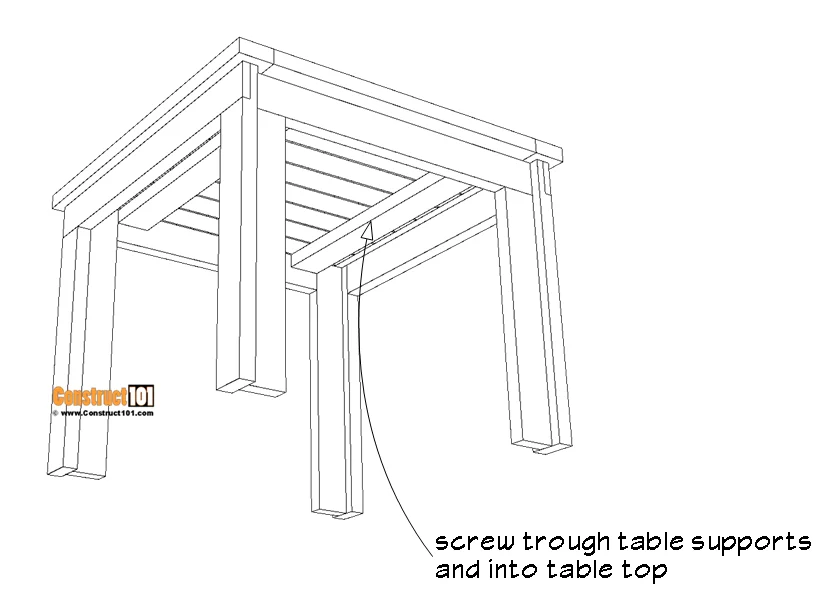

Attach the table top.
Screw 2 1/2 in. deck screws through the table supports and into the table top.
Sand, stain and seal or paint to complete.
PDF DOWNLOAD | SQUARE PATIO TABLE PLANS
If you like these DIY projects let me know in the comments below, thanks for your support!
