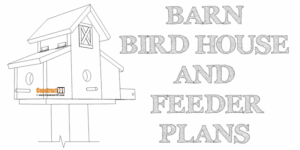

Barn Bird House and Feeder Plans

Barn bird house and feeder plans, PDF download available (PDF link at bottom of post).

DIY build project, plans include material list, measurements, drawings, and step-by-step instructions.

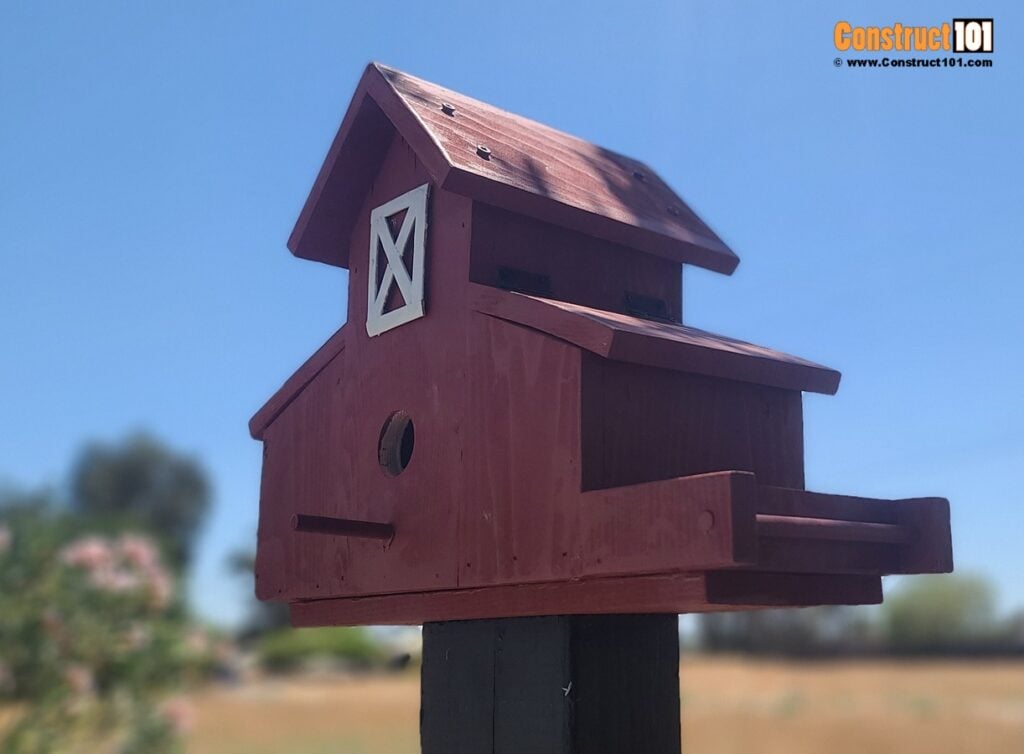

This birdhouse with feeder is built using cedar fence boards. There is one birdhouse in the front, another on the side, and the feeder on the opposite side.

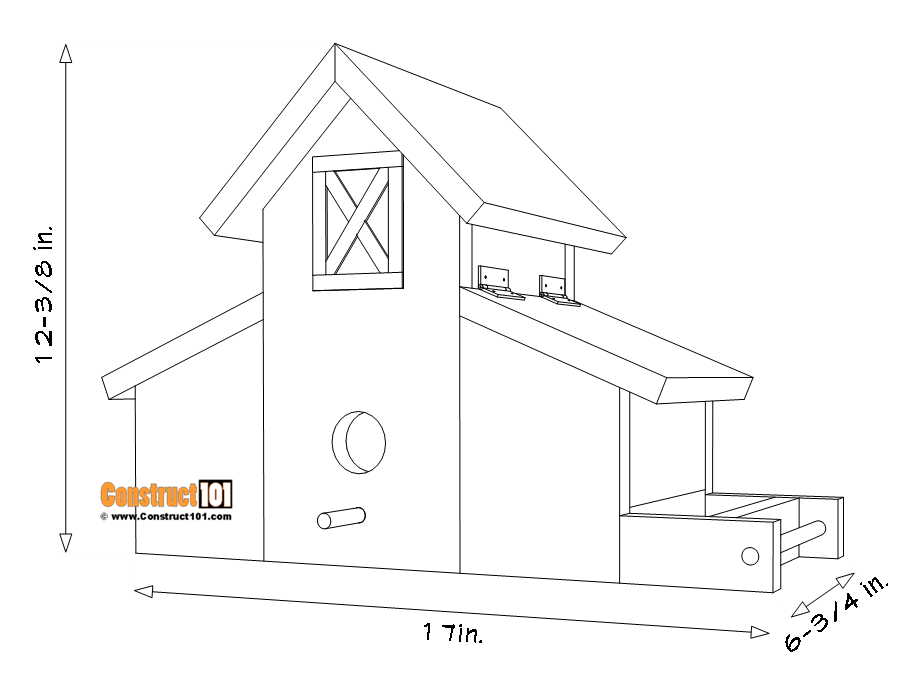

Barn Bird House and Feeder Plans | Overview

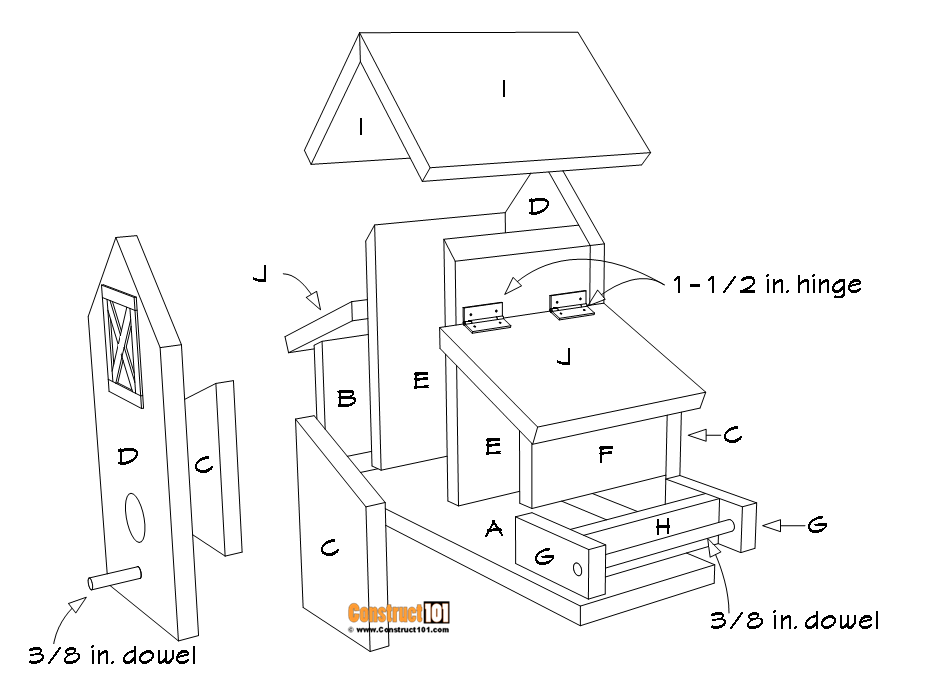

Cutting List

Shopping List

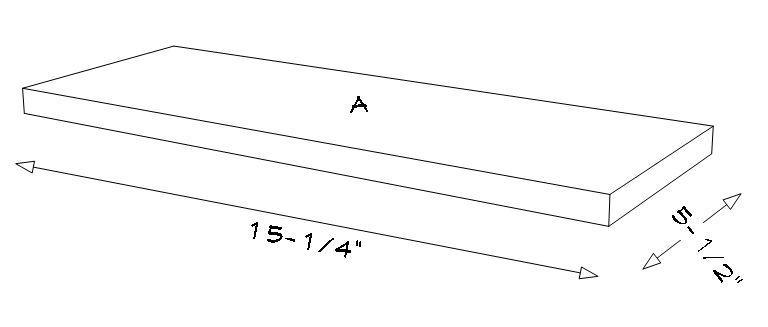

Cut one piece of board to 5-1/2 in. x 15-1/4 in.

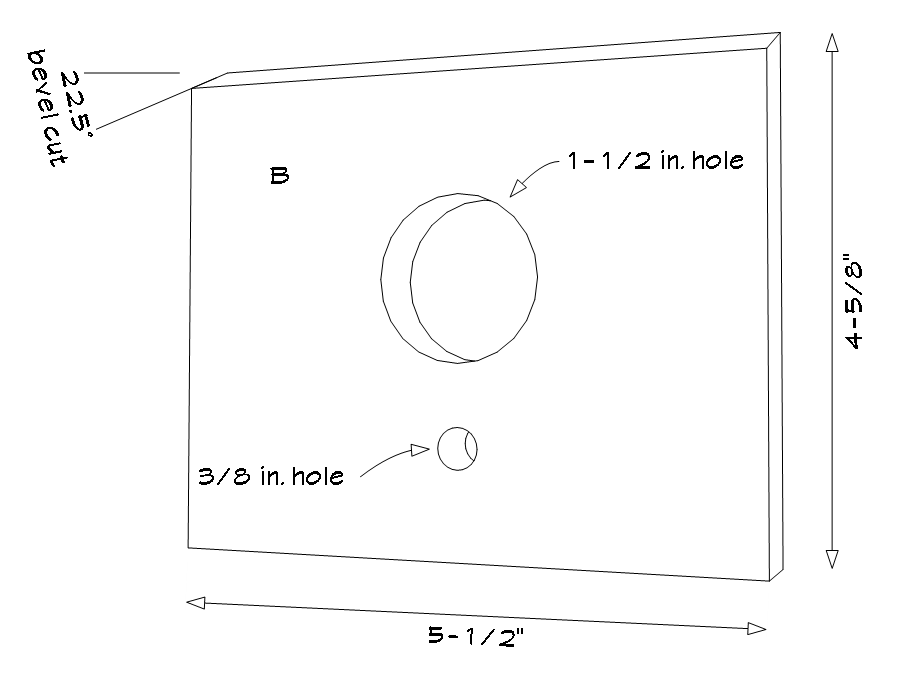

Cut one piece of board to 5-1/2 in. x 4-5/8 in. (B), with a 22.5-degree bevel cut as shown on drawing.

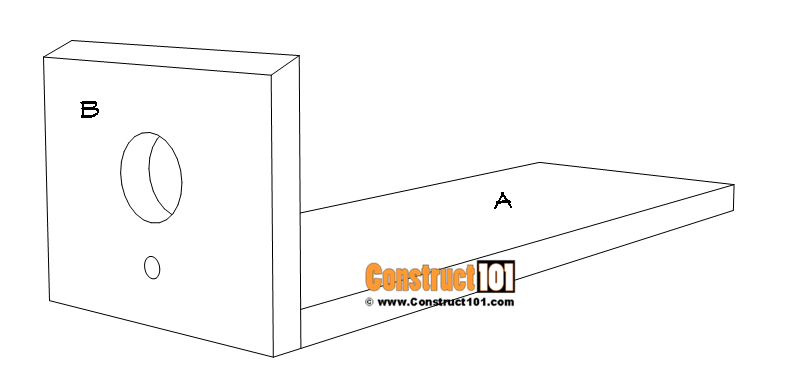

Assemble part (A) and (B) as shown on drawing.

Use exterior wood glue and finish nails.

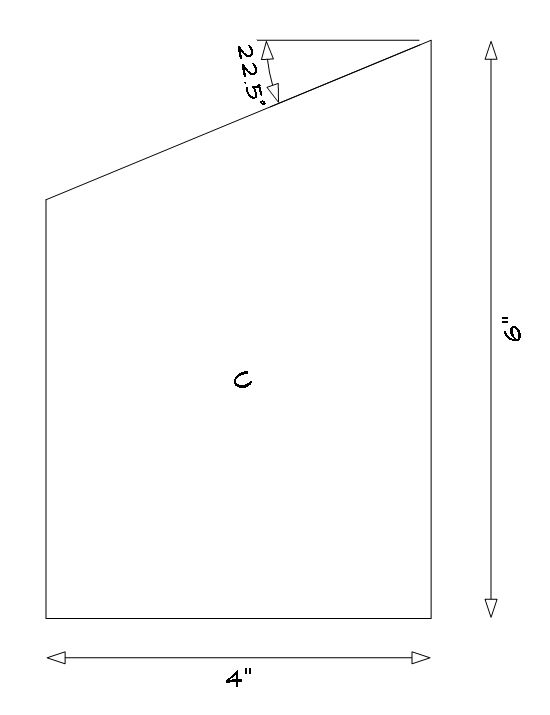

Cut four piece of board to 4 in. x 6 in. (C).

Cut a 22.5-degree angle cut as shown on drawing.

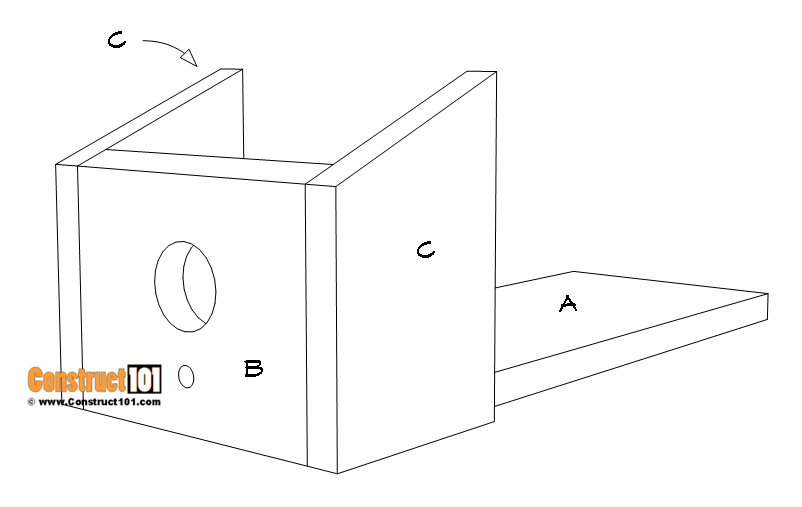

Attach (C) as shown on drawing.

Use exterior wood glue and 1-1/4 in. finish nails.

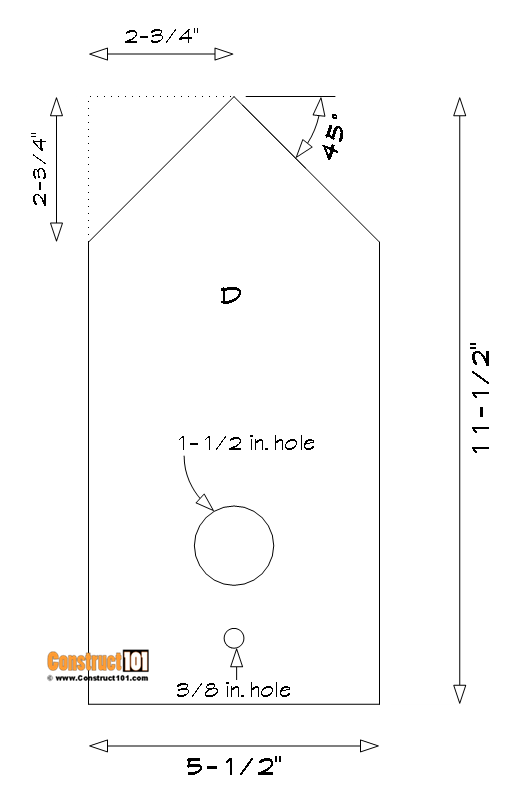

Cut two pieces of boards to 5-1/2 in. x 11-1/2 in. (D).

Cut 45-degree angle cuts as shown on drawing for the roof top.

On one of the boards, cut a 1-1/2 in. hole for the entrance.

Cut a 3/8 in. hole for the dowel.

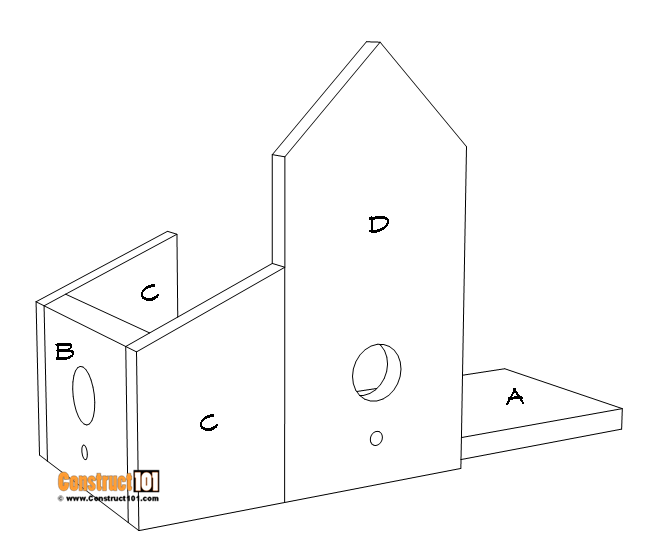

Attach (D) as shown on drawing, use exterior wood glue and finish nails.

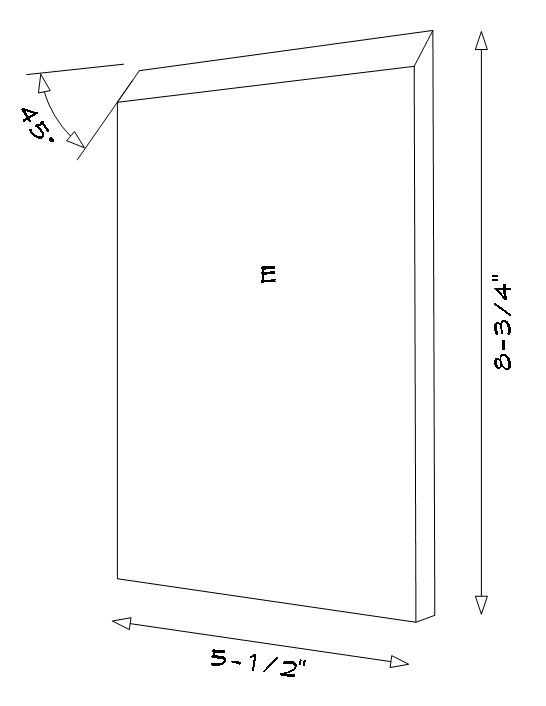

Cut two boards to 5-1/2 in. x 8-3/4 in. (E).

The top edge will have a 45-degree bevel cut as shown on drawing.

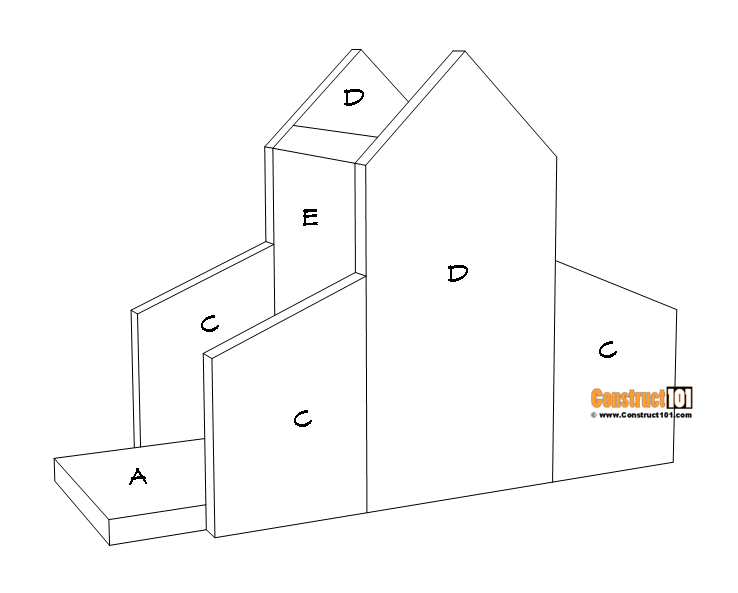

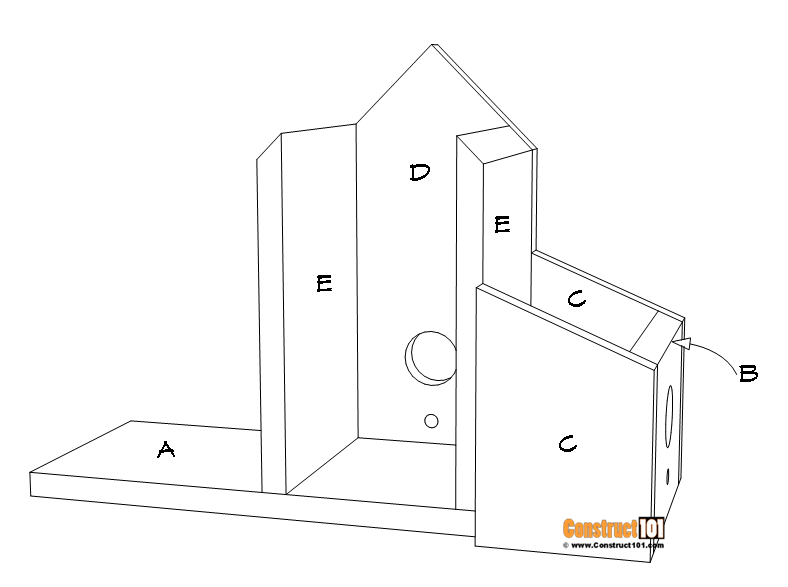

Attach (E) as shown on drawing using exterior wood glue and finish nails.

Attach (C) as shown on drawing using exterior wood glue and finish nails.

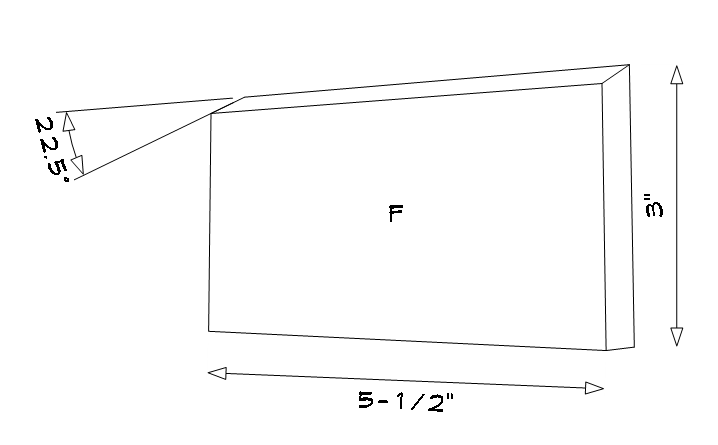

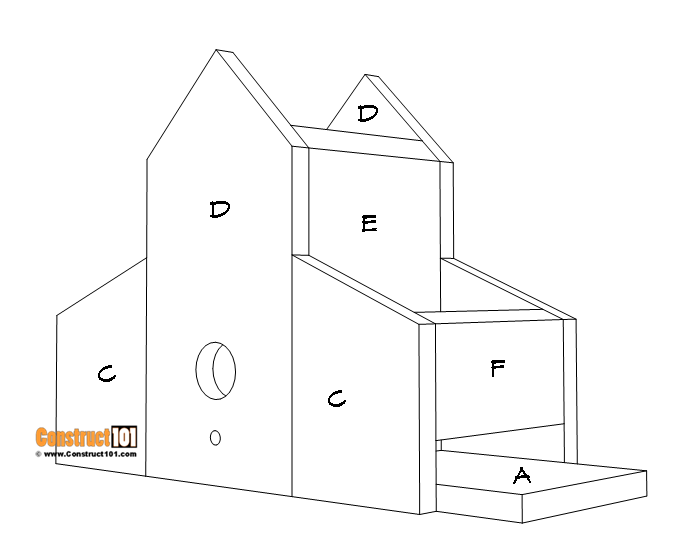

Cut one piece of board to 5-1/2 in. x 3 in. (F).

Cut a 22.5-degree bevel cut as shown on drawing.

Attach (F) as shown on drawing using exterior wood glue and finish nails.

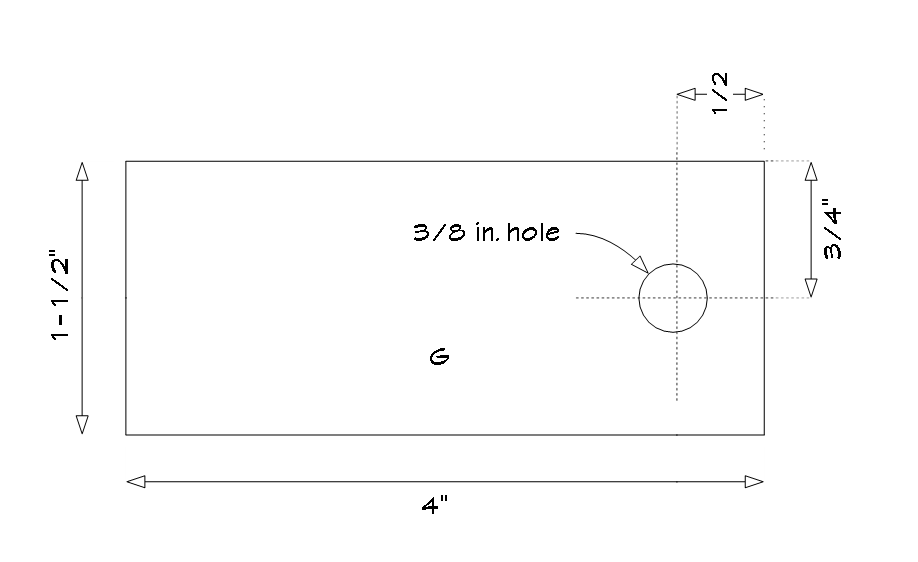

Cut two pieces of board to 4 in. x 1-1/2 in. (G).

Drill a 3/8 in. hole as shown on drawing.

Attach (G) as shown on drawing using exterior wood glue and finish nails.

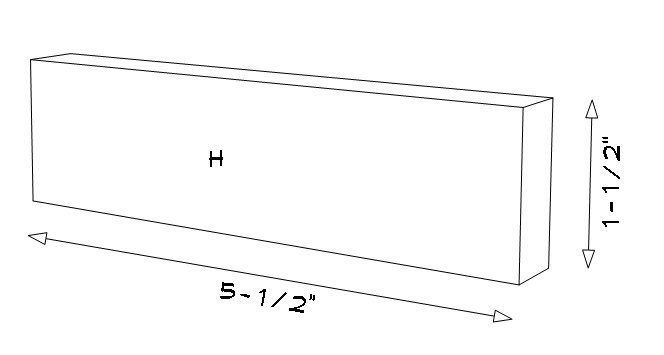

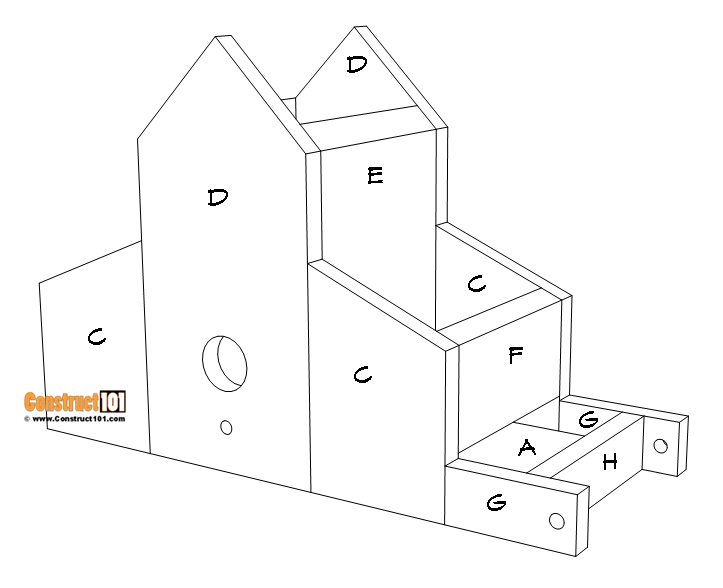

Cut one piece of board to 5-1/2 in. x 1-1/2 in. (H).

Attach (H) as shown on drawing using exterior wood glue and finish nails.

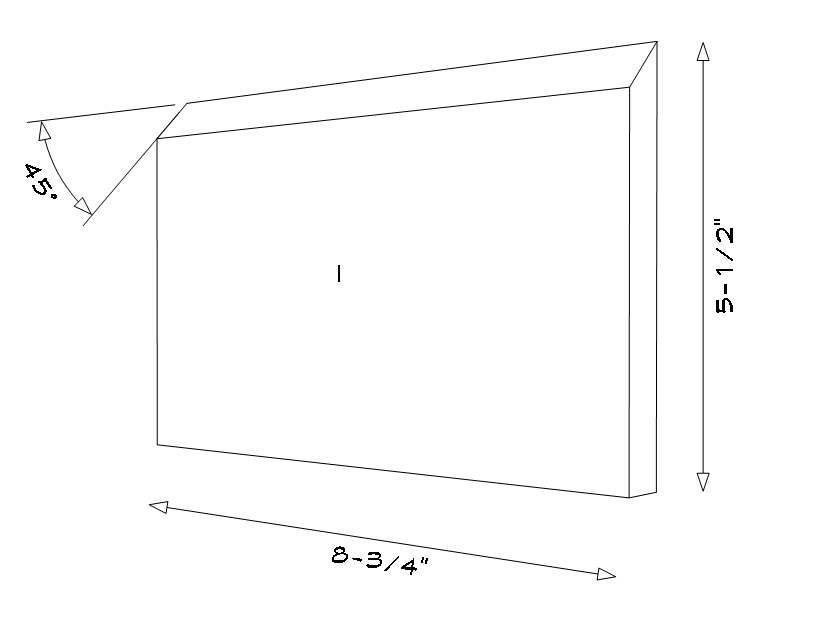

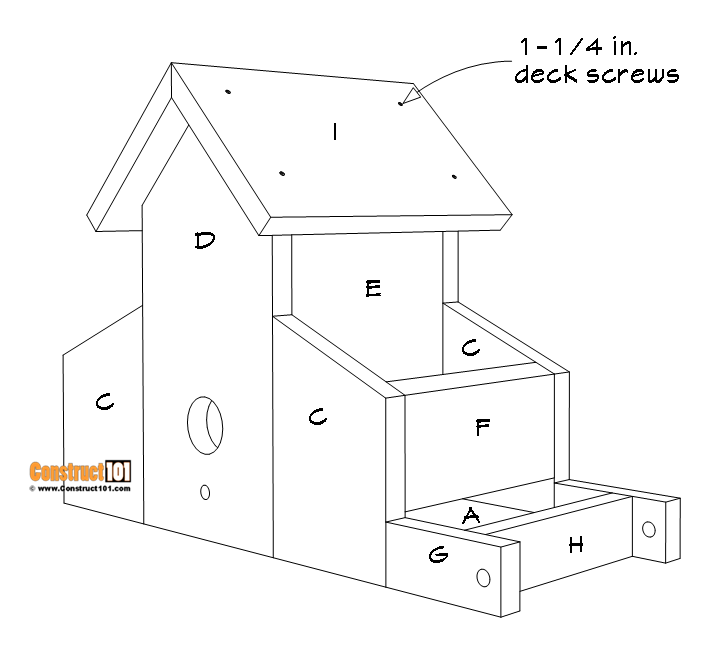

Cut two pieces of board to 5-1/2 in x 8-3/4 in. (I) with a 45-degree bevel cut, as shown on drawing.

Attach (I) as shown on drawing.

The roof will have a one inch overhang on the front and back.

Pre-drill holes and use 1-1/4 in. deck screws to attach.

Remove screws to clean out bird house.

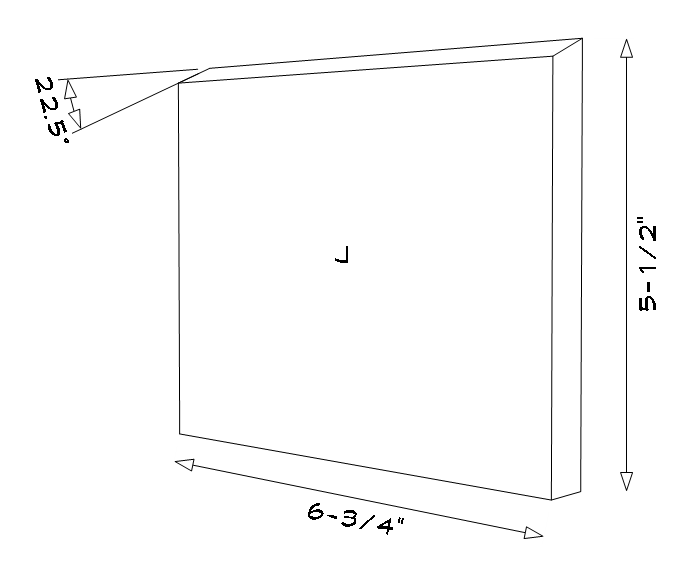

Cut two pieces of boards to 5-1/2 in. x 6-3/4 in. (J) with a 22.5-degree bevel cut as shown on drawing.

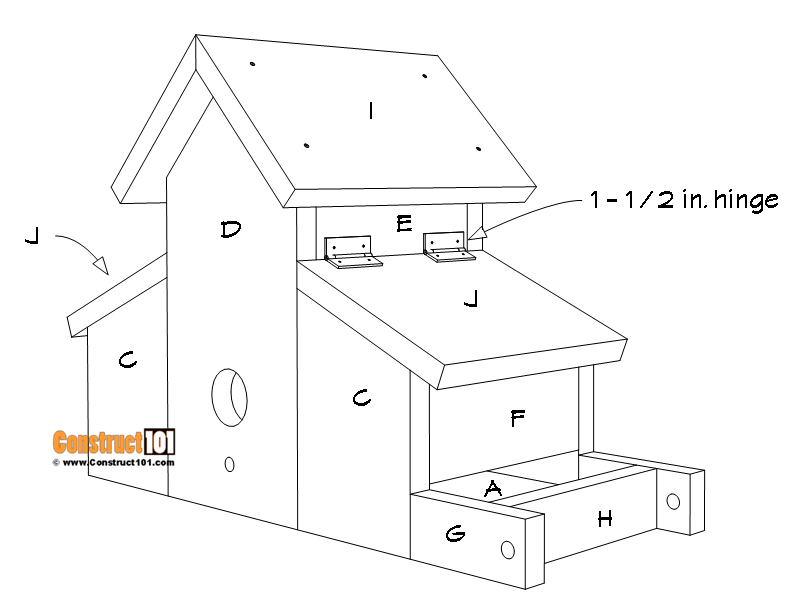

Attach (J) using hinges.

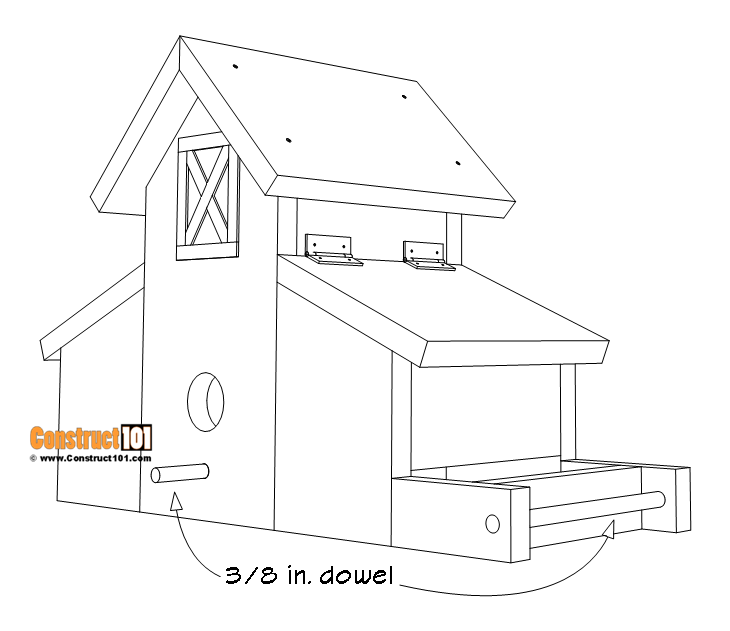

Attach the 3/8 in. dowel as shown on drawing.

Paint and decorate to complete.
