2×6 Outdoor Bench Plans

2x6 outdoor bench plans, DIY build project.

2×6 outdoor bench plans, plans include a free PDF download (link at bottom of blog post), material list, measurements, drawings, and step-by-step instructions.

Pictures From These Plans

DIY 2x6 outdoor bench

2×6 Outdoor Bench Plans – Overview


2×6 Outdoor Bench Plans – Material List

2x6 outdoor bench plans - material list.

Cutting List

Part#Qty.Disc.Size
A22×622 3/4in.
(15-degree angle cut on one end and 45-degree angle
cut on the opposite end in opposite direction)
B22×621in.
(45-degree angle cuts on both ends same direction)
C22×628 3/4in.
(45-degree angle cuts on both ends same direction)
D12×643in.
E22×632in.
F32×648in.
G22×648in.

Shopping List

Qty.Disc.Size
62×68ft.
exterior wood glue
deck screws2 1/2in.

parts list A

Cut two 2×6’s to 22 3/4in. long (A).

Cut a 15-degree angle cut on one end and a 45-degree angle cut on the opposite end in opposite directions.


part b

Cut two 2×6’s to 21in. long (B).

Cut 45-degree angle cuts on both ends in the same direction.


part c

Cut two 2×6’s to 28 3/4in. long (C).

Cut 45-degree angle cuts on both ends in the same direction.


part D

Cut one 2×6 to 43in. long (D).


Part E

Cut two 2×6’s to 32″ long (E).


Part F

Cut three 2×6’s to 48in. long (F).


Part G

Cut two 2×6’s to 48in. long (G).


2×6 Outdoor Bench – Assembly

Bench is assembled using exterior wood glue and 2 1/2in. deck screws.

Pre-drill all holes and use clamps to hold parts together.

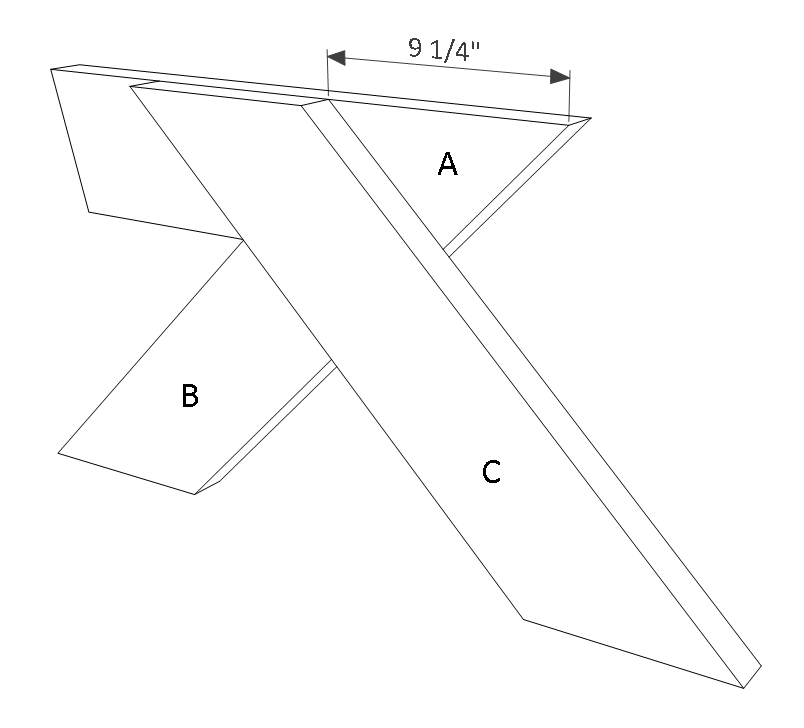

2x6 outdoor bench plans - step 1

Assemble two bench leg assembly (A),(B), and (C) as shown on drawing.

Pre-drill all holes, use exterior wood glue and 2 1/2in. deck screws.


2x6 outdoor bench plans, assembly step 2

Install the leg brace (D).

Pre-drill holes, use exterior wood glue and 2 1/2in. deck screws.


2x6 outdoor bench plans, assembly step 3

Install backrest support (E).

Pre-drill holes, use exterior wood glue and 2 1/2in. deck screws.


2x6 outdoor bench plans, assembly step 4

Install seat boards (F).

The ends of the seat boards will have a small overhang.

Seat boards will have a 1/4in. gap between each board as shown on drawing.

Pre-drill holes, use exterior wood glue and 2 1/2in. deck screws.


2x6 outdoor bench plans, assembly step 5

Install the backrest boards (G).

Backrest boards will have a 1/4in. gap between board as shown on drawing.

Pre-drill holes, use exterior wood glue and 2 1/2in. deck screws.

Use wood sealer/stain or paint to protect wood from the weather.
