Flat Garden Bridge Plans – DIY Landscape Bridge

Flat garden bridge plans. This flat deck garden bridge measures 4’x10′. Plans include step-by-step instructions with drawings, shopping list, cutting list, and free PDF download.

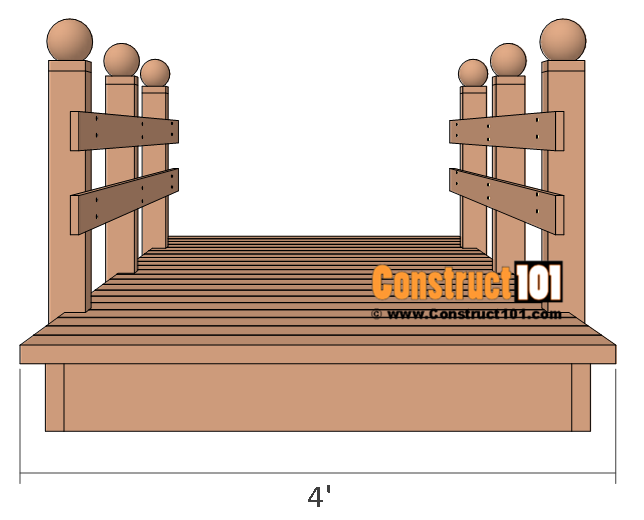

Flat Garden Bridge Plans – Overview

Flat Garden Bridge Plans – Material List

Shopping List

Shopping List

13 – 2×6 – 8′

2 – 2×6 – 10′

2 – 4×4 – 8′

4 – 1×4 – 8′

6 – 4×4 post caps

12 – carriage bolt, nut, washers – 5 1/2″

3″ deck screws

3 1/2″ deck screws

Cutting List

Cutting List

A – 2 – 2×6 – 10′

B – 4 – 2×6 – 3′ 5″

C – 21 – 2×6 – 4′

D – 6 – 4×4 – 2′ 6″

E – 4 – 1×4 – 8′

Flat deck garden bridge plans - step 1

Cut two 2×6’s t0 10′ long (A). Cut four 2×6’s to 3′ 5″ long (B). Assemble as shown on illustration above. Pre-drill holes and screw 3 1/2″ deck screws through (A) and into (B).

Flat deck garden bridge plans - step 2

Cut twenty-one 2×6’s to 4′ long (C). Pre-drill holes and assemble as shown on illustration above using 3 1/2″ deck screws. The deck boards will have a 1/4″ gap between each board. The front and back will have a 1/4″ overhang, the sides will have a 2″ overhang.



Flat deck garden bridge plans - step 3Cut six 4×4’s to 2′ 6″ long (D). Assemble as shown on illustration above. Notch the deck boards around the 4×4 rail post. Drill holes and use 5 1/2″ carriage bolts to install the 4×4 rail post.

Flat deck garden bridge plans - step 4Cut four 1×4’s to 10′ long (E). Pre-drill holes and install deck rails using 3″ deck screws. Install 4×4 post caps.

Like these flat garden bridge plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.
Construct101 offers free online version plans. These free plans also have a free print friendly PDF downloadable version free of ads. Click here to download.
