Plywood Shop Cart Plans

Plywood shop cart plans. Plans include a free PDF, cutting list, shopping list, measurements, and drawings.

Plywood Shop Cart Plans – Overview

Plywood Shop Cart Plans – Material List

Shopping List

Shopping List

Plywood shop cart plans -  view.

Cutting List

Cutting List

  • A – 8 – 3/4″ plywood – 3″ x 28 1/4″
  • B – 2 – 3/4″ plywood – 2″ x 30 1/2″
  • C – 2 – 3/4″ plywood – 2″ x 19″
  • D – 2 – 3/4″ plywood – 6″ x 30 1/2″
  • E -2 – 3/4″ plywood – 6″ x 19″
  • F – 1 – 3/4″ plywood – 20 1/2″ x 30 1/2″
  • G – 1 – 3/4″ plywood – 22″ x 32″

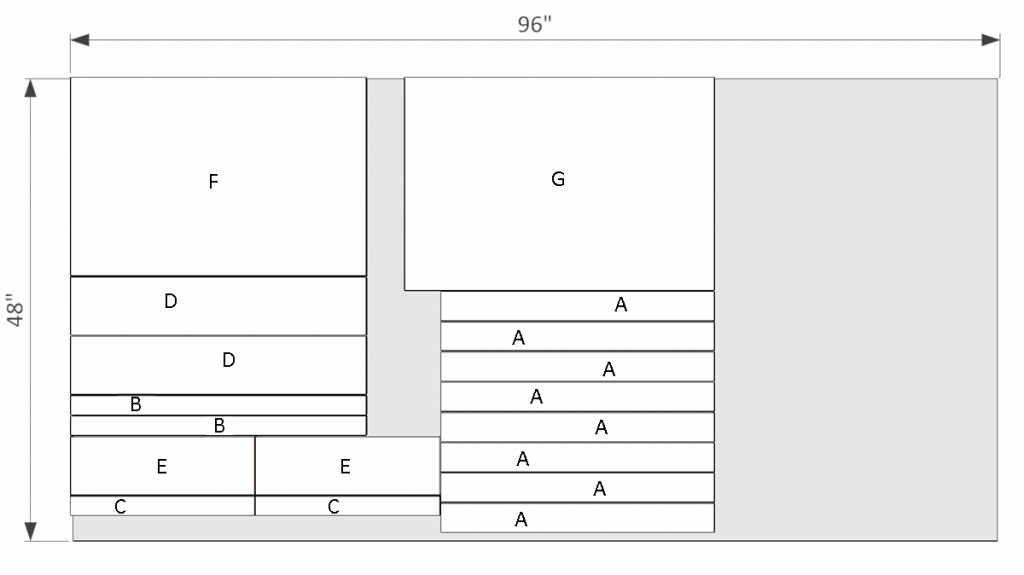

Plywood shop cart plans - material list.

Plywood shop cart is built using one 3/4″ – 4′ x 8′ plywood sheet.  Cut pieces to size and assemble using exterior wood glue and 1 1/4″ 16-gauge finish nails.

Step 1

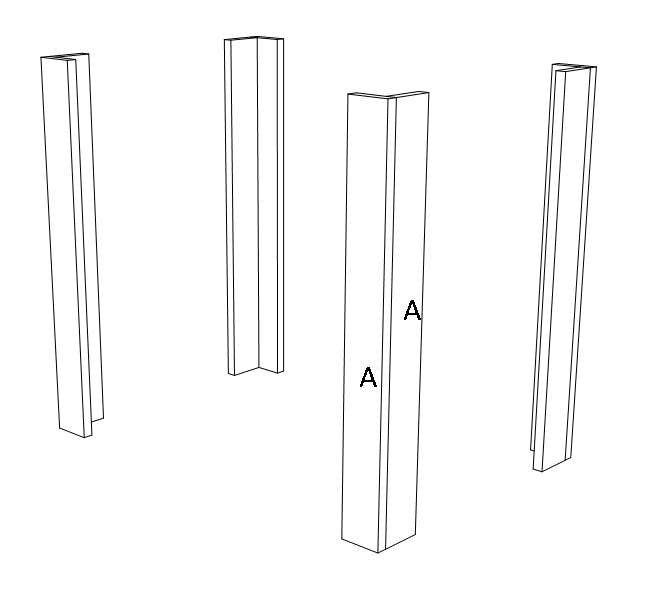

Cut eight pieces of plywood to 3″ x 28 1/4″ (A). Assemble as shown on drawing above.

Step 2

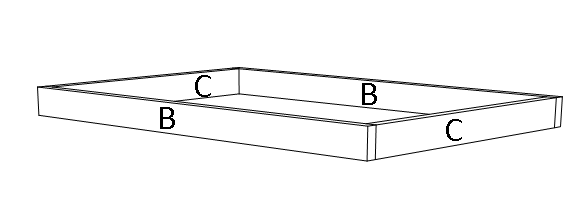

Cut two pieces of plywood to 2″ x 30 1/2″ (B). Cut two pieces of plywood to 2″ x 19″ (C). Assemble as shown on drawing above.

Step 3

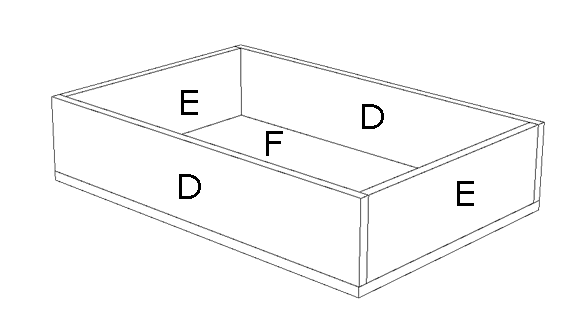

Cut two pieces of plywood to 6″ x 30 1/2″ (D). Cut two pieces of plywood to 6′ x 19″ (E). Cut one piece of plywood to 20 1/2″ x 30 1/2″ (F). Assemble as shown on drawing above.

Step 4

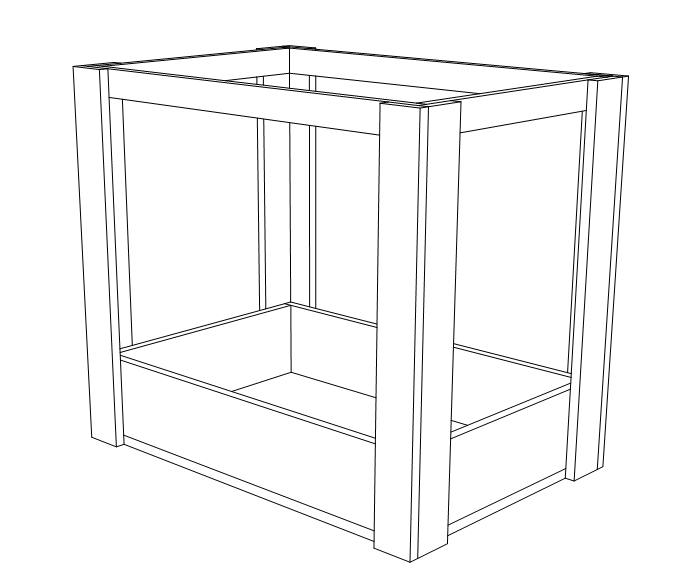

Assemble the shop cart parts as shown on drawing above.

Step 5

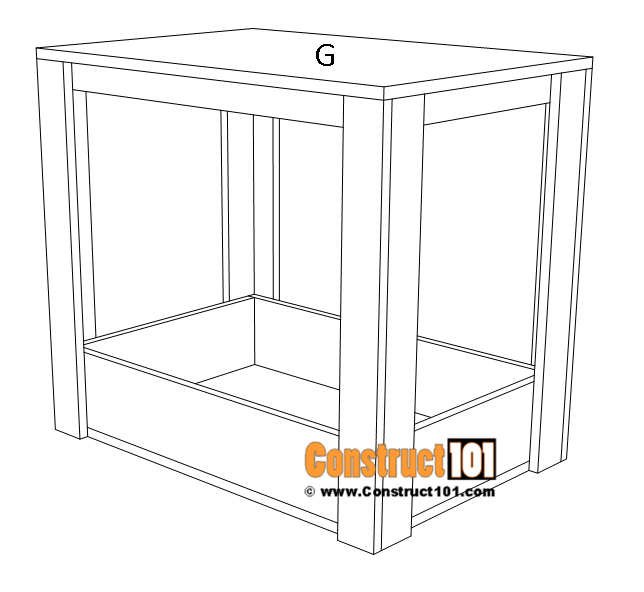

Cut one piece of plywood to 22″ x 32″ (G). Assemble as shown on drawing above.

Step 6

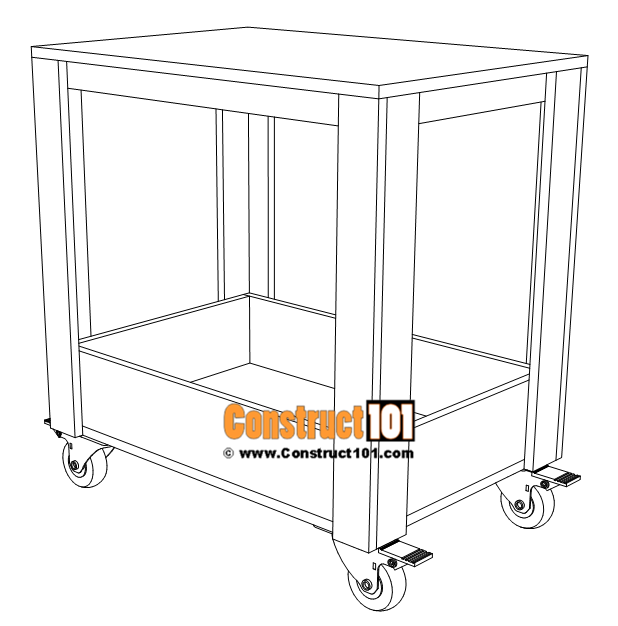

Install caster wheels.
