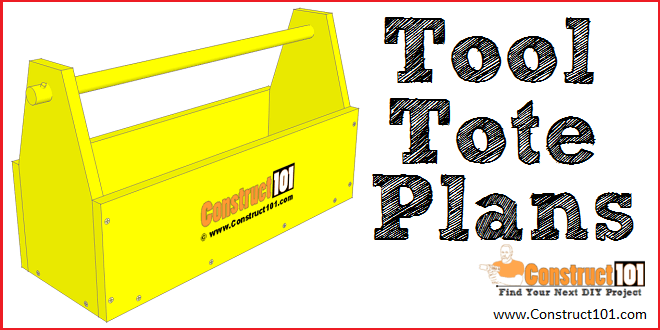

Tool Tote Plans – Step-By-Step DIY Project

Tool tote plans, plans include a free PDF download, step-by-step illustrated details, material list with shopping and cutting list.

Tool Tote Plans – Overview

Tool Tote Plans – Material List

Shopping List

Shopping List

1 – 1×8 – 8′

1 – dowel – 2′ 2″

2 – 1/4″ pin – 1 1/2″

wood glue

2″ wood screws

Cutting List

Cutting List

A – 1×8 – 7 1/4″ x 1′ 10 1/2″

B – 1×8 – 7 1/4″ x 1′ 2″

C – 1×8 – 7 1/4″ x 2′

D –¬†dowel – 2′ 2″

Tool tote plans, material list.

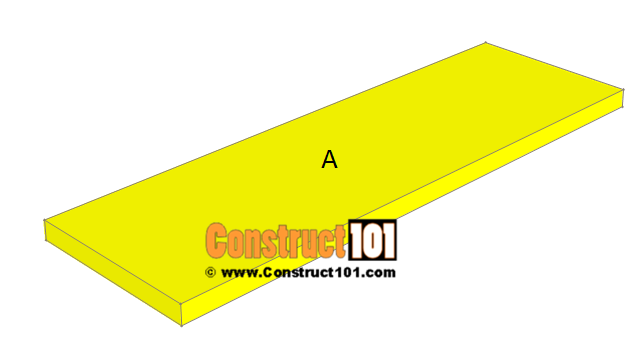

Tool tote plans, step 1.

Cut a 1×8 to 7 1/4″ x 1′ 10 1/2″ (A).

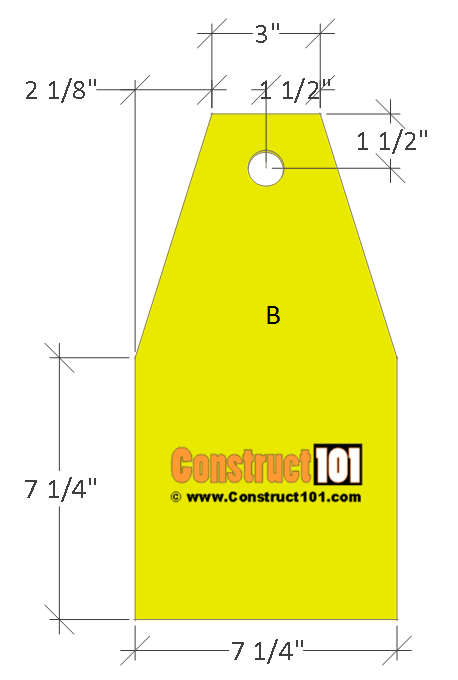

Tool tote plans, step 2 details.

Cut a 1×8 to 7 1/4″ x 1′ 2″ (B).



Tool tote plans, step 2.

Drill pilot holes, glue, and screw 2″ screws through (B) and into (A).



Tool tote plans, step 3'

Cut a 1×8 to 7 1/4″ x 2′ (C). Drill pilot holes, glue, and screw 2″ screws through (C) and into (A)(B).



Tool tote plans, step 4.

Cut a 1″ dowel to 2′ 2″ (D). Glue into place as shown above. Install 1/4″ pins, 1 1/2″ long to the ends of the (D), see illustration above for details.

Like these tool tote plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.
Construct101 offers free online version plans. These free plans also have a free print friendly PDF downloadable version free of ads. Click here to download.
