12x16 pergola plans, free PDF download.

12×16 Pergola Plans | PDF | Material List

12×16 pergola plans. Plans include a free PDF download (link at bottom of blog post), shopping list, cutting list, drawings, and measurements.

12×16 Pergola Plans | Overview

Material List

Shopping List

  • 4 – 6×6 – 8′
  • 4 – 2×8 – 18′
  • 13 – 2×6 – 14′
  • 4 – 2×6 – 8′
  • 15 – 2×2 – 18′

Hardware

Cutting List

  • 4 – 6×6 – 8′
  • 4 – 2×8 – 18′
  • 13 – 2×6 – 14′
  • 4 – 2×6 – 4′
  • 4 – 2×6 – 3′ 1 1/2″
  • 15 – 2×2 – 18′

6x6 post beam installation details.

Cut four 6×6’s to 8′ long. Install to a 12’x16′ area as shown in illustration above, measure and make sure the area is squared. Secure post with 6×6 post base.

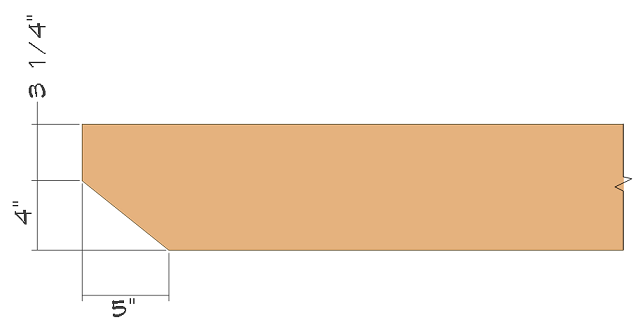

Front and back 2x8 rafter end cutting details.

Cut four 2×8’s to 18′ long. Cut the ends of the boards as shown on illustration above.

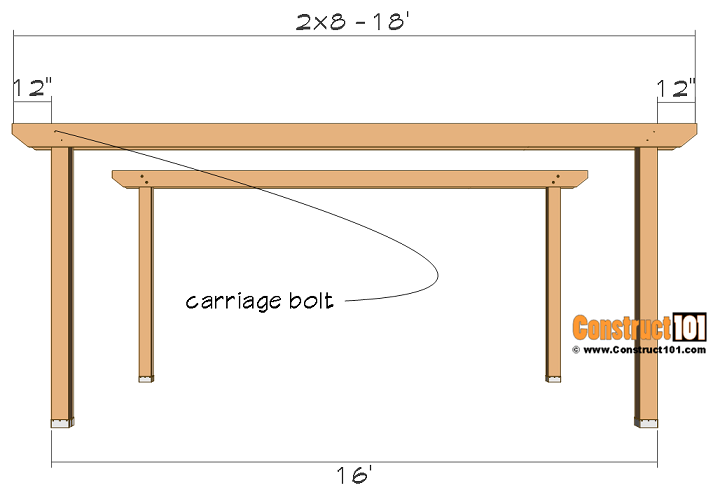

12x16 pergola plans, front and back 2x8 beam installation.

Install the four 18′ 2×8 boards to the front and back as shown on illustration above. Use clamps to hold boards in place, drill holes through post and boards, and secure with 9″ carriage bolts.


Side beam support rafter end cutting details.

Cut four 2×6’s to 14′ long. Cut the ends of the boards as shown on illustration above.


12x16 pergola plans, side beam supports.

Install the four 14′ 2×6 boards to the sides as shown on illustration above. Use clamps to hold boards in place, drill holes through post and boards, and secure with 9″ carriage bolts.


Top rafter beam cutting details.

Cut nine 2×6’s to 14′ long. Cut the ends of the boards as shown on illustration above. Notch 8 1/2” x 2” deep.


12x16 pergola plans, top rafter beam installation details.

Install the nine 14′ 2×6 boards as shown on illustration above. Pre-drill holes and screw 3″ deck screws through the side of the top board and into the bottom board.


Front and Back Brace

Cut four 2×6’s to 4′ long for the front and back brace. Cut the 2×6 boards as shown on illustration above.


Side Brace

Cut four 2×6’s to 3′ 1 1/2″ long for the side brace. Cut boards as shown on illustration above.


12x16 pergola plans, top rafter beams and corner brace.

Pre-drill holes and install the 2×6 corner brace using 3″ deck screws.


12x16 pergola plans, top slat installation.

Cut fifteen 2×2 to 18′ long. Space out boards 12″. Pre–drill all holes and screw 3″ deck screws through the top of the 2×2’s and into the 2×6 bottom boards.


12x16 pergola plans, free PDF download, material, list, drawings, and measurements.
