8×10 lean to shed plans. Plans include a free PDF download (PDF link at bottom of post), material list, measurements, and drawings.


8×10 Lean To Shed Plans | Overview


Material List

Shopping List

A shopping list is included. Since lumber can be purchased in different sizes the shopping list will vary. Study the cut list to see what will work best for you.
(material for door not included)

Floor

  • 2 – 2×6 (pressure treated) – 10ft.
  • 9 – 2×6 (pressure treated) – 8ft.
  • 3 – 4×4 (pressure treated) – 10ft.
  • 3 – 3/4in. tongue and groove plywood – 4ft. x 8ft. sheet

Walls

  • 4 – 2×4 – 10ft.
  • 30 – 2×4 – 8ft

Rafters

  • 6 – 2×4 – 10ft.
  • 4 – 2×4 – 8ft.

Siding

  • 9 – t1-11 exterior siding – 4ft. x 8ft. sheet

Roof

  • 6 – 2×4 – 12ft.
  • 3 – 2×4 – 8ft.

Door

Trim

  • 8 – 1×4 – 10ft.

Hardware


Cutting List

(material for door not included)

Floor

  • 2 – 2×6 (pressure treated) – 10ft.
  • 9 – 2×6 (pressure treated) – 7ft. 9in.
  • 3 – 4×4 (pressure treated) – 10ft.
  • 3 – 3/4in. tongue and groove plywood – 4ft. x 8ft. sheet (cut to size)

Walls

  • 4 – 2×4 – 10ft.
  • 8 – 2×4 – 7ft 4 1/2in.
  • 18 – 2×4 – 6ft. 5/8in.
  • 4 – 2×4 – 7ft. 5in.

Rafters

  • 6 – 2×4 – 9ft. 10in.
  • 4 – 2×4 – 8ft. (cut to size)

Siding

  • 9 – t1-11 exterior siding – 4ft. x 8ft. sheet (cut to size)

Roof

  • 6 – 2×4 – 12ft.
  • 3 – 2×4 – 8ft. (cut to size)

Door

Trim

  • 8 – 1×4 – 10ft. (cut to size)

Floor

8x10 shed floor framing.

Floor Frame

  • 2 – 2×6 (pressure treated) – 10ft.
  • 9 – 2×6 (pressure treated) – 7ft. 9in.
  • 3 – 4×4 (pressure treated) – 10ft.

Floor joist are 16in. on center. Use 3-1/2in. nails to assemble. Square the floor frame by measuring diagonally until both sides measure the same.


8x10 shed floor deck.

Floor Deck

  • 3 – 3/4in. tongue and groove plywood – 4ft. x 8ft. sheet (cut to size)

Measure and cut the 3/4in. tongue and groove plywood for the floor deck. Screw 2in. deck screws through the floor deck and into the floor frame.


Walls

Shed front wall framing.

Front Wall

  • 2 – 2×4 – 10ft.
  • 8 – 2×4 – 7ft 4 1/2in.

Wall studs are 24in. on center, assemble the wall frame using 3-1/2in. nails.

Frame the door and window, click links below for framing details:

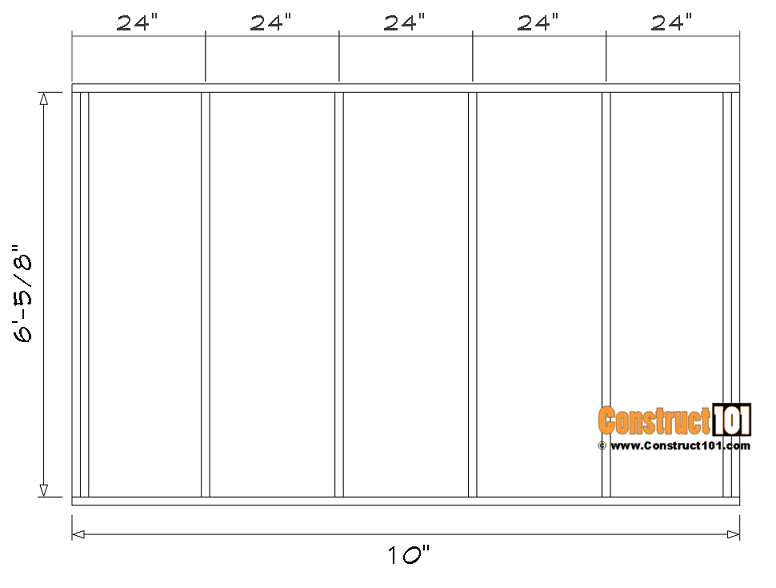

Shed back wall framing.

Back Wall

  • 2 – 2×4 – 10ft.
  • 8 – 2×4 – 6ft. 5/8in.

Wall studs are 24in. on center, assemble the wall frame using 3-1/2in. nails.


Shed right and left wall framing.

Right/Left Wall Frame

  • 4 – 2×4 – 7ft. 5in.
  • 10 – 2×4 – 6ft. 5/8in.

Frame the right and left wall frame as shown on drawing above. Use 3-1/2in. nails to assemble.


DIY shed wall framing.

Wall Framing

Raise and secure the wall frames using 3-1/2in. nails.


Rafters

8x10 lean to shed plans, rafter details.

Rafter Details

  • 6 – 2×4 – 9ft. 10in.

Cut the top and bottom rafter ends as shown on drawings below.


Rafter top end.

Rafter Top End

Cut the top rafter end as shown on drawing above.


Rafter bottom end.

Rafter Bottom End

Cut the bottom rafter end as shown on drawing above.


DIY shed framing.

Rafter Spacing

Rafters are 24in. on center, install rafters using 3-1/2in. nails.


8x10 lean to shed plans, framing, 2x4 roof blocking.

Roof Blocking and Top Side Wall Studs

  • 4 – 2×4 – 8ft. (cut to size)

Measure and cut the top wall studs for the right and left walls to size, notch around rafters and install using 3-1/2in. nails.

Cut 2×4 blocking to size and install between rafters using 3-1/2in. nails.


Siding

8x10 lean to shed plans, t1-11 exterior siding.

Siding Installation

  • 9 – t1-11 exterior siding – 4ft. x 8ft. sheet (cut to size)

Measure and cut the t1-11 exterior siding to size. Notch front and back top siding around rafters. Install siding using 1-1/2in. finishing nails.


Roof

8x10 lean to shed plans, 2x4 roof purlins.

Purlins

  • 6 – 2×4 – 12ft.

Install the 2×4 purlins as shown on drawing above using 3-1/2in. nails.


8x10 lean to shed plans, roof blocking.

2×4 Roof Blocking

  • 3 – 2×4 – 8ft. (cut to size)

Measure and cut 2×4 blocking and install between the purlins using 3-1/2in. nails.


8x10 lean to shed plans, corrugated roofing panels.

Roofing Panels

Install the metal corrugated roofing panels.


Door

8x10 lean to shed plans, shed door details.

Shed Door

Install door, use the link below for door construction details.


Trim

8x10 lean to shed plans, free PDF download.

1×4 Trim

  • 8 – 1×4 – 10ft. (cut to size)

Measure and cut 1×4’s to size for the shed corner trim and window trim. Install the 1×4 trim using 1-1/2in. finishing nails.
