Garden Stool Plans – Free PDF Download

Garden stool plans – plans include a free PDF download, cutting list, shopping list, measurements, and drawings.

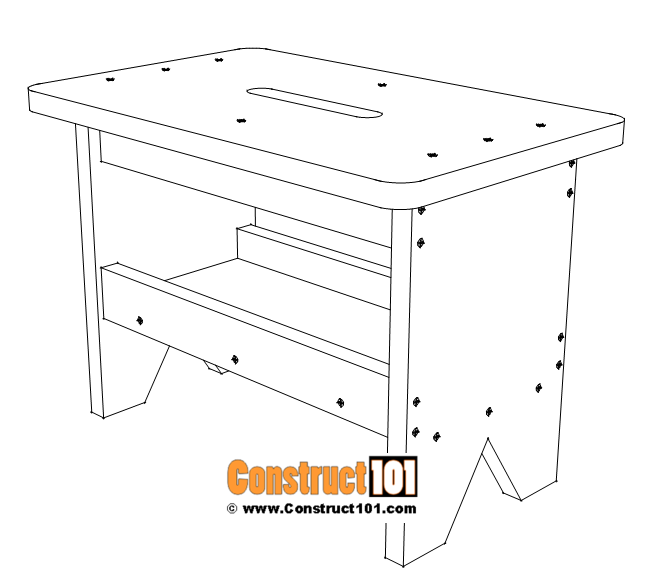

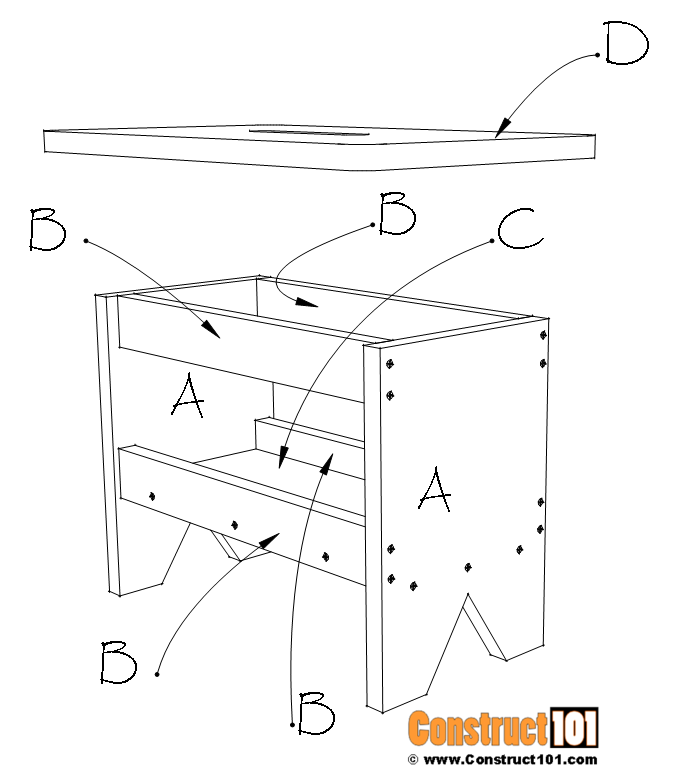

Garden Stool Plans – Overview

Garden Stool Plans – Material List

Shopping List

  • 1 – 1×12 – 8′
  • 2″ deck screws

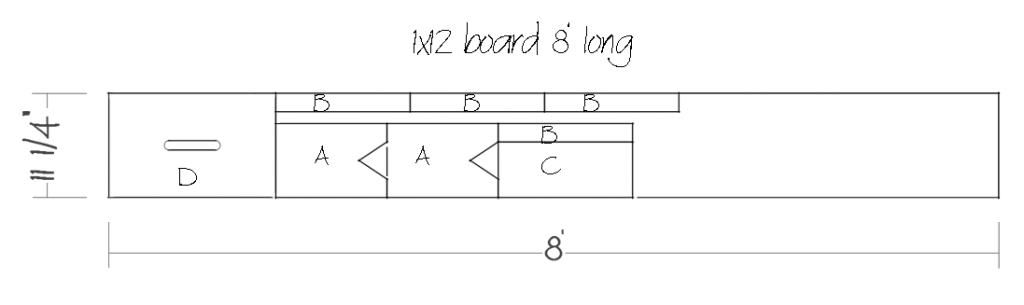

Cutting List

  • A – 2 – 8″ x 12″
  • B – 4 – 2″ x 14 1/2″
  • C – 1 – 6″ x 14 1/2″
  • D – 1 – 11 1/4″ x 18″

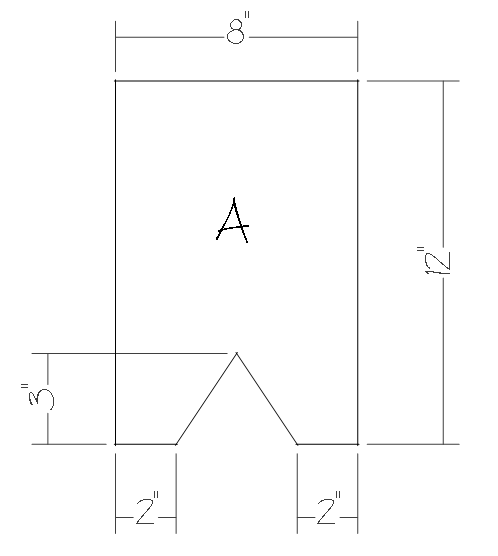

Cut two boards to 8″ x 12″ for the sides (A), cut as shown on drawing above.

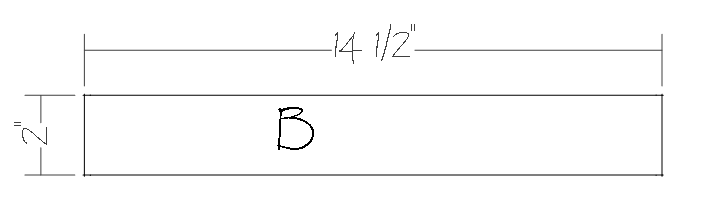

Cut four boards to 2″ x 14 1/2″ for the tray sides and top supports (B).

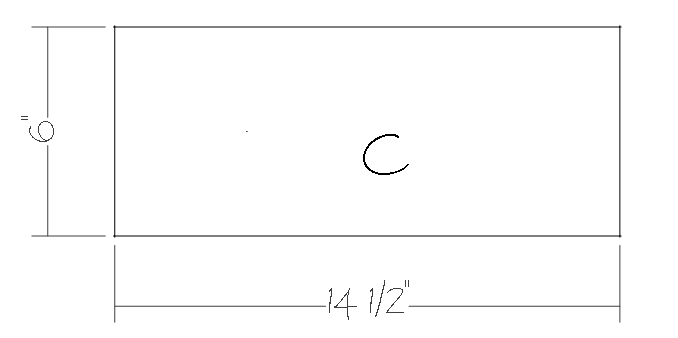

Cut one board to 6″ x 14 1/2″ for the bottom tray (C).

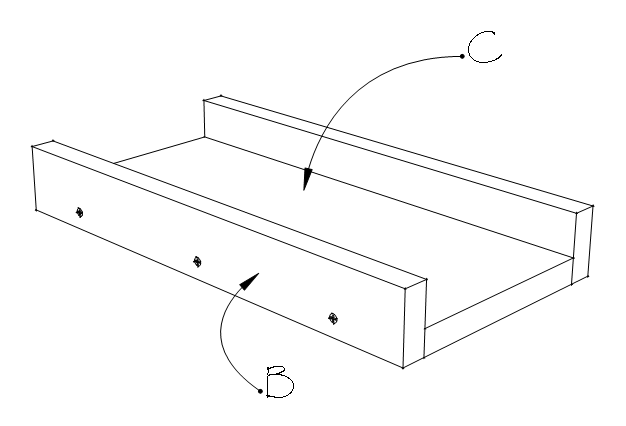

Pre-drill holes and assemble the tray as shown on drawing above using 2″ deck screws.

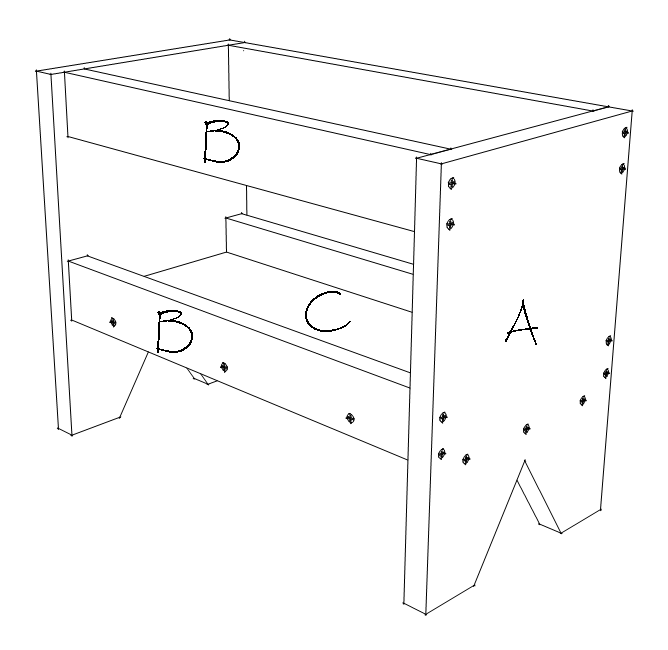

Attach the tray (B,C) and top supports (B) to the sides (A). Pre-drill holes and assemble as shown on drawings above using 2″ deck screws.

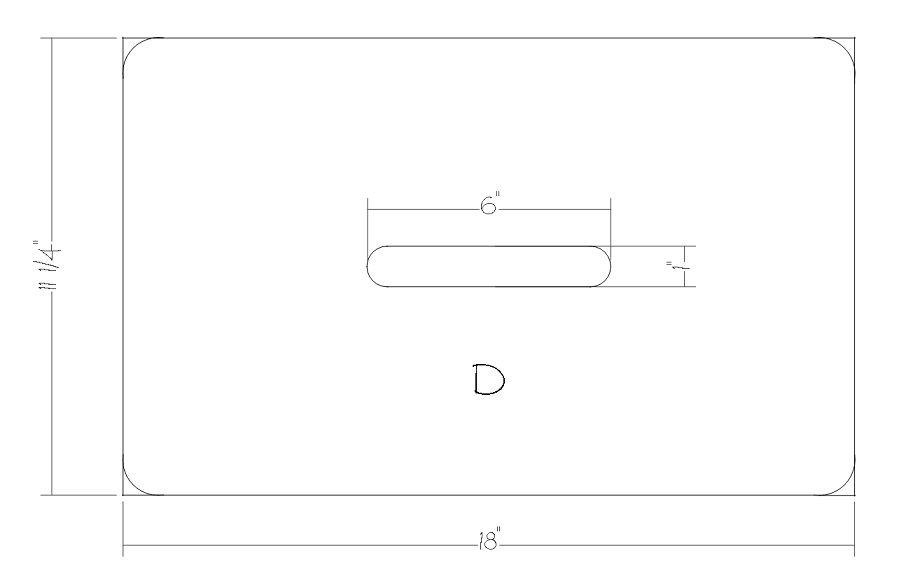

Cut one board to 11 1/4″ x 18″ for the top (D). Round corners and smooth out edges.

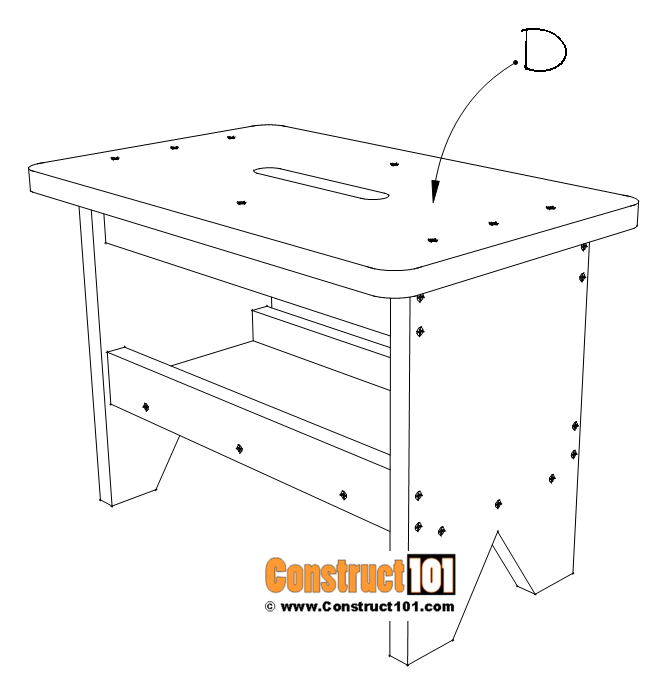

Pre-drill holes and attach top (D) as shown on drawing above using 2″ deck screws. Front, back, and sides, will have an overhang.
