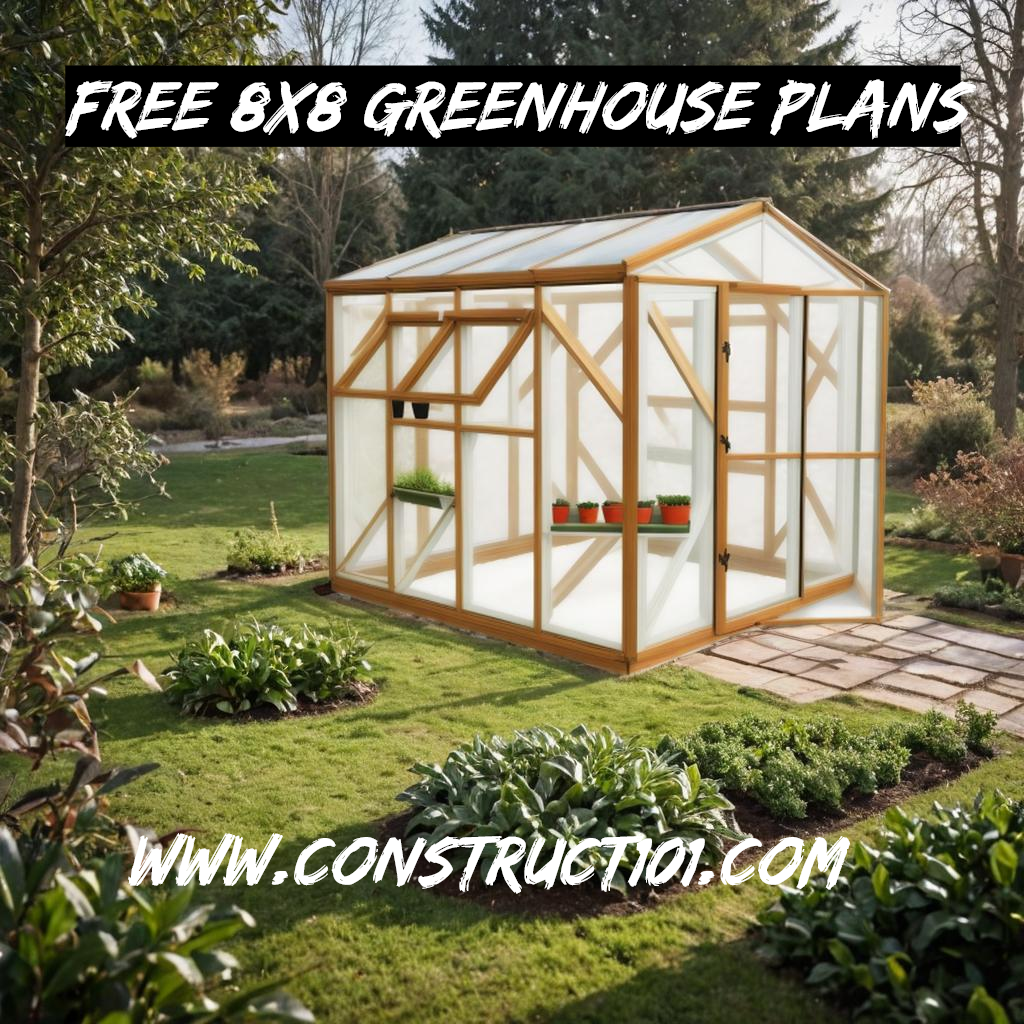

Greenhouse plans, 8'x8', free PDF download.

Greenhouse Plans – 8’x8′ – Step-By-Step Plans

Greenhouse plans – 8’x8′, plans include a free PDF download, step-by-step illustrated instructions, cutting list, and shopping list.

Greenhouse plans – 8’x8′ – Overview



Greenhouse Plans – 8’x8′ – Material List

Shopping List

Shopping List

Foundation

4 – 4×4 (pressure treated) – 8′

Side Walls

14 – 2×4 – 8′

Front/Back Wall

12 – 2×4 – 8′

Wall Brace

8 – 1×4 – 8′

Roof

3 – 2×4 – 8′

5 – 2×4 – 10′

2 – 1×4 – 8′

Door

4 – 2×2 – 8′

Vent/Window

6 – 2×2 – 8′

Trim

48 – 1×2 – 8′

Hardware

3 1/2″ deck screws

1 1/4″ deck screws

3 1/2″ galvanized nails

3″ galvanized nails

greenhouse plastic

staples

door handle

hinges

Cutting List

Cutting List

Foundation

4 – 4×4 (pressure treated) – 8′

Side Walls

4 – 2×4 – 8′

10 – 2×6 – 6′

10 – 2×4 – 1′ 10 1/2″

8 – 1×4 – 3′ 2 11/16″ (45 degree angle cuts on both end, same direction)

Front/Back Wall

4 – 2×4 – 7′ 5″

8 – 2×4 – 6′

8 – 1×4 – 3′ 5 1/8″ (45 degree angle cuts on both end, same direction)

Roof

3 – 2×4 – 8′

2 – 2×4 – 1′ 2 3/8″

10 – 2×4 – 4′ 2 7/16″

2 – 1×4 – 8′

Door

2 – 2×2 – 6′ 1 1/2″

3 – 2×2 – 3′

Vent/Window

12 – 2×2 – 1′ 10 1/2″

12 – 2×2 – 2′

Trim

48 – 1×2 – 8′ (cut to size)

Greenhouse plans, 8'x8', foundation.

Use four pressure treated 4×4’s 8′ long for the foundation. Notch the corners as shown on illustration above. Secure the corners using 3 1/2″ screws. To keep the foundation from shifting secure it down with wood spikes.



Greenhouse plans, 8'x8', side wall.

Build the side walls using 2×4’s. Cut four 2×4’s to 8′ for the top and bottom plate. Cut ten 2×4’s to 6′ for the wall studs. Install as shown on illustration above using 3 1/2″ nails.

Cut eight 1×4’s to 3′ 2 11/16″ for the wall brace. The ends will have 45 degree angle cuts in the same direction. Notch the wall studs around the brace as shown on illustration above. Nail 3″ nails through the brace and into the studs.

Cut ten 2×4’s to 1′ 10 1/2″ to make the vent/window frames, install as shown above using 3 1/2″ nails.



Greenhouse plans, 8'x8', front/back walls.Build the front and back wall using 2×4’s. Cut four 2×4’s to 7′ 5″ for the top and bottom plate. Cut eight 2×4’s 6′ long for the studs. Install as shown on illustration above using 3 1/2″ nails.

Cut eight 1×4’s to 3′ 5 1/8″ for the wall brace. The ends will have 45 degree angle cuts in the same direction. Notch the wall studs around the brace as shown on illustration above. Nail 3″ nails through the brace and into the studs.



Greenhouse plans, 8'x8', top ridge board.Build the top ridge using a 2×4. Cut two 2×4’s to 1′ 2 3/8″ long and one 2×4 to 8′ long. Assemble as shown on illustration above using 3 1/2″ nails.

Remove the 2×4 plate on the door entrance as shown on illustration above.

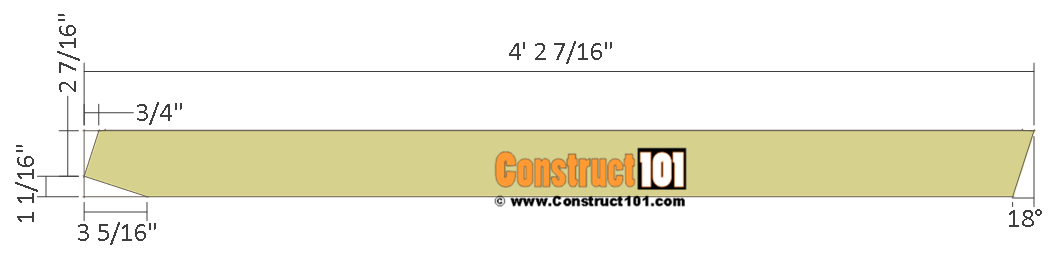

Greenhouse plans, 8'x8', rafter.Cut ten 2×4’s to 4′ 2 7/16″ long for the rafters. Cut the ends of the rafters as shown on illustration above.



Greenhouse plans, 8'x8', rafters 24" O.C.Install the rafters as shown on illustration above using 3 1/2″ nails. Notch the rafters and install a 1×4 brace to the roof. Nail 3″ nails through the brace and into the rafters.



Greenhouse plans, 8'x8', 2x4 roof side trim.

Cut two 2×4’s to 8′ long, rip the 2×4’s to 2 9/16″, cut an 18 degree bevel cut to the edge. Nail 3 1/2″ nails through the 2×4 and into the rafters.



Greenhouse plans, 8'x8', plastic.

Install the greenhouse plastic using staples.

Greenhouse plans, 8'x8', 1x2 trim.

Cut 1×2 trim to size and install as show on illustration above. To make replacing the plastic easier if required use 1 1/4″ deck screws, screw through the 1×2 trim and into the frame.



Greenhouse plans, 8'x8', door frame.

Build the door frame using 2×2’s. Cut two 2×2’s to 6′ 1 1/2″ long and three 2×2’s to 3′ long. Notch and assemble as shown on illustration above using 1 1/4″ deck screws.



Greenhouse plans, 8'x8', door.

Staple the greenhouse plastic to the door frame. Cut 1×2 trim to size and install over plastic, screw 1 1/4″ deck screws through the trim and into the frame. Install hinges and door handle.



Greenhouse plans, 8'x8', vent/window.

Build the window/vent frames using 2×2’s. Cut twelve 2×2’s to 1′ 10 1/2″ long and twelve 2×2’s to 2′ long. Notch the corners and assemble using 1 1/4″ deck screws.



Greenhouse plans, 8'x8', vent/window parts.

Staple the greenhouse plastic to the window/ vent frame. Cut 1×2 trim to size and install over plastic, screw 1 1/4″ deck screws through the trim and into the frame. Install the hinges to the window/vents.



Greenhouse plans, 8'x8', free at Construct101.Install door and window/vents.

Like these greenhouse plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.
Construct101 offers free online version plans. These free plans also have a free print friendly PDF downloadable version free of ads. Click here to download.

Save

Save
