Pavilion Plans 14×16 DIY Free Outdoor Projects

Pavilion plans DIY 14’x16′ pavilion. Plans include free PDF download, shopping list, cutting list, and step-by-step illustrated instructions.

Pavilion Plans 14×16 – Overview

Pavilion Plans 14×16 – Material List

Shopping List

Shopping List

(D) 1 – 6×6 – 10′

(A),(G) 12 – 6×6 – 12′

(B),(C),(E) 5 – 6×6 – 16′

(F) 18 – 2×6 – 12′

(H) 12 – 1/2″ plywood – 4’x8′ sheet

3 1/2″ screws

4 1/2″ screws

shingles

roofing felt

roof tacks

roof staples

Cutting List

Cutting List

A – 8 – 6×6 – 12′

B – 2 – 6×6 – 16′

C – 2 – 6×6 – 16′

D – 2 – 6×6 – 5′

E – 1 – 6×6 – 16′

F – 18 – 2×6 – 11′ 1 7/16″

G – 16 – 6×6 – 3′

H – 12 – 1/2″ plywood – 4’x8′ sheet cut to size

Pavilion plans 14x16 - step 1

Cut eight 6×6’s to 12′ long (A), square the area and install as showing above. Poles are buried 2′ deep.

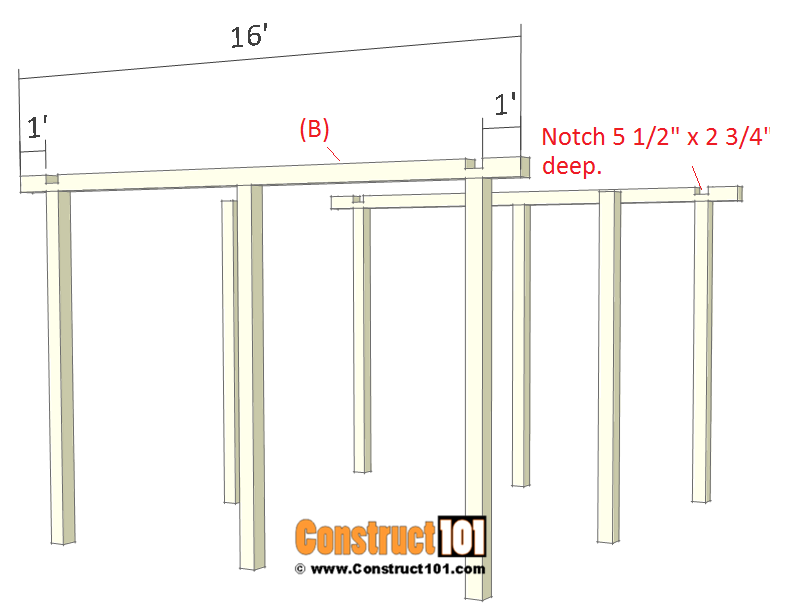

Diy pavilion plans step 2



Cut two 6×6’s to 16′ long (B). Notch and install as shown above, pre-drill all holes and secure with 4 1/2″ screws.

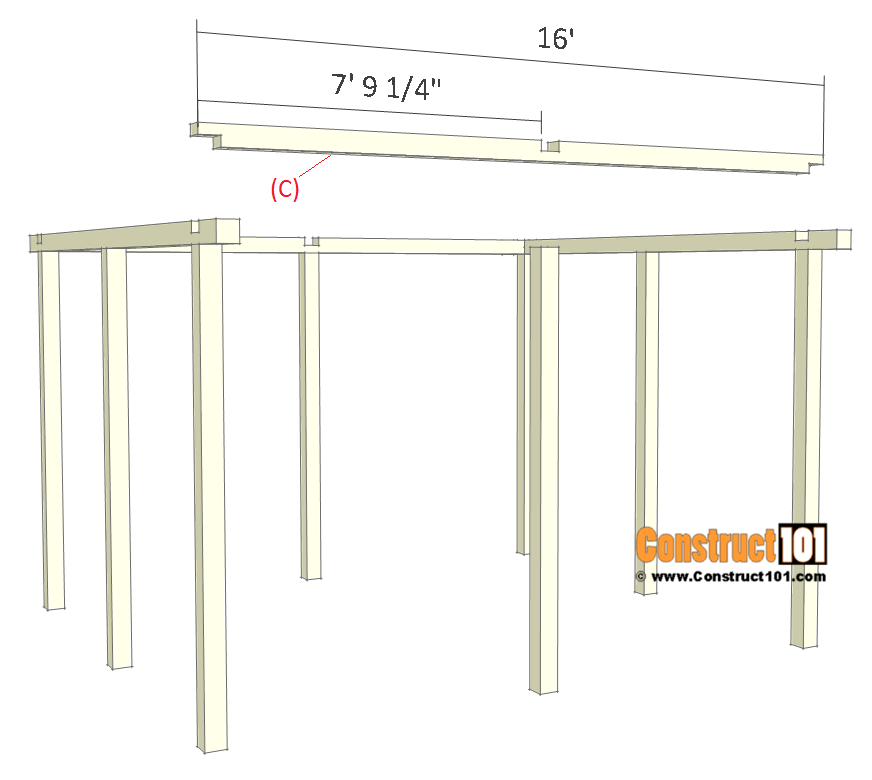

Pavilion plans 14x16 - step 3

Cut two 6×6’s to 16′ long (C). Notch 5 1/2″ x 2 3/4″ deep, install as shown above, pre-drill all holes and secure with 4 1/2″ screws.

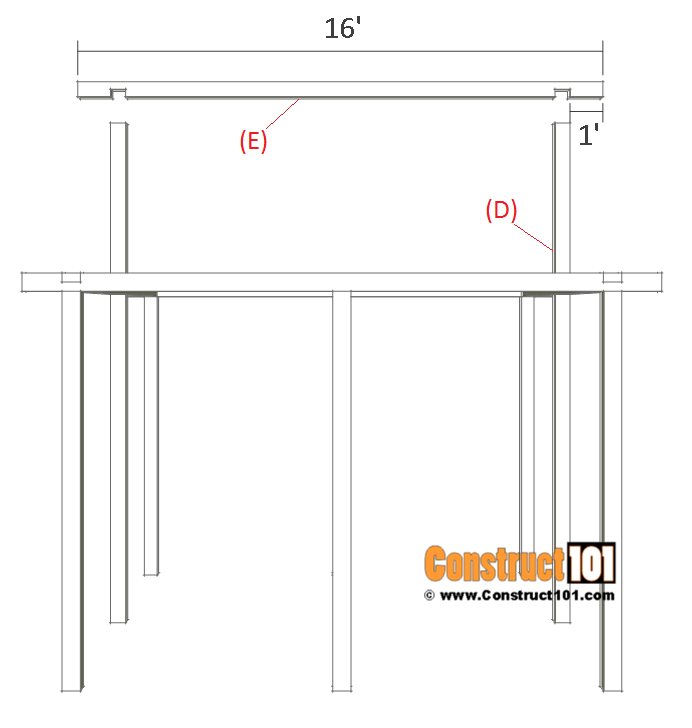

Pavilion plans 14x16 - step 4

Cut two 6×6 to 5′ long (D). Cut one 6×6 to 16′ long (E) and notch 5 1/2″ x 2 3/4″ deep as shown in illustration above. Pre-drill all holes, install as shown on illustration above using 4 1/2″ screws.

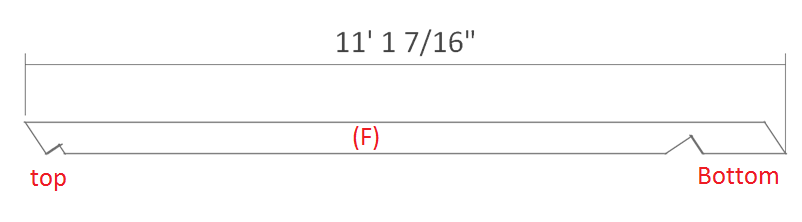

Pavilion plans 14x16 - rafter 1

Cut eighteen 2×6’s to 11′ 1 7/16″ long (F) for the rafters. See illustrations below for details.

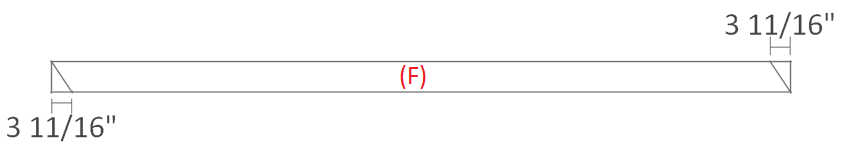

Pavilion plans 14x16 - rafter 2

Cut the ends of the 2×6 rafters as shown on illustration above.

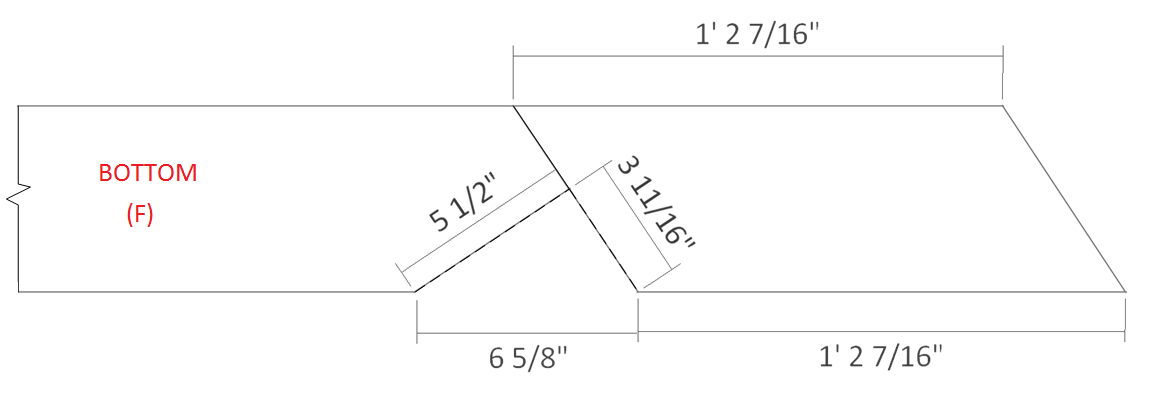

Pavilion plans 14x16 - rafter bottom.

Cut one end of the rafter as shown above.

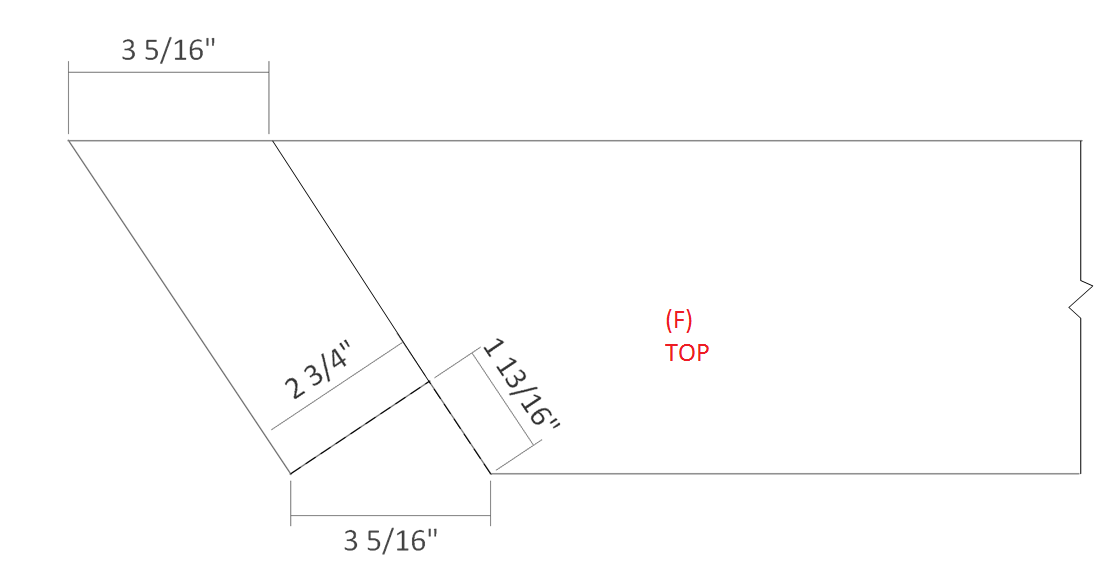

Pavilion plans 14x16 - rafter top.

Cut the opposite end of the rafter as shown on illustration above.

Pavilion plans 14x16 - step 5

Install the rafters 24″ O.C. pre-drill all holes and secure with 3 1/2″ screws.

Pavilion plans 14x16 - step 6

Cut sixteen 6×6’s to 3′ long (G), cut 45-degree angle cuts on both ends. Pre-drill all holes and install as shown on illustration above using 4 1/2″ screws.

Pavilion plans 14x16 - step 7

Cut to size and install the roof deck using 2″ nails.

Pavilion plans 14x16

Install shingles. Illustration above shows pavilion with 2×4 railing.

Like these pavilion plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.
Construct101 offers free online version plans. These free plans also have a free print friendly PDF downloadable version free of ads. Click here to download.
