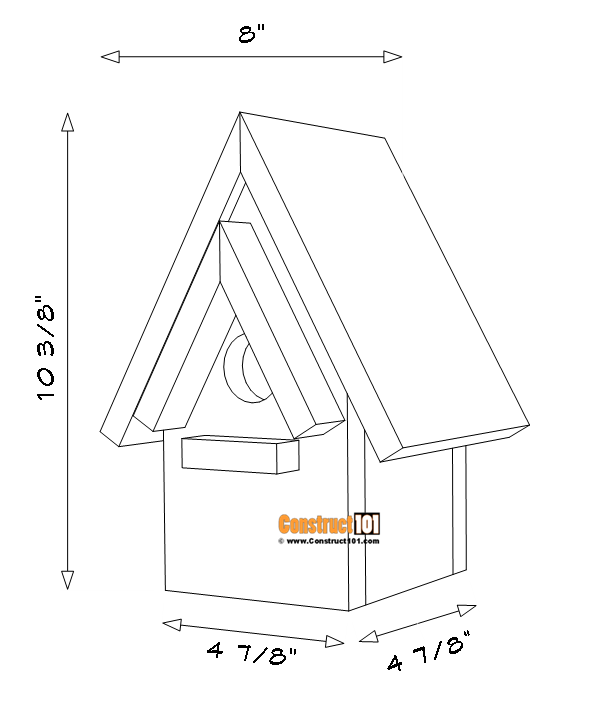

4×4 birdhouse post cap plans, made with one fence board. Birdhouse plans include a PDF download (PDF link at bottom of blog post), cutting list, shopping list, measurements, and drawings.
4×4 Birdhouse Post Cap Plans | Material List

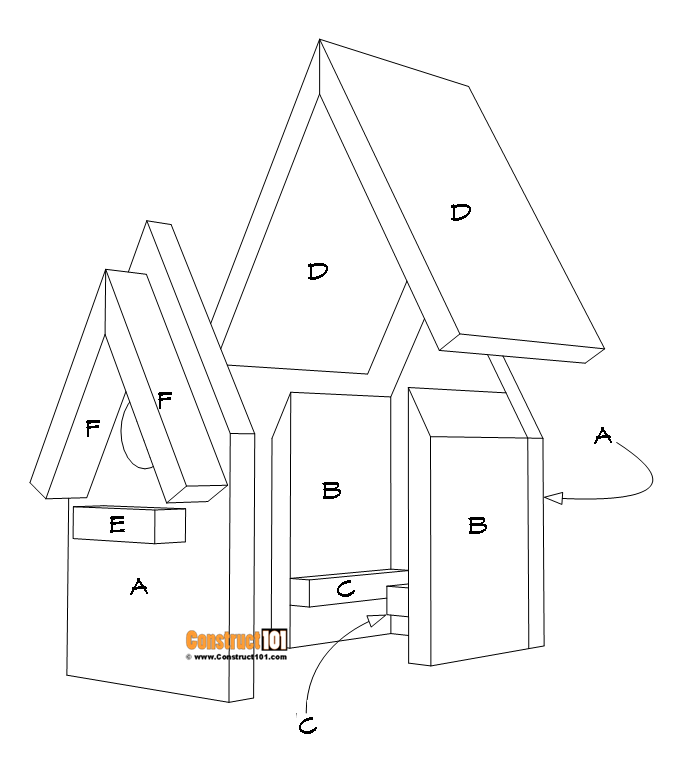

Cutting List
| Parts | Qty. | Disc. | Size |
| A | 2 | fence board | 4 7/8 in. x 9 1/4 in. |
| B | 2 | fence board | 3 5/8 in. x 6 in. |
| C | 2 | fence board | 5/8 in. x 5/8 in. |
| D | 2 | fence board | 5 1/2 in. x 8 in. |
| E | 1 | fence board | 3/4 in. x 2 1/2 in. |
| F | 2 | fence board | 1 in. x 4 3/4 in. |
Shopping List
| Qty. | Disc. | Size |
| 1 | fence board | 5/8 in. x 5 1/2 in. x 6 ft. |
| finish nails | 16 gauge 1 1/4 in. | |
| finish nails | 16 gauge 1 in. | |
| exterior wood glue | ||
| deck screws | 1 1/2 in. |

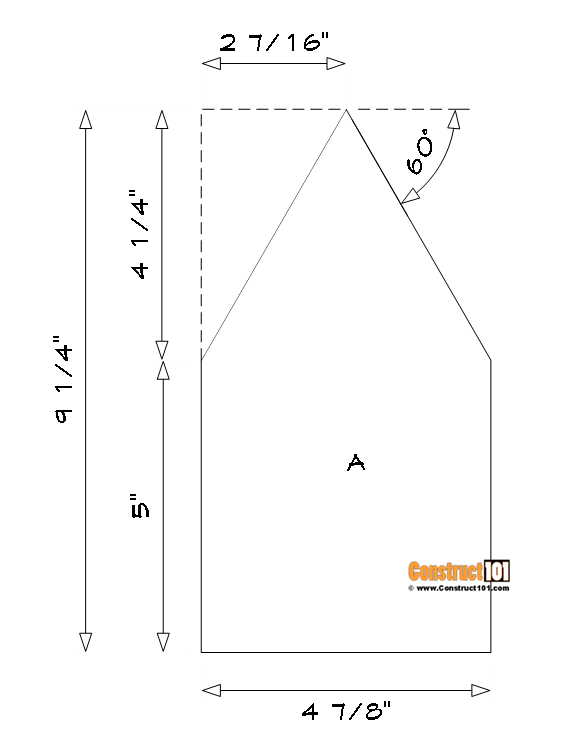

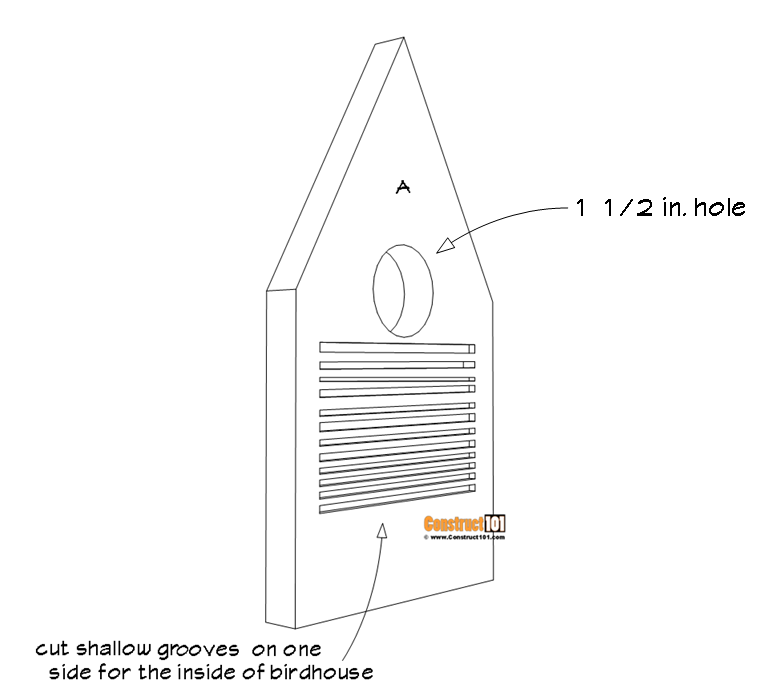

- A -2 – fence board – 4 7/8 in. x 9 1/4 in.
Cut two boards as shown on drawing for the front and back.
Drill a 1 1/2 in. hole for the entrance to the front board.
Cut shallow grooves on one side for the inside of birdhouse.

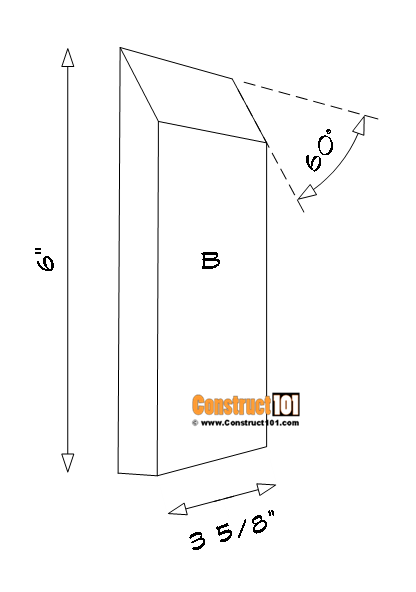

- B – 2 – fence board – 3 5/8 in. x 6 in.
Cut two boards as shown on drawing for the sides.
The top end will have a 60-degree bevel cut.

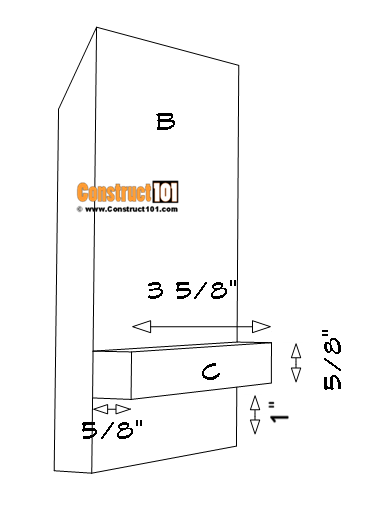

- C – 2 – fence board – 5/8 in. x 5/8 in.
Cut to boards as shown on drawing for the 4×4 post support.
Attach as shown using exterior wood glue and 16 gauge 1 in. finish nails.

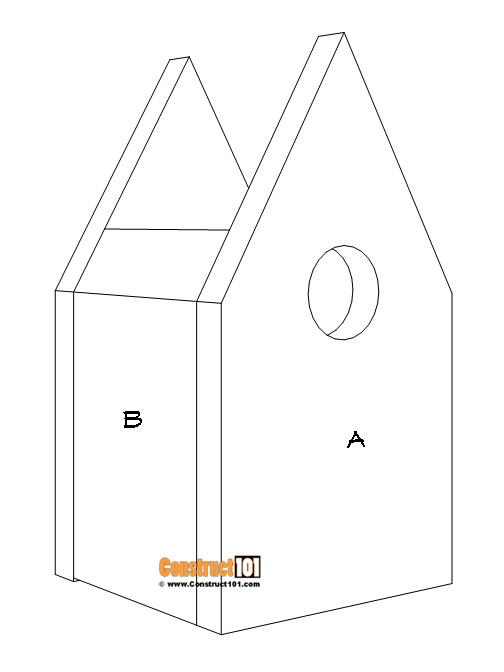

Attach the front, back, and sides using exterior wood glue and 16 gauge 1 1/4 in. finish nails.

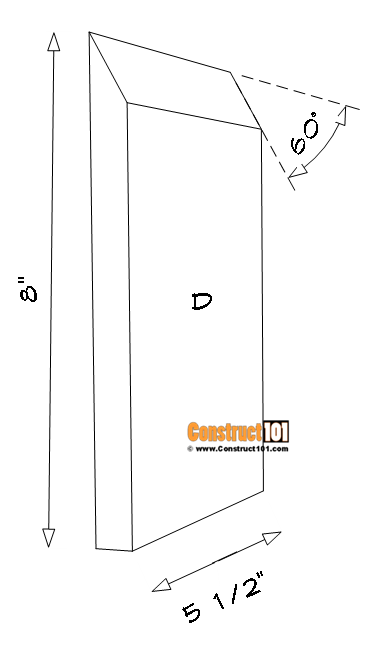

- D – 2 – fence board – 5 1/2 in. x 8 in.
Cut two boards as shown on drawing for the roof. The top end will have a 60-degree bevel cut.

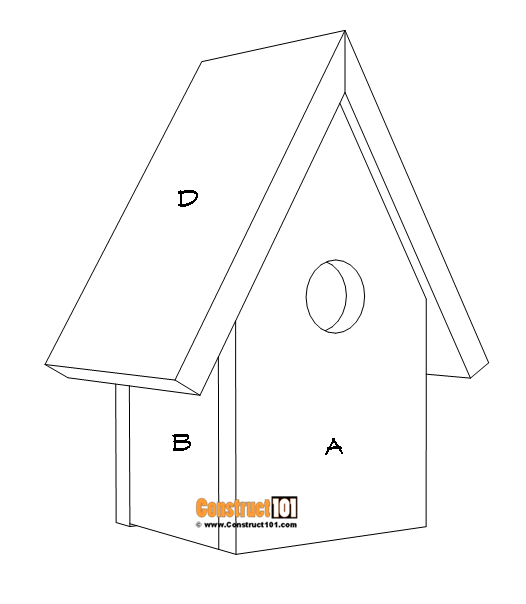

Attach the roof using exterior wood glue and 16 gauge 1 1/4 in. finish nails.

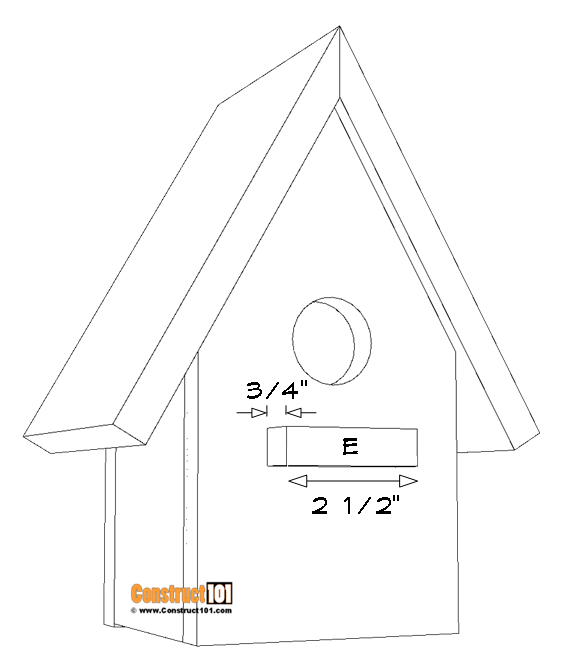

- E – 1 – fence board – 3/4 in. x 2 1/2 in.
Cut one board as shown on drawing for the birdhouse perch.
Attach using exterior wood glue and 16 gauge 1 in. finish nails.

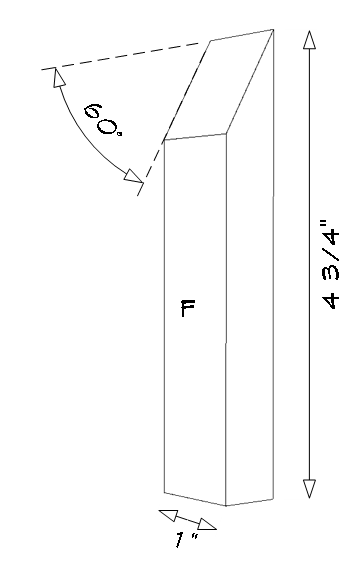

- F – 2 – fence board – 1 in. x 4 3/4 in.

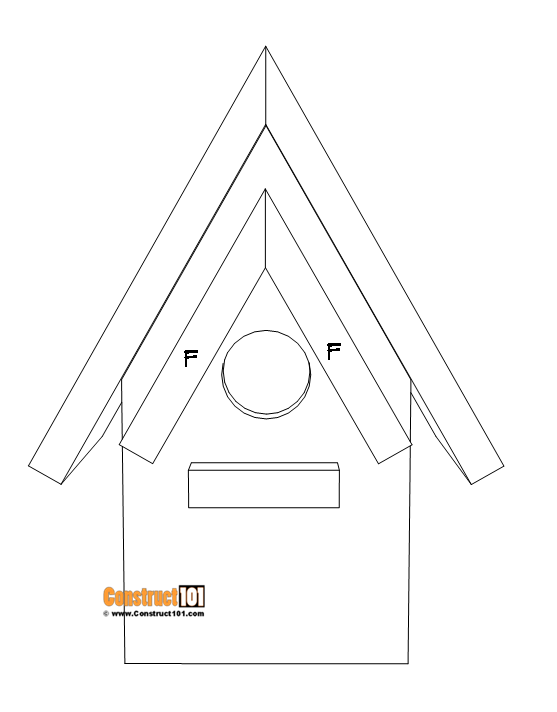

Cut two boards as shown on drawing, the top end will have a 60-degree bevel cut.
Attach using exterior wood glue and16 gauge 1 1/4 in. finish nails.

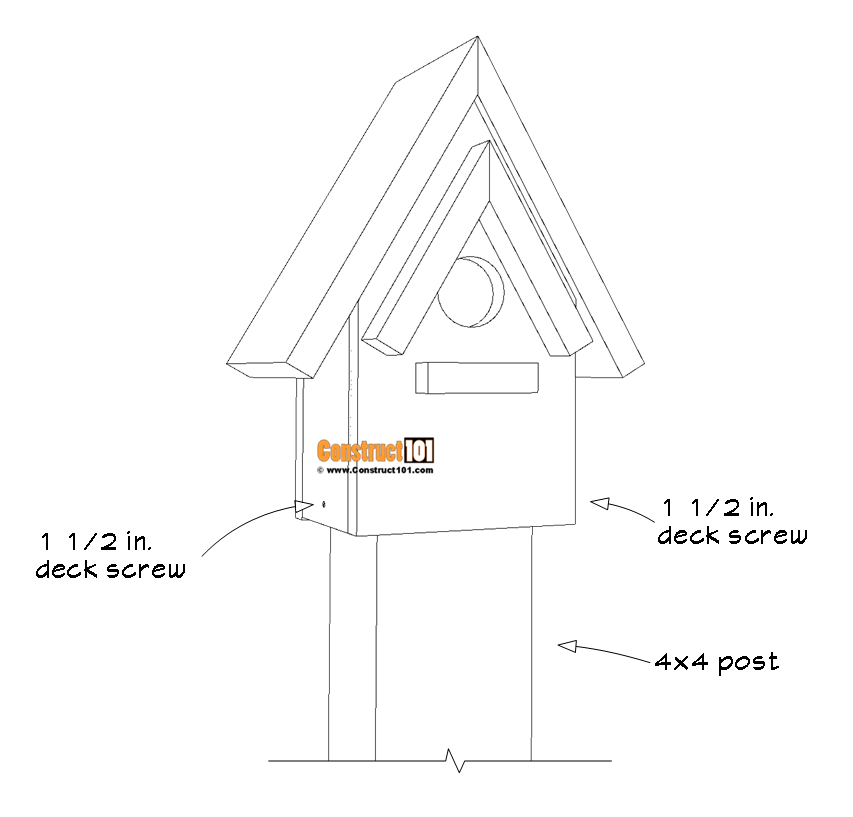

Secure the birdhouse to the 4×4 post using 1 1/2 in. deck screws.
Remove screws and remove birdhouse from post to clean out.
4×4 BIRDHOUSE POST CAP PLANS | PDF DOWNLOAD
PDF Download
If you like this project, let me know, leave a comment below, thanks. 🙂
