Arched Garden Bridge Plans – Landscape Bridge

Arched garden bridge plans. Plans include step-by-step illustrated drawings, shopping list, cutting list, and free PDF download.

Arched Garden Bridge Plans – Overview

Arched Garden Bridge Plans – Material List

Shopping List

Shopping List

2 – 2×12 pressure treated – 10′

2 – 2×4 pressure treated – 8′

10 – 2×6 – 8′

2 – 4×4 – 8′

2 – 1×10 – 8′

6 – 4×4 post caps

3″ deck screws

3 1/2″ deck screws

Cutting List

Cutting List

A – 2 – 2×12 pressure treated – 10′

B – 4 – 2×4 pressure treated – 3′ 5″

C -20 – 2×6 – 4′

D – 6 – 4×4 – 2′ 6″

E – 2 – 1×10 – 8′

Arched garden bridge plans - ACut two 10′ 2×12’s (A) as shown on illustration above.

Arched garden bridge plans - BCut four 2×4’s to 3′ 5″ long. Pre-drill holes and assemble as shown above. Screw 3 1/2″ deck screws through (A) and into (B).

Arched garden bridge plans - CCut 20 2×6’s to 4′ long (C). Cut a 45-degree bevel cut on the first and last 2×6. Assemble as shown on illustration above, leaving a 2″ overhang on the sides. Gap boards 1/2″ – 3/4″. Pre-drill holes and screw 3 1/2″ deck screws through (C) and into (A).

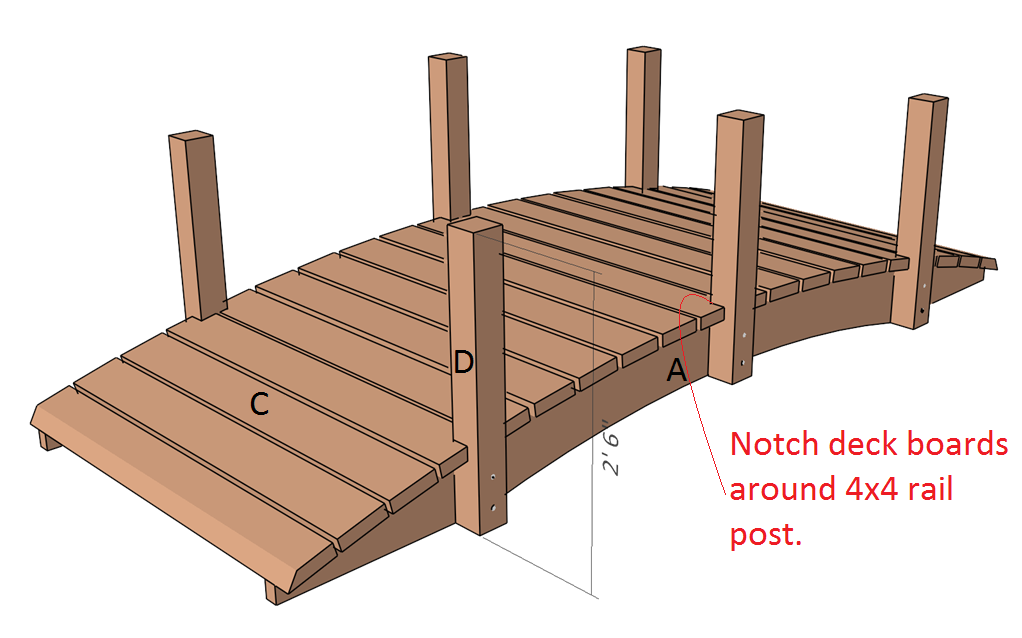

Arched garden bridge plans - DCut six 4×4’s to 2′ 6″ long (D). Assemble as shown on illustration above. Notch the 2×6 deck boards around the 4×4 rail post. Drill holes and install the 4×4’s with 5 1/2″ carriage bolts.

Arched garden bridge plans - ECut two 8′ 1×10’s (E) as shown on illustration above.

Arched garden bridge plans

Pre-drill and install rails (E) using 3″ deck screws. Install 4×4 post caps.

Like these arched garden bridge plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.
Construct101 offers free online version plans. These free plans also have a free print friendly PDF downloadable version free of ads. Click here to download.
