Free build it yourself potting bench plans. Plans come with a free PDF download (link at bottom of blog post), material list with cutting and shopping list, and step-by-step illustrated instructions.
Potting Bench Plans – Overview
Simple Potting Bench Plans – Material List
Shopping List
Shopping List
6 – 1×4 – 8′
6 – 1×6 – 8′
1 – 2×4 – 10′
1 – 2×4 – 8′
1 – 1/2″ dowel – 1′
1 1/4″ deck screws
Cutting List
Cutting List
A – 2 – 1×4 – 5′
B – 6 – 1×4 – 1′ 10 1/2″
C – 2 – 1×4 – 4′
D – 2 – 2×4 – 2′ 9″
E – 2 – 2×4 – 5′
F – 4 – 1×4 – 2′
G – 4 – 1×6 – 4′
G – 1 – 1×4 – 4′
H – 8 – 1×6 – 2′
I – 4 – 1×6 – 7″
J – 2 – 1×6 – 5′
K – 3 – 1/2 dowel – 4″
Cut two 1×4’s to 5″ long (A). Cut four 1×4’s to 1′ 10 1/2″ long (B). Pre-drill holes and assemble as shown on illustration above using 1 1/4″ deck screws.
Cut two 1×4’s to 4′ long (C). Cut two 1×4’s to 1′ 10 1/2″ long (B). Pre-drill holes and assemble as shown above using 1 1/4″ deck screws.
Cut the front and back legs and assemble as shown above.
Cut two 2×4’s to 2′ 9″ long (D). Pre-drill holes and screw 1 1/4″ deck screws through (C) and into (D). Cut two 2×4’s to 5′ long (E). Pre-drill holes and screw 1 1/4″ deck screws through (C) and into (E).
Cut four 1×4’s to 2′ long (F). Pre-drill holes and assemble as shown above using 1 1/4″ deck screws.
Cut four 1×6’s and one 1×4 to 4′ long (G). Pre-drill holes and assemble as shown on illustration above using 1 1/4″ deck screws.
Cut eight 1×6’s to 2′ long (H). Gap the boards (H) out evenly, pre-drill and assemble as shown on illustration above using 1 1/4″ deck screws.

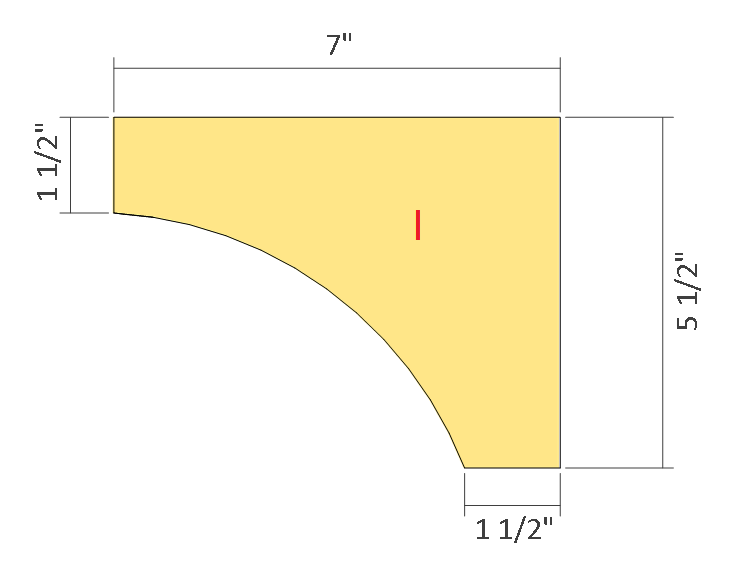

Cut four 1×6’s to 7″ long (I). Cut as shown on illustration above.
Cut two 1×6’s to 5′ long (J). Pre-drill holes and install the shelves as shown on illustration above using 1 1/4″ deck screws. Drill holes and install 1/2 dowels (K).
