12×12 pergola plans, plans include a PDF download (link at bottom of blog post), shopping list, cutting list, measurements, step-by-step detailed drawings, and instructions.
12×12 Pergola Plans – Overview
12×12 Pergola Plans – Material List
Shopping List
Shopping List
4 – 6×6 – 8′
15 – 2×6 – 14′
4 – 2×6 – 8′
15 – 2×2 – 14′
Hardware
4 – 6×6 post base
16 – 9″ carriage bolts, nuts, washers
3″ deck screws
Cutting List
Cutting List
4 – 6×6 – 8′
15 – 2×6 – 14′
4 – 2×6 – 4′
4 – 2×6 – 3′ 4 5/16″
15 – 2×2 – 14′
Cut four 6×6’s to 8′ long. Install to a 12’x12′ area as shown in illustration above, measure and make sure area is squared. Secure with 6×6 post base.

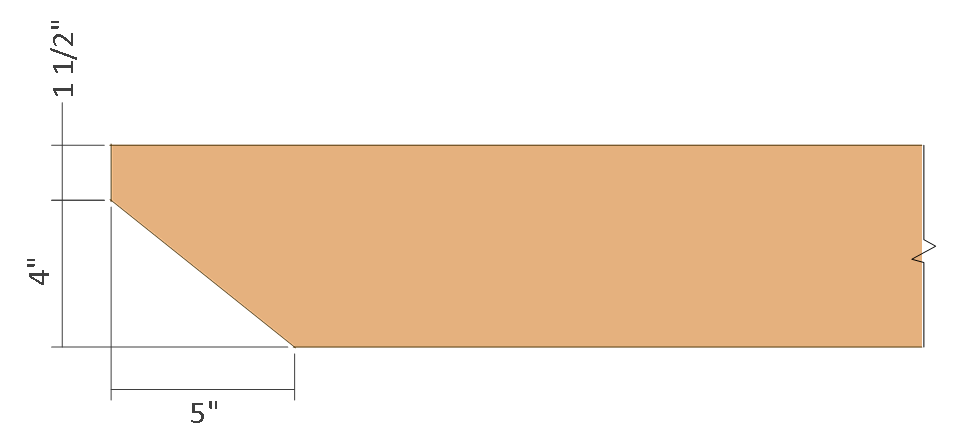

Cut eight 2×6’s to 14′ long. Cut the ends of the boards as shown on illustration above.
Install the four 14′ 2×6 boards to the front and back as shown on illustration above. Use clamps to hold boards in place, drill holes through post and boards, and secure with 9″ carriage bolts.
Install the four 14′ 2×6 boards to the sides as shown on illustration above. Use clamps to hold boards in place, drill holes through post and boards, and secure with 9″ carriage bolts.

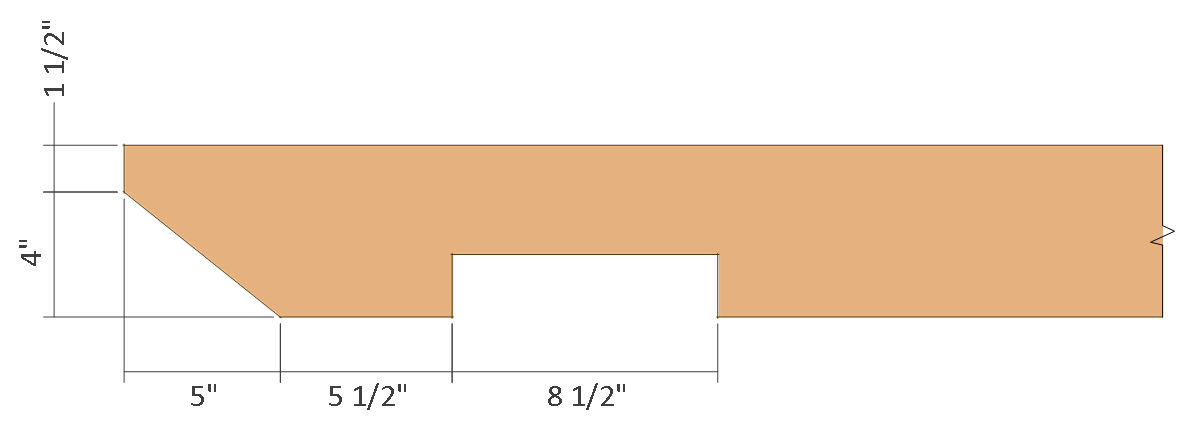

Cut seven 2×6’s to 14′ long. Cut the ends of the boards as shown on illustration above. Notch 8 1/2″ x 2″ deep.
Install the seven 14′ 2×6 boards as shown on illustration above. Pre-drill holes and screw 3″ deck screws through the side of the top board and into the bottom board.
Cut four 2×6’s to 4′ long, for the front and back brace. Cut boards as shown on illustration above.

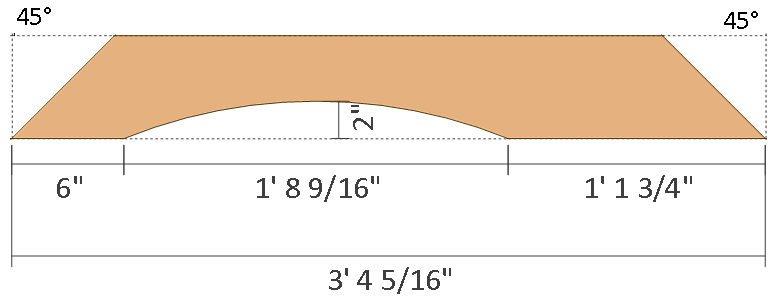

Cut four 2×6’s to 3′ 4 5/16″ long, for the side brace. Cut boards as shown on illustration above.
Pre-drill holes and install the 2×6 corner brace using 3″ deck screws.
Cut fifteen 2×2 to 14′ long. Space out boards 1′. Pre–drill all holes and screw 3″ deck screws through the top of the 2×2’s and into the 2×6 bottom boards.
