3 Tier Display Crate Plans – Fruit & Vegetable Storage Bins

3 tier display crate plans, fruit & vegetable storage bins, plans include a free PDF download (link at bottom of blog post), step-by-step illustrated details, material list with shopping and cutting list.

3 Tier Display Crate Plans – Fruit & Vegetable Storage Bins- Material List

Cutting List

A – 6 – 1×6 – 10″

B – 9 – 1×3 – 1′ 3″

C – 12 – 1×3 – 1′ 3″

D – 2 – 1×3 – 1′ 1″

E – 2 – 1×4 – 3′

Shopping List

6 – 1×3 – 8′

1 – 1×4 – 8′

1 – 1×6 – 8′

1 1/4″ wood screws

3 tier display crate, fruit & vegetables storage bins, front view.

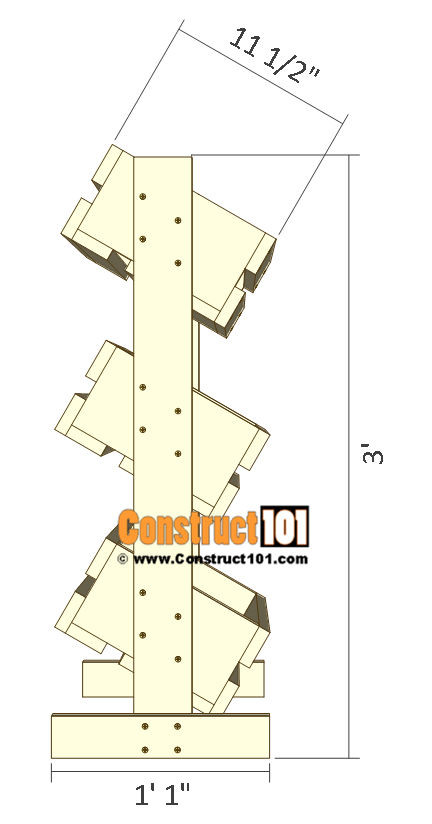

3 tier display crate, fruit & vegetables storage bins, side view.

Build 3 crates:

Cut 6 1×6’s to 10″ long (A). Cut nine 1×3’s to 1′ 3″ long (B). Cut twelve 1×3’s to 1′ 3″ long (C).

Assemble as shown on illustration above using 1 1/4″ wood screws.

Cut two 1×3’s to 1′ 1″ long (D). Cut two 1×4’s to 3′ long (E).

Assemble as shown on illustration above using 1 1/4″ wood screws.

Attach the crates as shown on illustration above using 1 1/4″ wood screws.

Like this 3 tier display crate plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.

PDF DOWNLOAD
