3 tier planter plans, plans include a free PDF download (link at bottom of blog post), shopping list, cutting list, and step-by-step drawings with instructions. Easy DIY project, can be built in just a couple of hours.
3 Tier Planter Plans – Overview
3 Tier Planter Plans – Material List
Shopping List
Shopping List
2 – 1×6 – 8′ (or 3 – fence boards 1×6 – 6′)
2 – 1×2 – 8′
1 1/4″ deck screws
Cutting List
Cutting List
A – 3 – 1×6 – 1′ 2 1/2″
B – 6 – 1×6 – 5 1/2″
C – 6 – 1×6 – 1′ 4″
D – 2 – 1×2 – 2′
E – 1 – 1×2 – 1′ 4″
F – 2 – 1×2 – 2′ 4 5/8″
Use a 1×6 board to cut the pieces for the planter box. Cut three pieces to 1′ 2 1/2″ (A). Cut six pieces to 5 1/2″ (B). Cut six pieces to 1′ 4″ (C).
Pre-drill all holes and assemble the three planter boxes using 1 1/4″ deck screws.
Cut two 1×2’s to 2′ long (D). Cut one 1×2 to 1′ 4″ long (E). Pre-drill all holes and assemble the back legs and leg brace as shown on illustration above using 1 1/4″ deck screws.

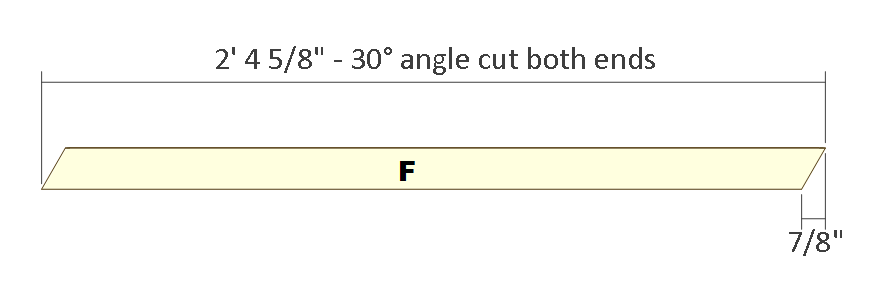

Cut two 1×2’s to 2′ 4 5/8″ long, cut 30-degree angle cuts on both ends in same direction (F).

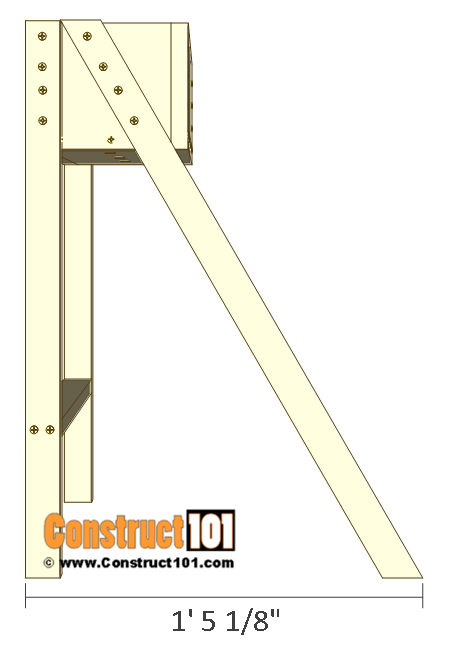

Pre-drill holes and install the front legs as shown on illustration above using 1 1/4″ deck screws.

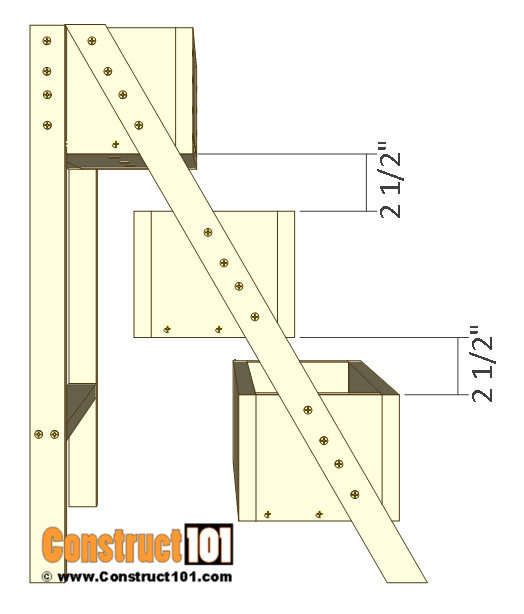

Pre-drill all holes and install the planter boxes as shown on illustration above using 1 1/4″ deck screws.
