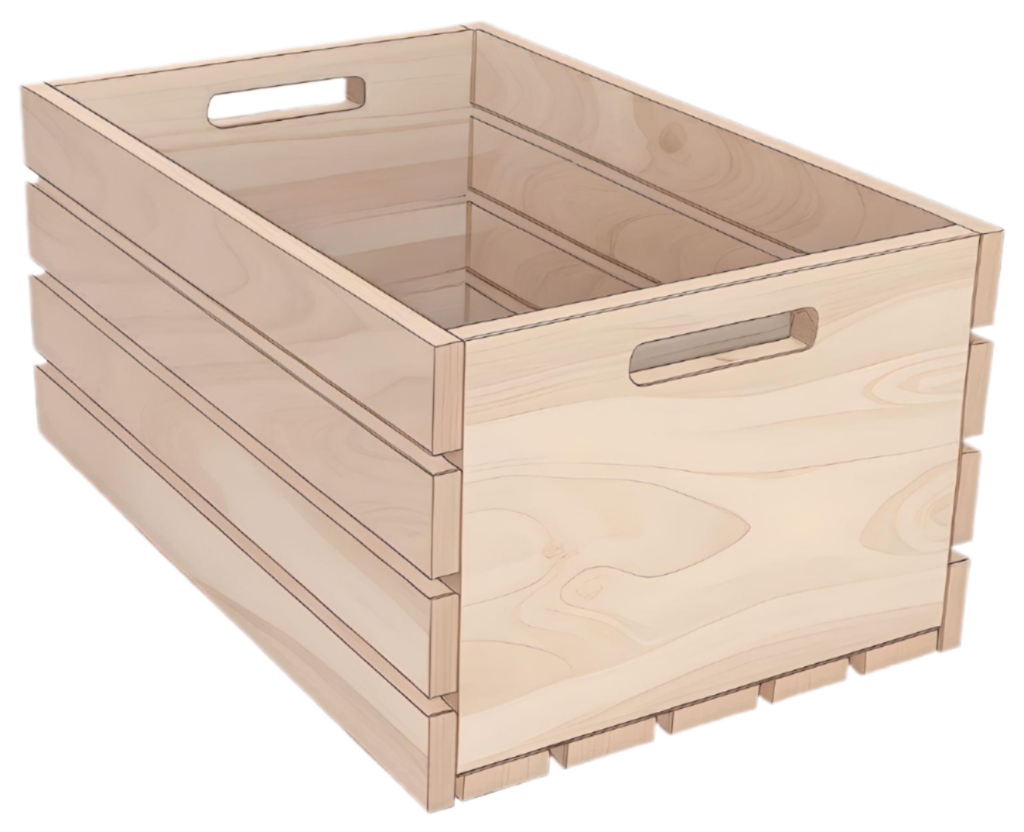

Wood Crate Plans

Wood crate plans - free DIY building projects.

Wood crate plans, plans include a free PDF download (link at bottom of blog post), material list, measurements, and step-by-step instructions with drawings.

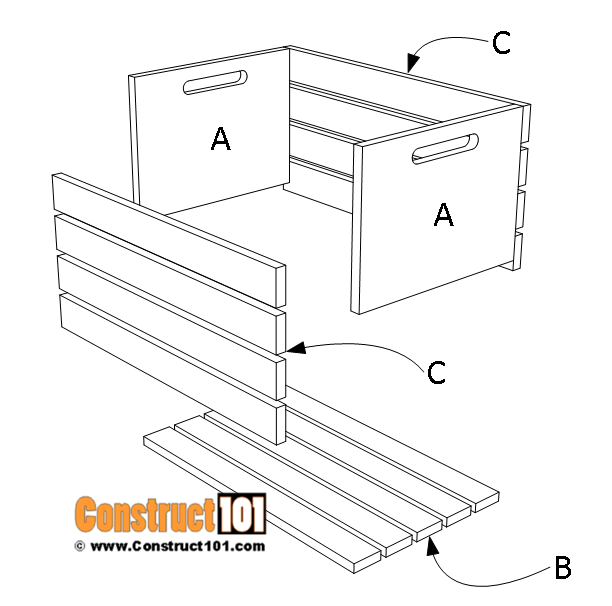

Wood Crate Plans – Overview

Wood Crate Plans – Material List

Wood crate plans - material list,

Cutting List

Part#Qty.Disc.Size
A21×1210 3/4 in. x 14 1/2 in.
B51×324 in.
C81×324 in.

Shopping List

Qty.Disc.Size
11×123/4 in. x 11 1/4 in. x 4 ft.
41×33/4 in. x 2 1/2 in. x 8 ft.
wood glue
16 gauge finish nails1 1/4 in.

Wood crate part (A).

Cut two 1×12’s to 10 3/4 in. x 14 1/2 in. (A).

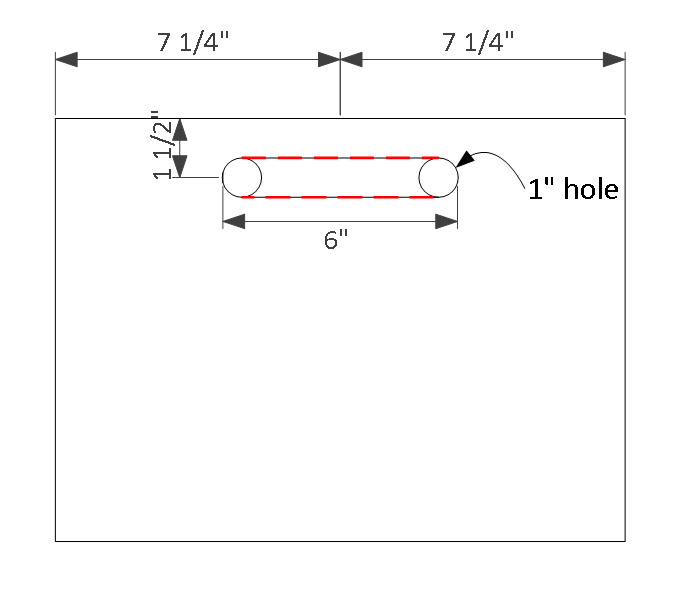

Wood crate handle cut out drawing.

Cut the handles as shown on drawing above.

Drill 1 in. holes as shown on drawing above, draw lines to connect the holes and cut using a jig saw.

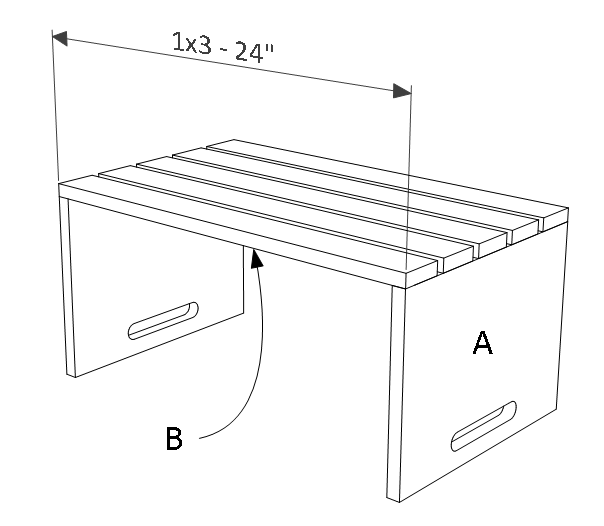

Install bottom slats, part (B).

Cut five 1×3’s to 24 in. (B).

Install as shown on drawing above using wood glue and 1 1/4 in.16 gauge finish nails.

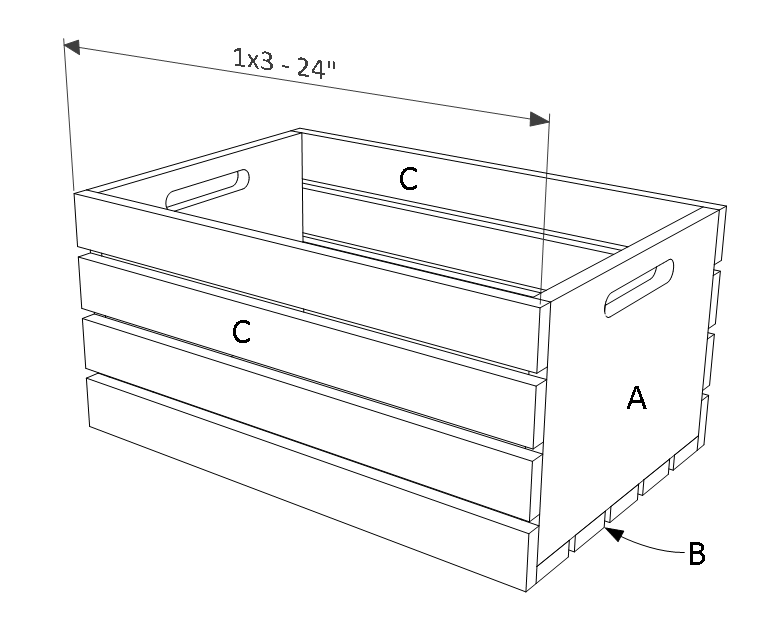

Side slats part (C).

Cut four 1×3’s to 24 in. (C).

Install as shown on drawing above using wood glue and 1 1/4 in. 16 gauge finish nails.
