Home / Outdoor Plans / Round Picnic Table Plans – Step-By-Step
Round picnic table plans, includes free PDF download, material list, and step-by-step instructions.

Round Picnic Table Plans – Step-By-Step

Round picnic table plans, plans include a free PDF download, shopping list, cutting list, and step-by-step illustrated instructions.

Round Picnic Table Plans – Material List

Shopping List

Shopping List

Table

1 – 2×2 – 8′

4 – 2×4 – 8′

4 – 2×6 – 8′

Bench (shopping list for three benches )

1 – 2×2 – 8′

3 – 2×4 – 8′

3 – 2×6 – 8′

Hardware

2 1/2″ deck screws

3″ deck screws

8 – galvanized carriage bolts, nuts, washers – 3 1/2″

Cutting List

Cutting List

Table

A – 4 – 2×4 – 44 1/4″ (45 degree angle cuts on all ends in same direction)

B – 1 – 2×4 – 18″

C – 2 – 2×4 – 41 3/4″

D – 8 – 2×6 – 45 3/4″ (cut to size)

E – 1 – 2×2 – 41 3/4″

F – 4 – 2×2 – 11 11/16″ (45 degree angle cuts on all ends in opposite direction)

Bench (cutting list for one bench)

A – 4 – 2×4 – 15 13/16″ (25 degree angle cut on all ends in the same direction)

B – 2 – 2×2 – 8″

C – 2 – 2×6 – 34 3/4″ (cut to size)

D – 2 – 2×4 – 13 3/4″ (45 degree angle cuts on all ends in opposite direction)

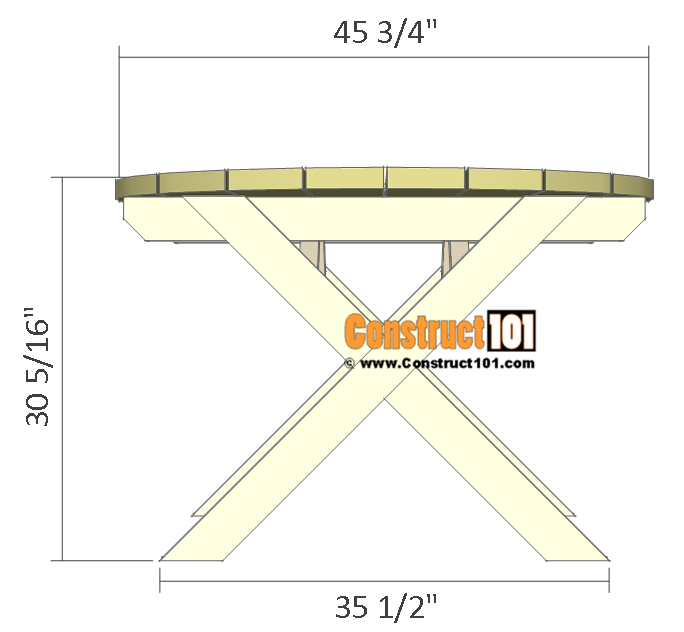

Round Picnic Table Plans – Overview

round picnic table plans material list







round picnic table plans - legs

Cut four 2×4’s to 44 1/4″ long for the legs (A). Cut 45 degree angle cuts on all ends in same direction.

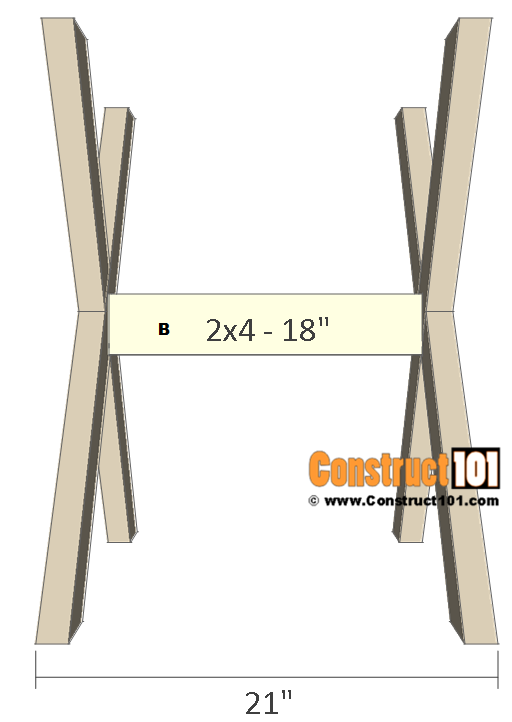

round picnic table plans - stretcher

Cut one 2×4 to 18″ long for the stretcher (B). Screw 3″ deck screws through the legs (A) and into the stretcher (B).

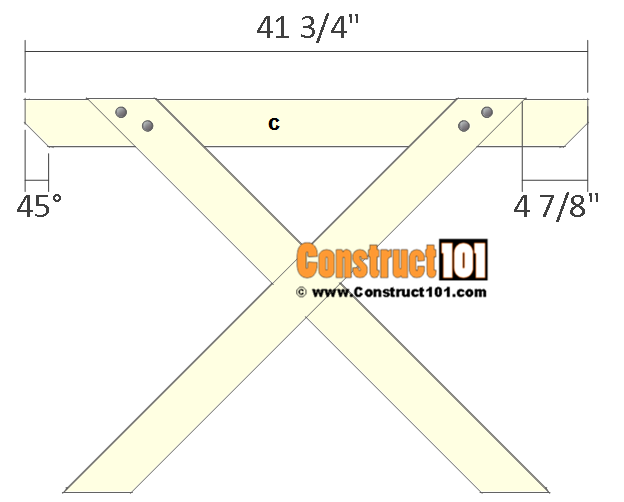

round picnic table plans - apron

Cut two 2×4’s to 41 3/4″ long for the for the table apron, cut the ends as shown on illustration above (C). Attach as shown on illustration above, pre-drill holes and attach with 3 1/2″ galvanized carriage bolts.





round picnic table plans - table top planks

Cut the 2×6 table top planks (D) as shown on illustration above. The easiest way to draw and cut out the circle is by using trammels.  Drill pilot holes and screw 3″ deck screws through the table planks (D) and into the apron (C).





round picnic table plans - brace

Cut one 2×2 to 41 3/4″ long for the table brace (E). Cut two 2×2’s to 11 11/16″ long for the table brace (F), cut 45 degree angle cuts on all ends in opposite directions. Install as shown on illustration above using 2 1/2″ deck screws.





Round Picnic Table Plans – Bench

round picnic table plans - bench parts

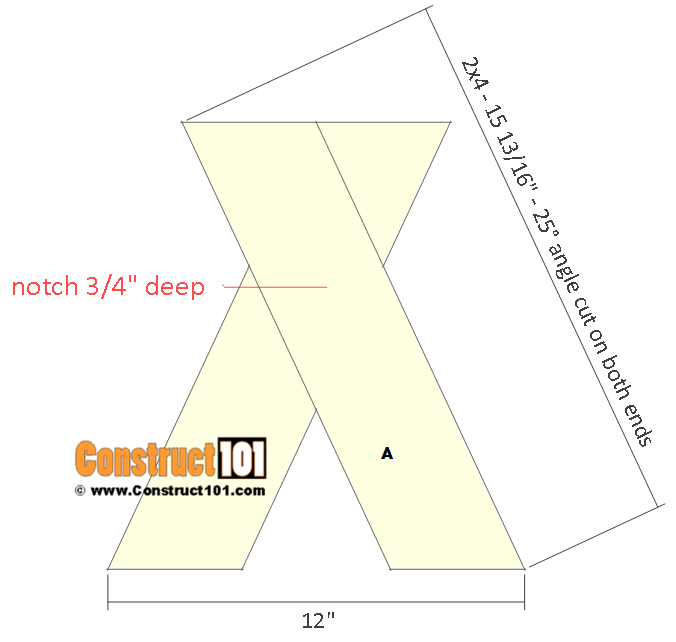

round picnic table plans - bench leg

Cut four 2×4’s to 15 13/16″ long for the bench legs (A). Cut the ends at 25 degree angle cut on both ends in the same direction. Drill pilot holes and use 2 1/2″ deck screws to attach the legs together.

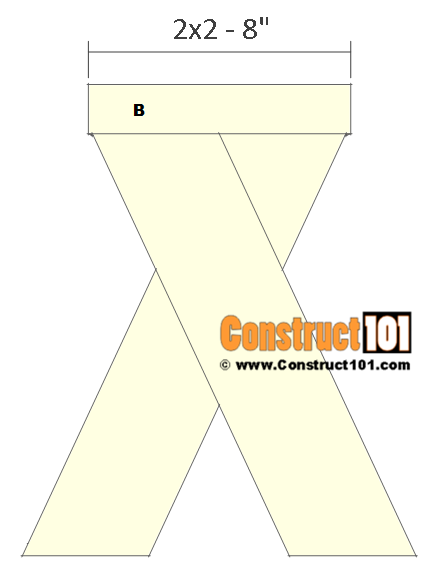

round picnic table plans - bench cleat

Cut two 2×2’s to 8″ long for the cleat (B). Install as shown above using 3″ deck screws. Drill pilot holes, screw through the cleat (B) and into the bench legs (A).

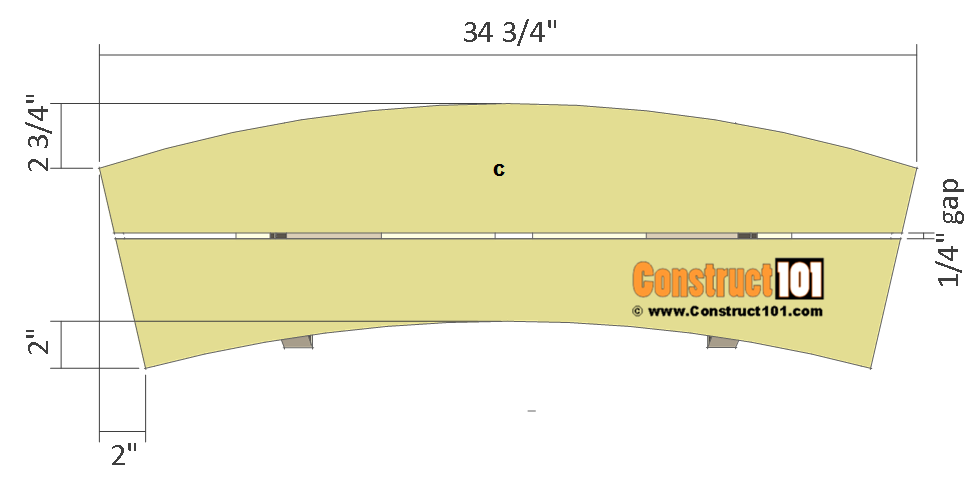

round picnic table plans - bench plank

Cut the 2×6 bench seat planks (C) as shown on illustration above. Drill pilot holes and screw 3″ deck screws through the planks (C) and into the cleat (B).

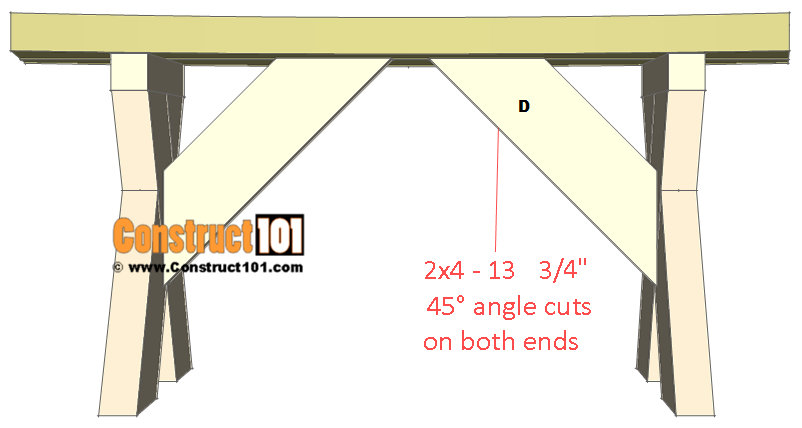

round picnic table plans - bench brace



Cut two 2×4’s to 13 3/4″ long for the bench brace (D),all the ends will have 45 degree angle cuts in opposite directions. Drill pilot holes and attach as shown on illustration above using 2 1/2″ deck screws.

Like these round picnic table plans? Let me know, leave me a comment below. Share this link with your friends and your social media, thanks.
Construct101 offers free online version plans. These free plans also have a free print friendly PDF downloadable version free of ads. Click here to download.
