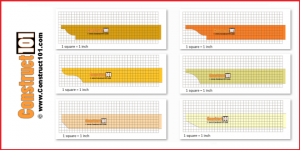

Pergola End Rafter Tails | Rafter Tail Designs

Pergola end rafter tail designs - free PDF at Construct101.

Here are several designs for cutting the ends on the rafter ends of the pergola.


DIY 8×8 Pergola

8x8 pergola plans, free PDF download.

DIY small simple to build 8 feet by 8 feet pergola.

Great focal point for any small area.


10×10 Pergola Plans

10x10 pergola plans - free PDF download at Construct101.

This DIY pergola measures 10 ft. x 10 ft. This pergola is not so big and not so small, can be the perfect fit for your area.


10×12 Pergola Plans

10x12 pergola plans - free PDF download, material list, and drawings, DIY projects at Construct101

Rectangular design DIY pergola measure 10 ft. x 12 ft.


12×12 Pergola Plans

12x12 pergola plans - Free PDF download, material list, and drawings, at Construct101

DIY pergola measures 12 ft. x 12 ft. Plans include drawings, measurements, and PDF.


12×16 Pergola Plans

12x16 pergola plans, free PDF download.

Build it yourself rectangular 12×16 pergola. This large pergola provides plenty of space for benches and tables.


DIY 10×10 Pergola

DIY Pergola Plans – Material List

Shopping List

Shopping List

4 – 6×6 – 12′

11 – 2×6 – 12′

4 – 2×6 – 10′

11 – 2×2 – 12′

3 1/2″ deck screws

Cutting List

Cutting List

4 – 6×6 -12′

11 – 2×6 – 12′

8 – 2×6 – 4′ 4 3/4″

11 – 2×2 – 12′

DIY Pergola Plans – Overview

simple DIY pergola plans overview

The pergola measures 10’x10′ on the bottom and 12’x12′ on the top.

simple DIY pergola plans material list

DIY Pergola Plans – Assembly

step 1 simple DIY pergola plans

Measure a 10’x10′ area making sure it is squared by measuring diagonally in both directions.

Use 12′ long 6×6 poles (A) with 2′ in the ground with concrete as shown in illustration above. If you are using anchors on the poles use 10′ 6×6 poles.

Use a level to make sure all the poles are leveled.

Once the poles are set make sure all the poles are the same height, you can use a string level for this. Cut poles if needed to get them level.

The top edges on the pole can be cut for a nicer appearance, illustration above shows the edges cut at a 45 degree.

simple DIY pergola plans support beams

Use four 12′ long 2×6’s for the support beams (B), cut the ends as shown on illustration above.

step 2 simple DIY pergola plans

Install the support beams (B) as shown on illustration above, use clamps to hold the support beams in place, secure with 3 1/2″ deck screws.

simple DIY pergola plans crossbeams

Use seven 12′ long 2×6’s for the crossbeams (C), cut the ends as shown on illustration above.

step 3 simple DIY pergola plans

Lay the crossbeams (C) in place and mark were the 3″ notch will go. Secure the crossbeams using 3 1/2″ deck screws.

step 4 simple DIY pergola plans

Use eleven 12′ long 2×2’s for the slats. The ends can be cut for a nicer appearance, illustration above shows end cut at 45 degree. Use 3 1/2″ deck screws to secure the slats.

pergola 2x6 brace

Cut eight 2×6’s to 4′ 4 3/4″ for the brace (E), cut as shown on illustration above.

step 5 simple DIY pergola plans

Install the brace (E) to the pergola using 3 1/2″ deck screws as shown on illustration above.
